4. PRACTICAL GUIDE FOR MEASUREMENTS
4-1
4. PRACTICAL GUIDE FOR MEASUREMENTS
This chapter explains the practical guide for individual measurements.
4.1 DUT Connection
4.1.1 Precautions for the Output Terminals (Front and Rear Output Terminals)
Figure 4-1 and Figure 4-2 show the internal wiring of the 6243/44.
The output terminals are cut off from the internal circuit during Standby by the Operate/Standby relay.
Only for 6243, the front output terminals and rear output terminals are connected during Standby.
NOTE: For the 6243, connect the DUT using either the front output terminals or the rear output terminals.
CAUTION: If an external power source, like a battery, is connected to both the front output terminals and rear
output terminals, a short circuit will occur internally.

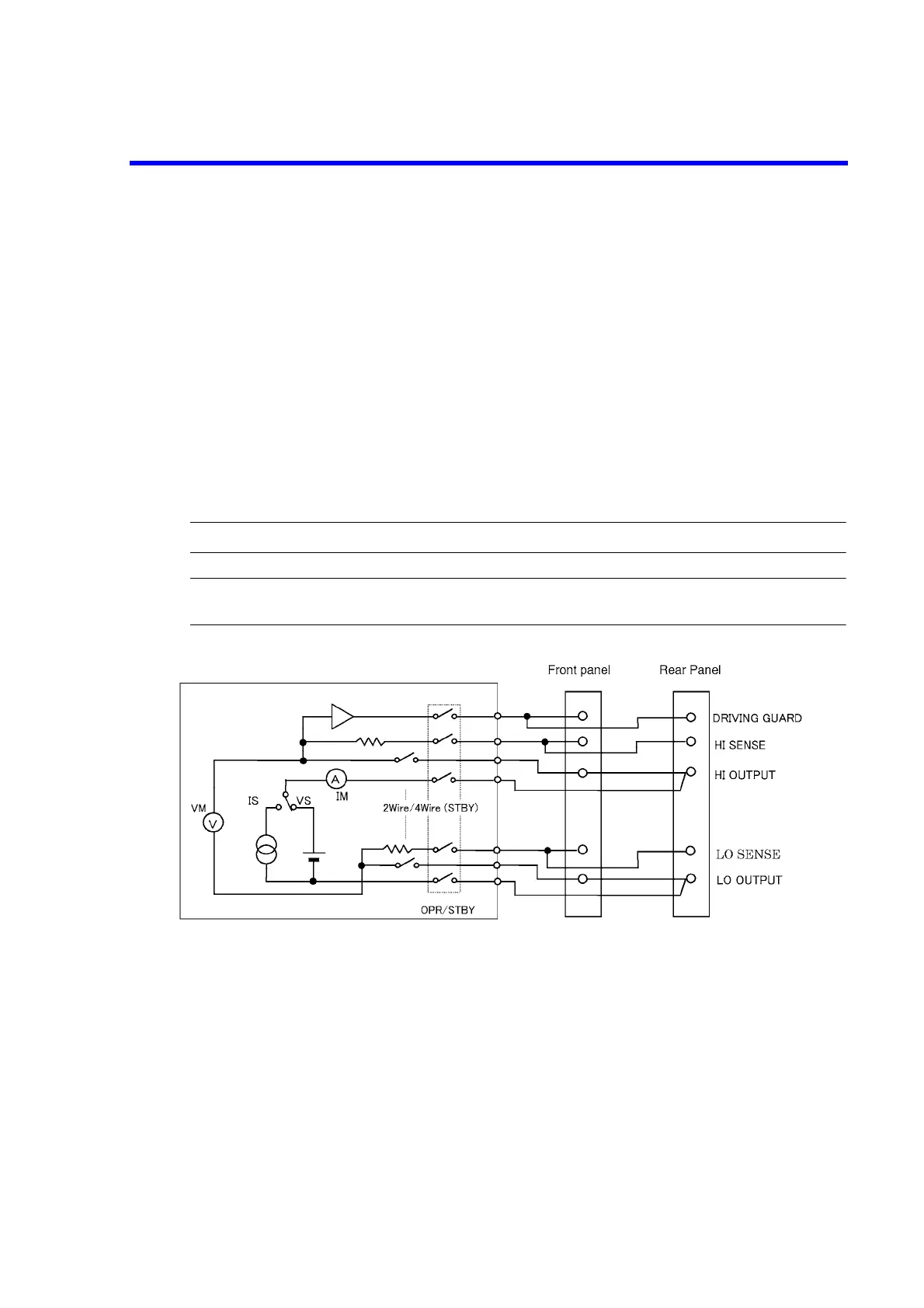

Figure 4-1 Internal Wiring (6243)
