6243/44 DC Voltage Current Source/Monitor Operation Manual
8.2.3 Connections
8-11
(5) Upon completion of warm-up, note down the date of the calibration and the date for the next sched-
uled calibration on a card or sticker, etc. for convenience.
8.2.3 Connections
Connections for Calibration shows the connections for calibration using the 6581 and a standard resistor.

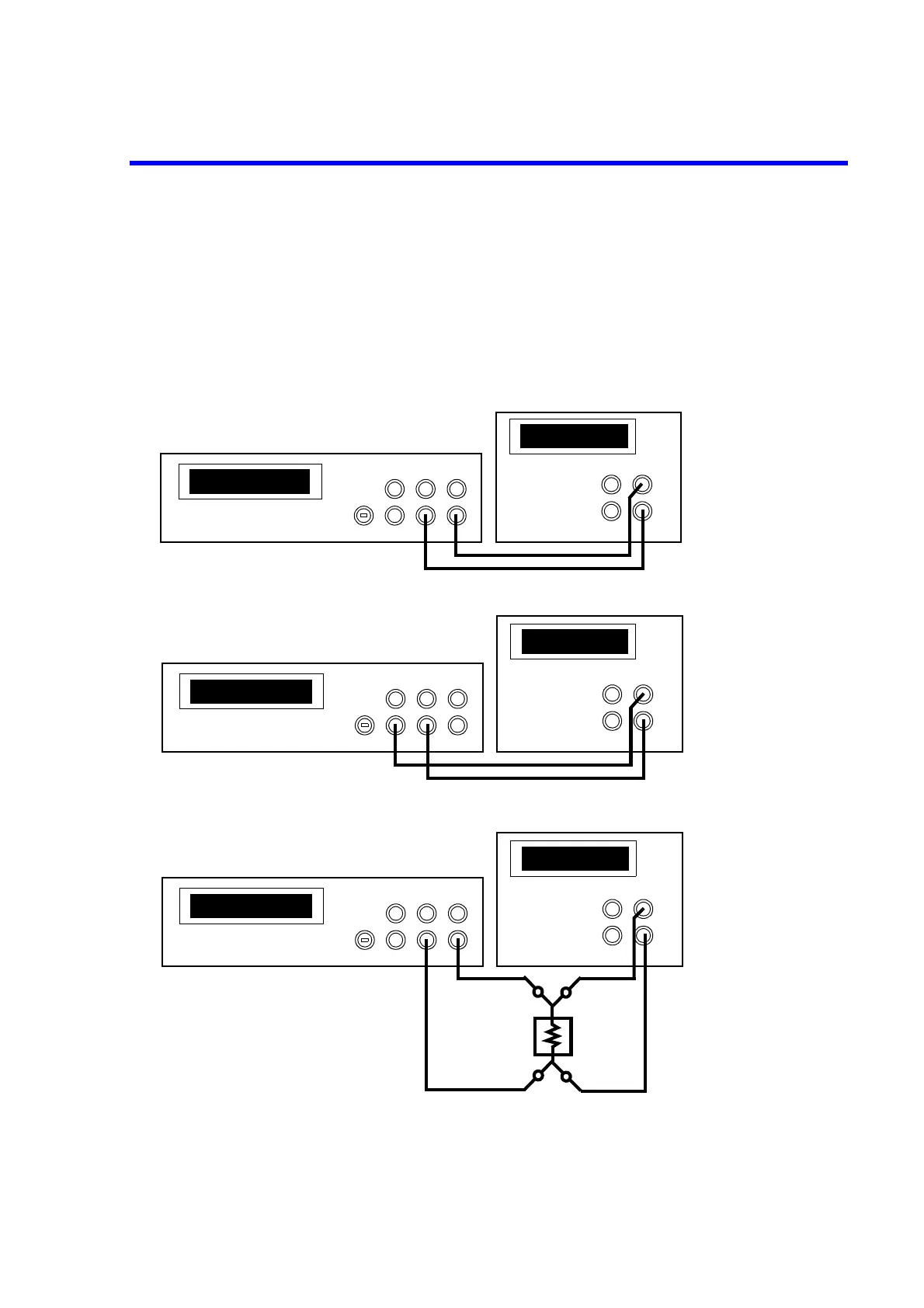

Figure 8-3 Connections for Calibration
6581
6581
(a) Connections used for confirmation and calibration of Voltage source measurement
(b) Connections used for confirmation and calibration of current source measurement
Calibration of voltage
source measurement
(All ranges)
Calibration of current
source measurement
(320 A to 320 mA range)
6581
(c) Confirmation of current source measurement and connections for calibration
* Standard resistor value for 3.2 A range calibration: 0.1
10 A range calibration: 0.01
Calibration of current
source measurement
(3.2 A, 10 A range)
*Standard
resistor
I FUSE
GUARD LO HI
DC1 DCV
I FUSE
GUARD LO HI
DC1 DCV
I FUSE
GUARD LO HI
DC1 DCV
HI
LO
SENSE OUTPUT
HI
LO
SENSE OUTPUT
HI
LO
SENSE OUTPUT
6244
6244
6244
