6243/44 DC Voltage Current Source/Monitor Operation Manual
4.4.1 Staircase Sweep
4-15
(2) Changing parameters for sweep measurement
Parameters for sweep measurement can only be changed in Standby status. However, the following
items can be changed during sweep stop in the Operate status.
• Time parameters
•Hold time
• Source Delay time
• Measure Delay time
• Period
• Pulse width
• Auto Range Delay time
• Sweep Trigger Mode
• Start address and Stop address of Random Sweep
(Within the range of the Start address and Stop address specified before operation)
• Repeat count
• Reverse Mode ON/OFF
•Bias Value
4.4.1 Staircase Sweep
Staircase sweeps, linear sweeps or log sweeps can be selected for the sweep type and one-way sweep or
round-trip sweep can be selected with Reverse ON/OFF.

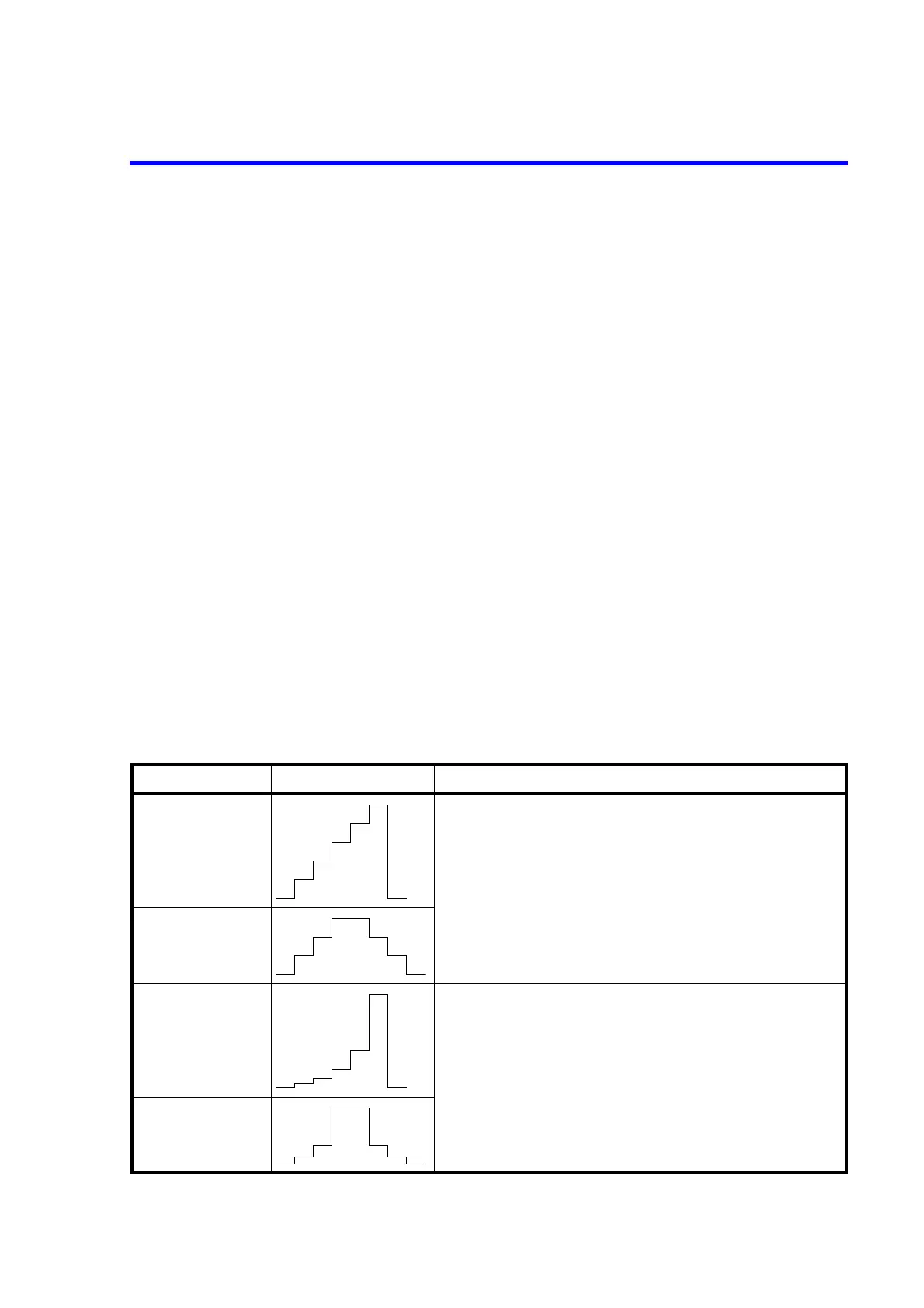

Table 4-5 Sweep Types for Staircase Sweep
Sweep type Output waveform Number of steps, No. K output value
Linear sweep
Reverse-OFF
No. K output= Start value + (K-1)  (Step value)
Number of steps= | Stop value - Start value | /Step value + 1
(Maximum 5000)
Linear sweep
Reverse-ON
Log sweep
Reverse-OFF
No. K output = (Start value)  10 K/n
n: Number of divisions per decade
• Start value, Stop value0
| Start value |  | Stop value |
Start value polarity = Stop value polarity
Log sweep
Reverse-ON
