6243/44 DC V
oltage Current Source/Monito
r Operation Manual
4.5.4 Po
larity Change
4-27
(2)
Sweep operation straddling p
olarities
W
i
th the exception of log sweep
s and log pulse sweep
s, the 6243/44 is
capable of sweep straddling
polarities. When
polarities are s
traddled, the step
time before s
witching is delayed
by the
polarity
switch time.

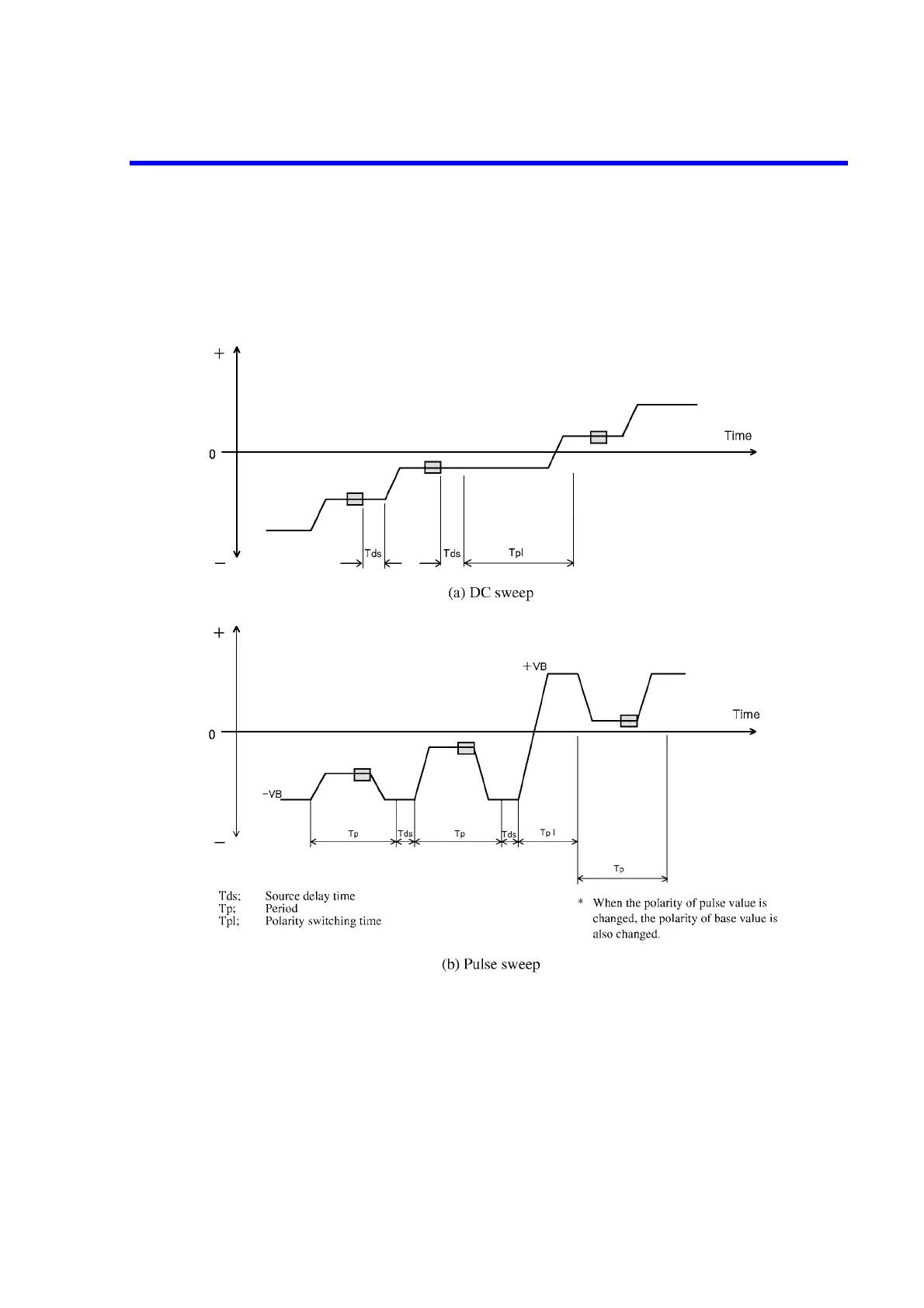

Figure 4-
15 Swe
ep Operation S
traddling Pola
rities
132
134
