6243/44 DC Voltage Current Source/Monitor Operation Manual
4.4 Operation in the Sweep Source Mode
4-14
4.4 Operation in the Sweep Source Mode
(1) Sweep source mode operation
Table 4-4 shows the operation in the sweep source mode.
Sweep always progresses from start to stop.
For linear and log sweep, when the stop value is exceeded, the stop value is output and the sweep stops.
For random sweeps, when start address  stop address, the source value stored in the start address is
output and the sweep stops.

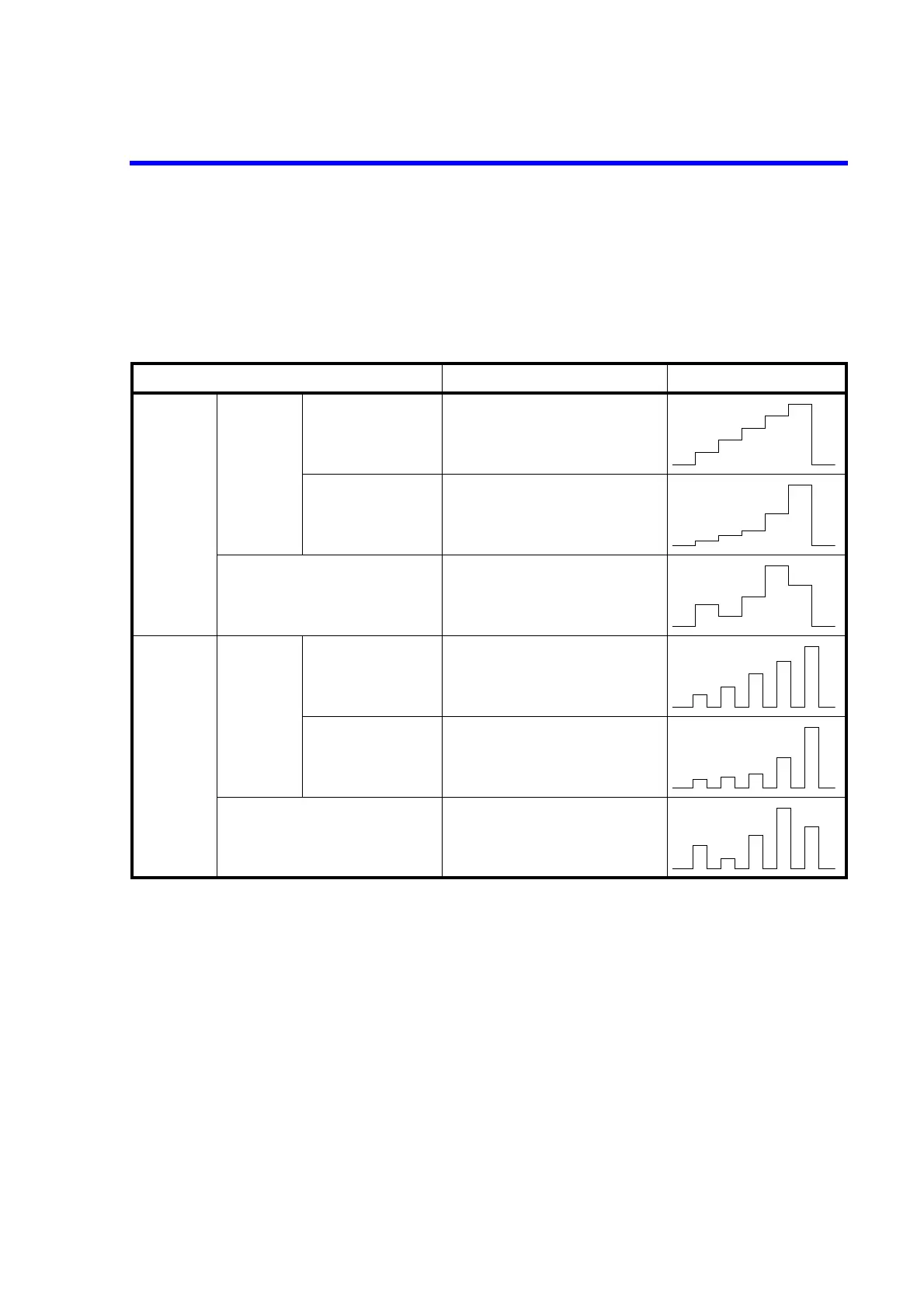

Table 4-4 Operation in the Sweep Source Mode
Sweep type Description Waveform
DC
sweep
Staircase
sweep
Linear sweep
Generates stair case wave from the
specified start value to stop value.
Log sweep
Generates a logarithmic sweep in
single decade steps from the speci-
fied start value to the stop value.
Random sweep
Generates stored sweep source
values from the specified start
value to the stop value.
Pulse sweep
Pulse sweep
Linear pulse sweep
Generates stair case pulses using
the step value from the start value
to the stop value.
Log pulse sweep
Generates logarithmic pulses in
single decade steps from the speci-
fied start value to the stop value.
Random pulse sweep
Generates stored pulse source val-
ues from the specified start value
to the stop value.
