6243/44 DC Voltage Current Source/Monitor Operation Manual
6.4.2 Data Output Format in the TR6143 Mode (Talker)
6-12
6.4.2 Data Output Format in the TR6143 Mode (Talker)

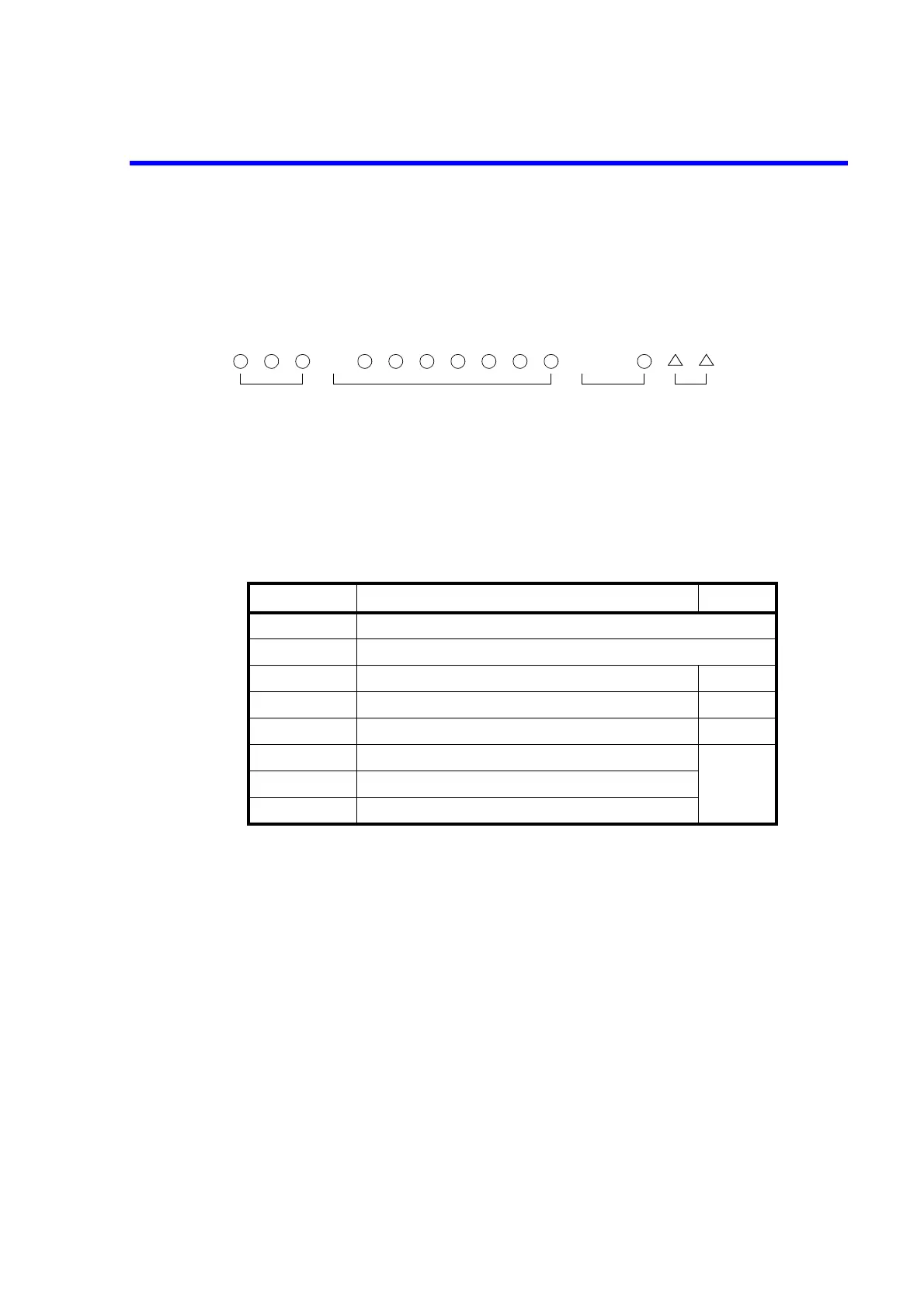

(1) Measurement data output format (ASCII)
When ASCII data output is specified for OM0 and OM1, the normal source and measurement data
and the data from the measurement data buffer memory are output in the following ASCII format.
(a) Header (Header 3 characters)
(b) Fixed-point part (Polarity + decimal point + 5 to 6-digit figure)
(c) Exponent part (E + polarity + 1-digit figure)
(d) Block delimiter
• Header
 E 
(a) (b) (c) (d)
Header Description Priority
DV Voltage source value and voltage measurement value
DI Current source value and current measurement value
OS Oscillation detection (OSC) 1
LM Limiter source (LMT) 2
OL The measurement range is exceeded (Over Range) 3
DVH/DIH The comparison operation result is HI.
4DVG/DIG The comparison operation result is GO.
DVL/DIL The comparison operation result is LO.
