1.4.2 Power Supply Conditions
1-7

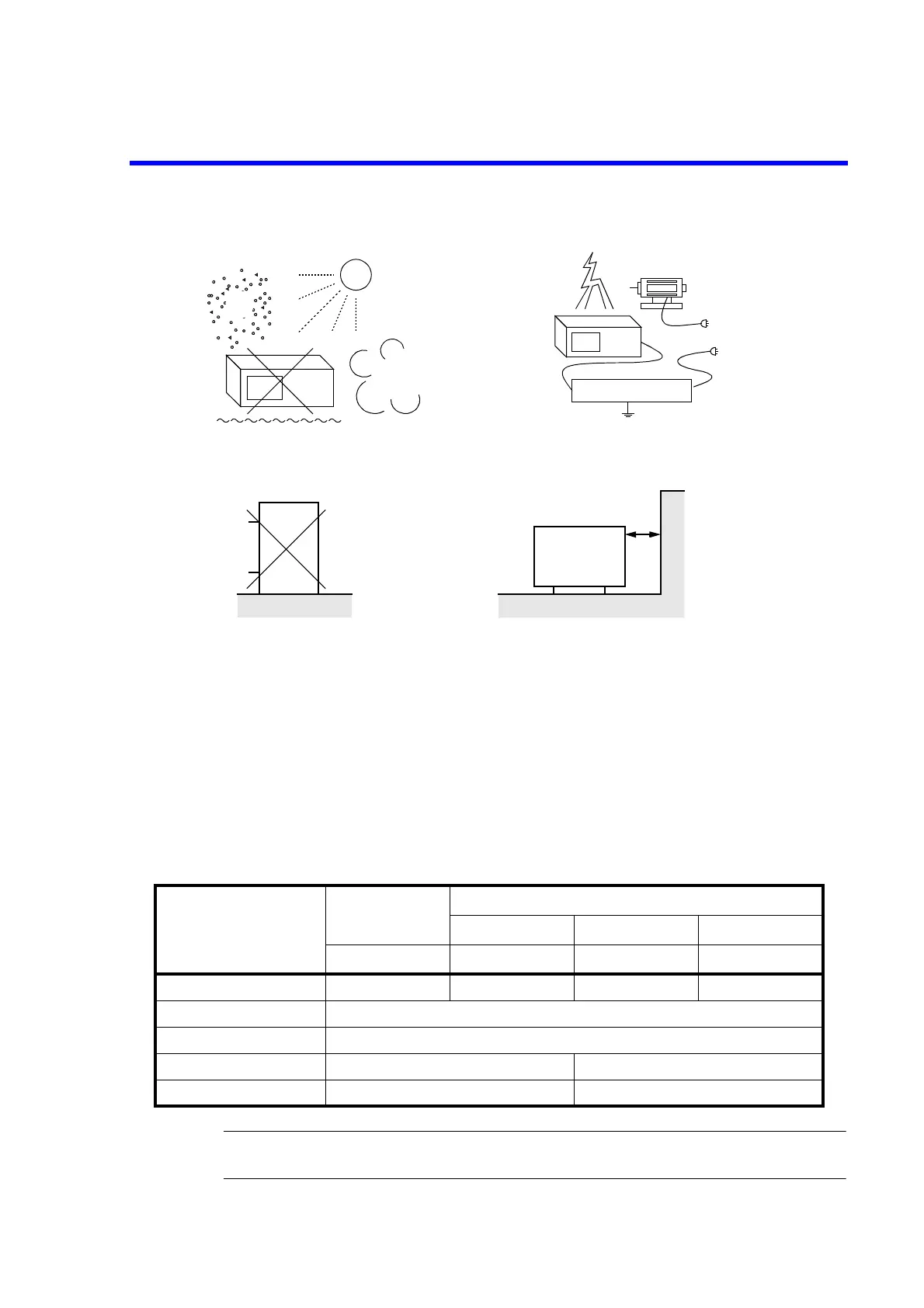

Figure 1-2 Operating Environment
1.4.2 Power Supply Conditions
The power specifications of the 6243/44 are shown in Table 1-4.
NOTE: To prevent damage to the 6243/44, do not apply an input voltage or a frequency that exceeds the
specified ranges for the 6243/44.
Table 1-4 Power Specifications
Standard model
Option
32 42 44
AC100 V AC120 V AC220 V AC240 V
Input voltage range 90 V to 110 V 103 V to 132 V 198 V to 242 V 207 V to 250 V
Frequency range 48 to 66 Hz
Power consumption 6243: 340 VA, 6244: 400 VA
Fuse (6243) T4A/250 V T2A/250 V
Fuse (6244) T5A/250 V T2.5A/250 V
• Keep the rear panel 10 centimeters away from
the wall
• Do not use the analyzer upright
turned the rear panel side down.
• Avoid operation in these areas.
• Use a noise-cut filter when there is a large
amount of noise riding on the power line.
Line Filter
Corrosive
gas
Direct sunlight
Dust
Vibration
