Dimension Drawings
Adept Cobra i600/i800 Robot User’s Guide, Rev G 95

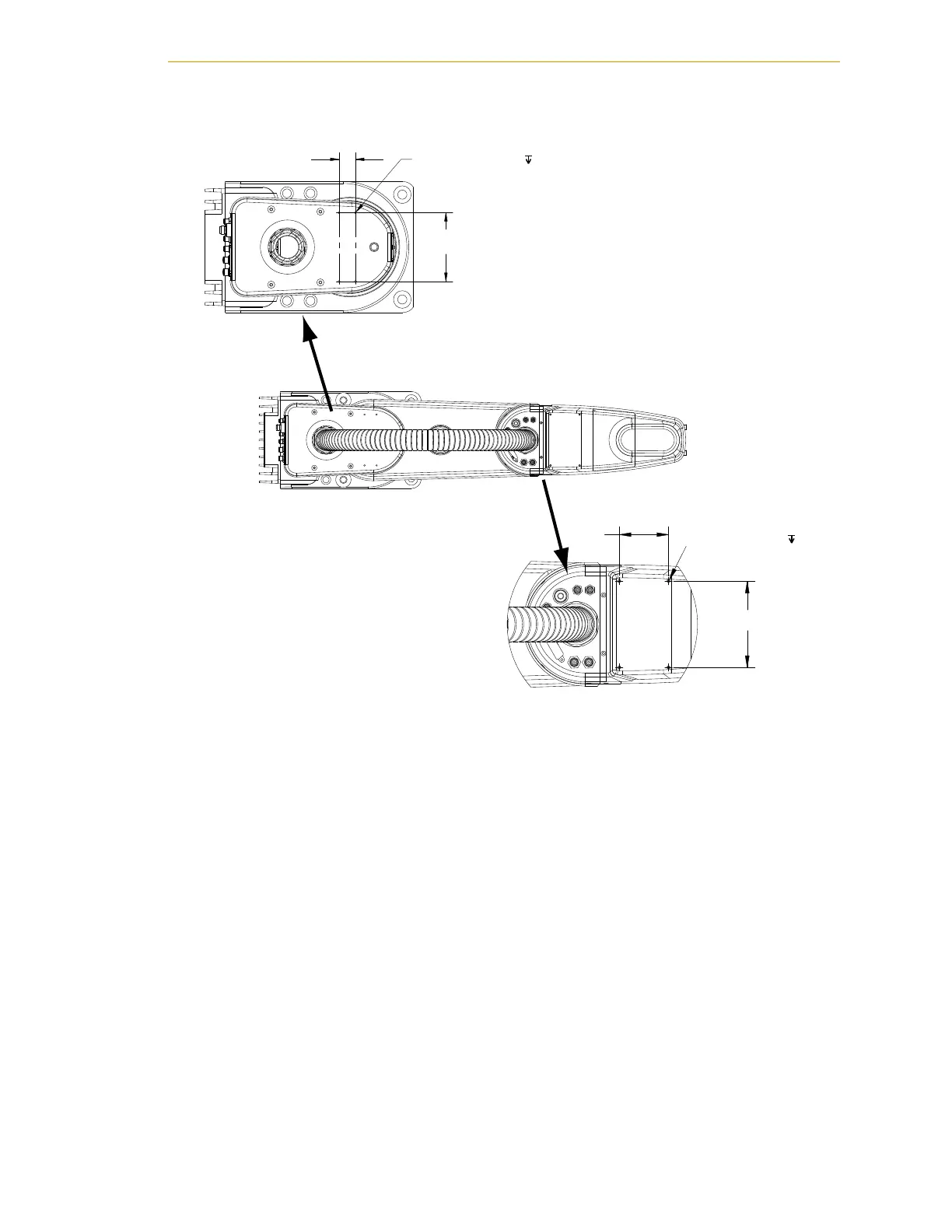

Figure 7-5. External Tooling on Top of Robot Arm
25
105
4X M4x0.7 - 6H 8
60
105
4X M4x0.7 - 6H 6
Inner Link
External Mounting
Locations
Outer Link
External Mounting
Locations
