Ados T060E - T060 E Power Supply Connection; T060 E Power Connection (110-230 V; 24-48 V); T060 E Power Connection (12-24 V)

1569‐PT060EE1 Rev.7 Page16of62

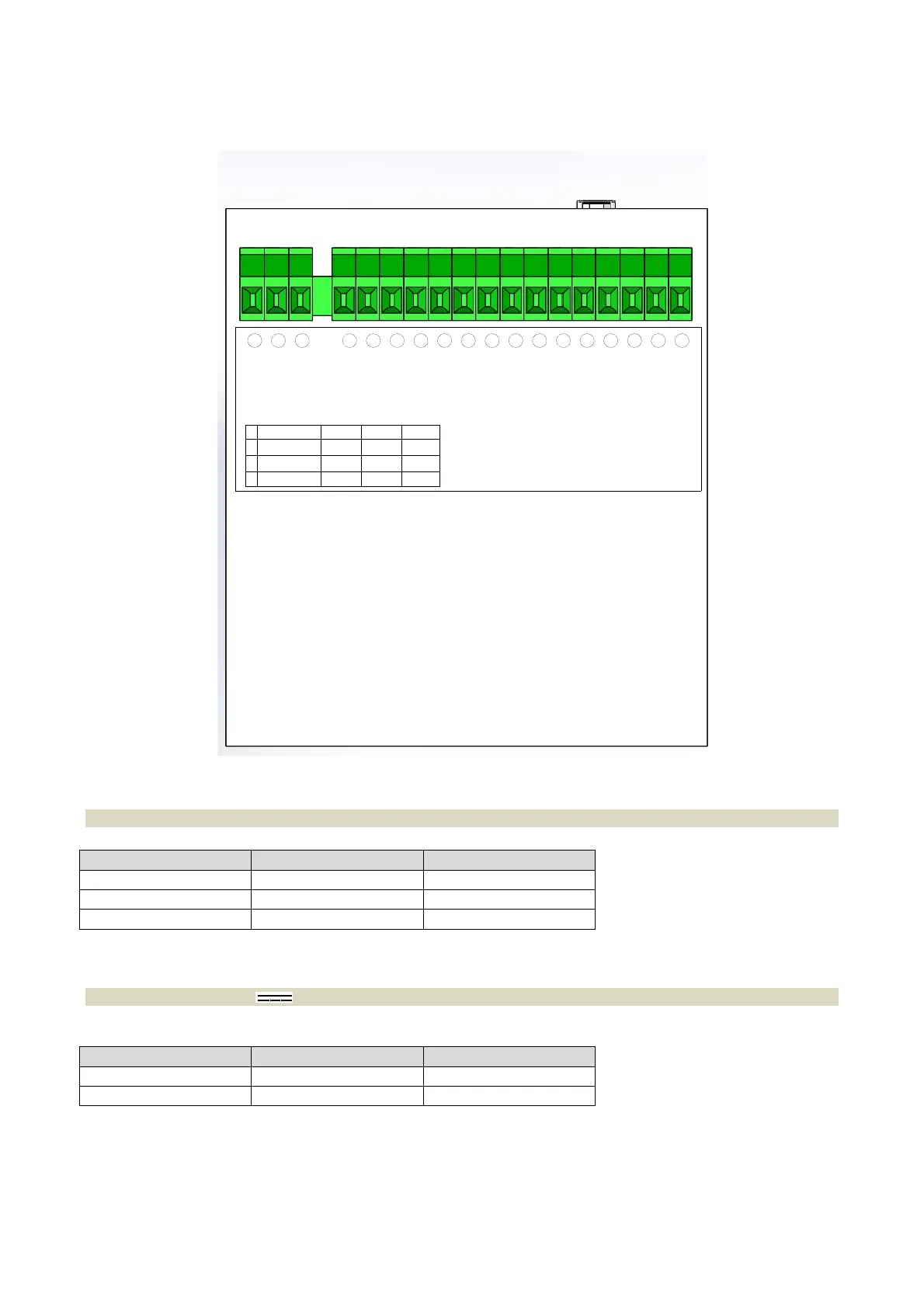

3.6 Connection to power supply (side B)
3.6.1 Version 110÷230V~ 24-48V~
INDICATION FUNCTION TERMINAL
N Neutral 2
L Line 1
E Ground 3

Connecttheinstrument’ssafetygroundterminaltothesystem’sgroundbarthroughflexiblecable.
3.6.2 Version 12÷24V
INDICATION FUNCTION TERMINAL
+ +12÷24 1
‐ 0 2

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
OUT 1 OUT 4 OUT 2 OUT 1 OUT 2 OUT 4 OUT 3 OUT 3
G SAFETY OUT
V SAFETY OUT
OUT 5 OUT 5
INP 2 INP 1
C INP
100-240VAC
1
24VAC 48VAC
LL
NN
EE
2
3
24VDC
-
+L
E
N
