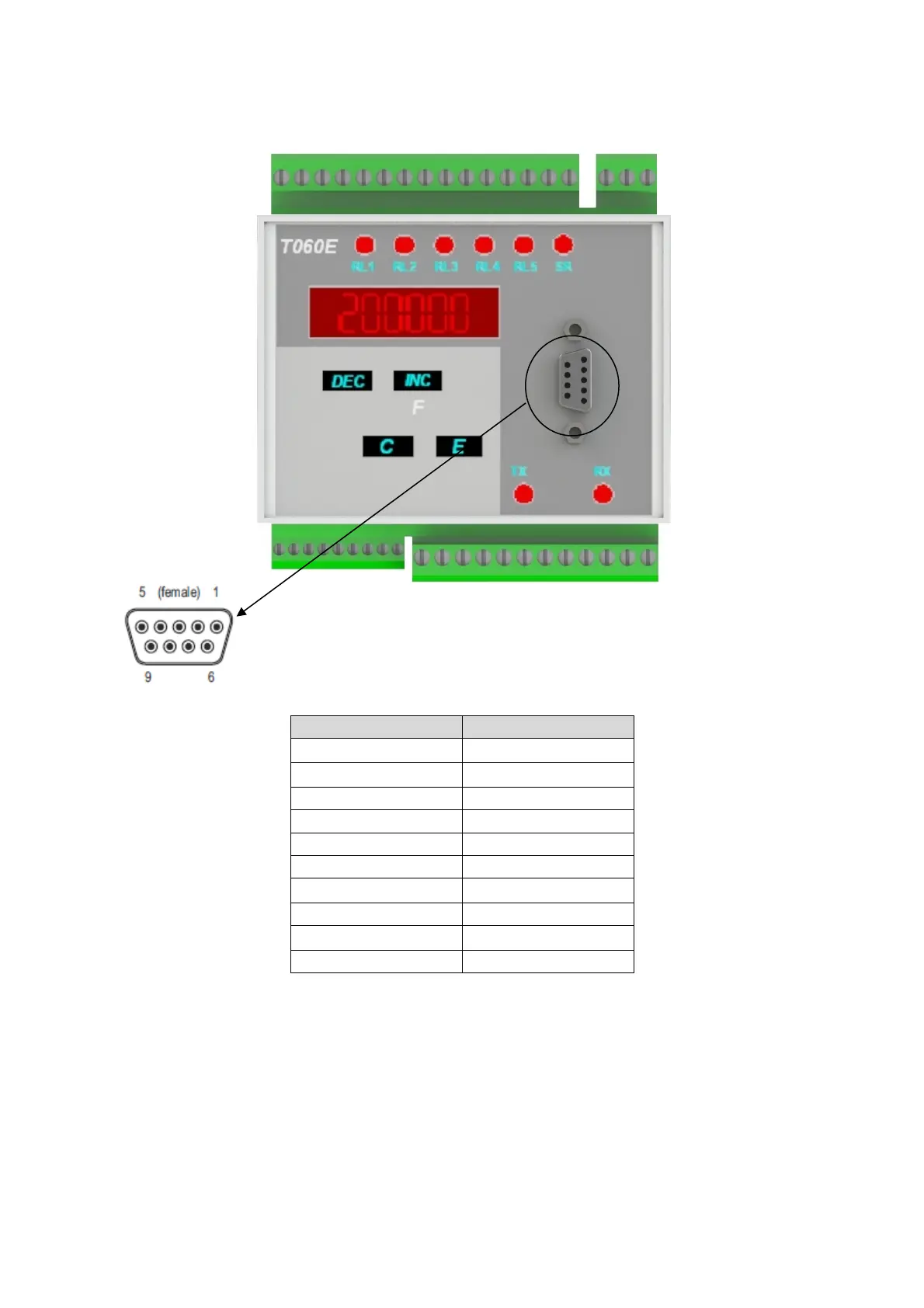

3.12 PROFIBUS DP output (optional)



PIN SIGNAL

1



2



3 B‐LINE

4 RTS

5 GNDBUS

6 +5VBUS(100mAmax)

7



8 A‐LINE

9



HOUSING SHIELD


