4-18 ADS TRITON+
®
Manual
Editing the Advanced Device - Diagnostic Tab

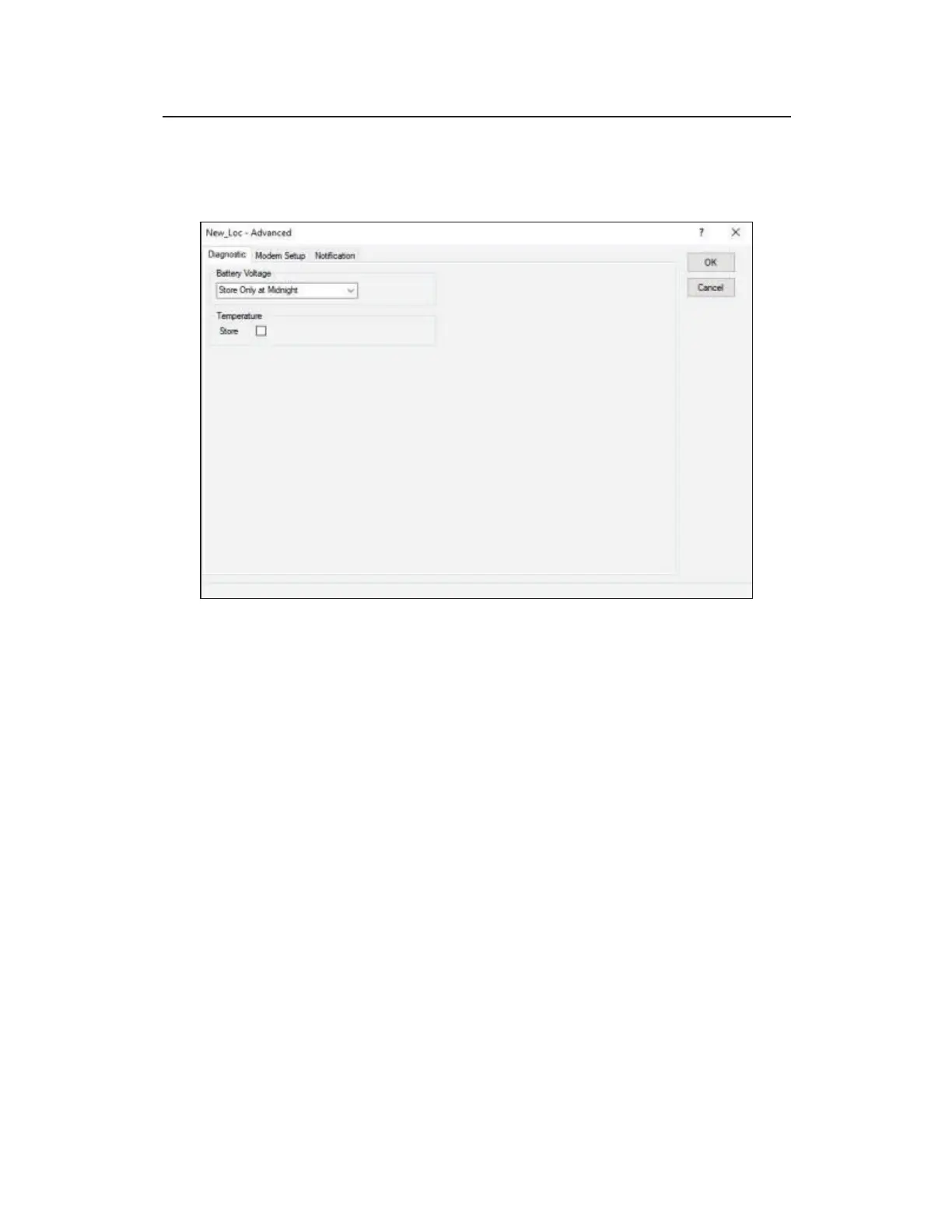

Advanced Device – Diagnostic tab
Edit the parameters of the Diagnostic tab using the
following information:
z Battery Voltage Select the frequency in which to store the
monitor battery voltage readings.
Store Only at Midnight Select this option to store the
monitor’s battery voltage at midnight. This option is
selected by default and should be sufficient for most
applications.
Store Every Reading Select this option to store the
monitor’s battery voltage at the monitor’s configured
sample rate.
z Temperature Select the Store checkbox to store internal
temperature, TEMP, at the monitor’s configured sample rate.
