5-84 ADS TRITON+ Manual
Note: Manhole and sewer system work involves confined
space entry and is inherently dangerous. Therefore,
installers and technicians must comply with all federal,
state, and municipal regulations concerning confined space
entry. ADS is not responsible for any injuries, damages,
claims, or liability resulting directly or indirectly from the
use of this installation guide or the installation of any ADS
equipment.
1. Determine which wall, upstream or downstream the Wall
Mount Bracket will be installed on.
2. Mark a spot approiximately one inch (25.4 mm) above the
crown of the pipe that is centered over manhole invert. This is
where the lower tab of the Wall Mount Bracket will be placed.

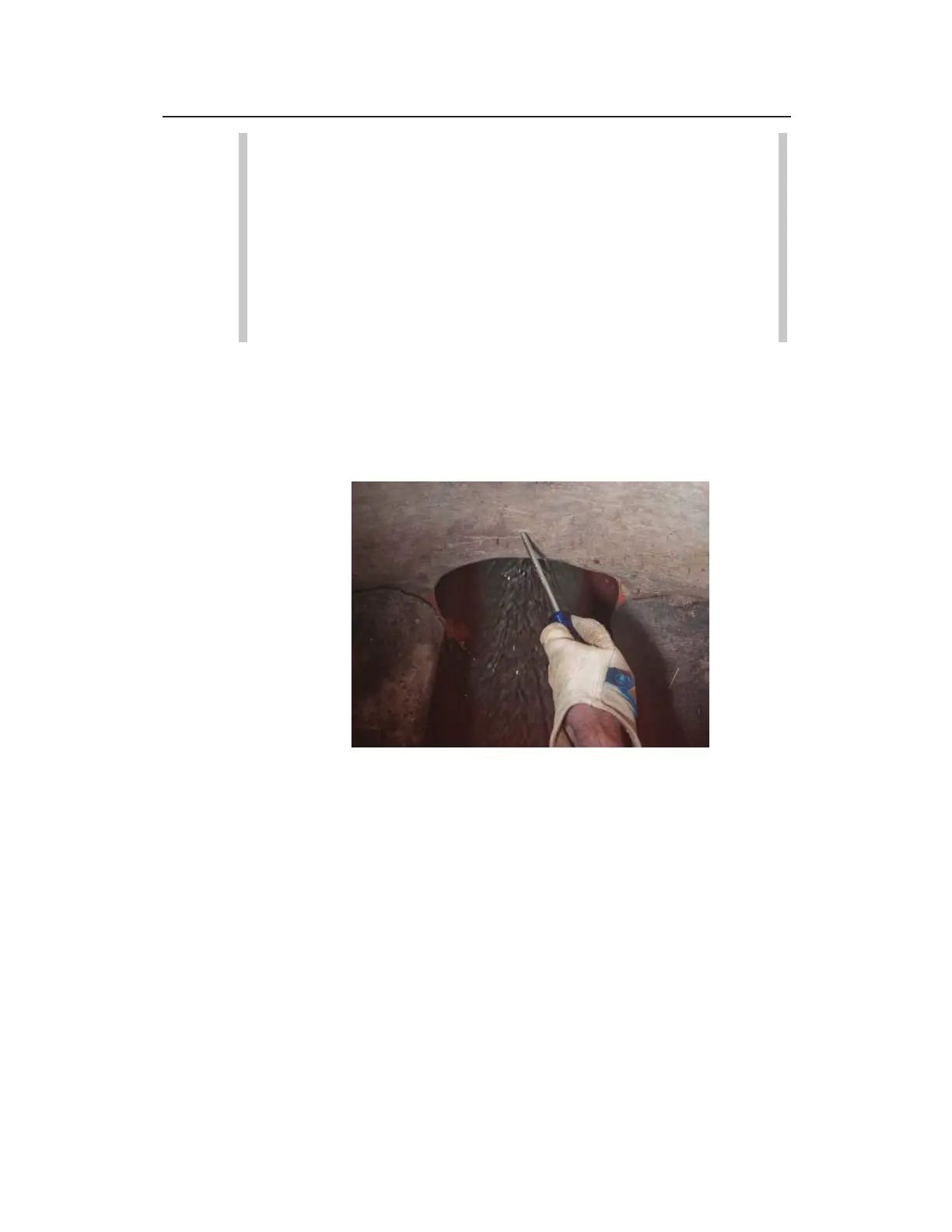

Mark Lower Tab Position for Mounting Bracket
3. Drill a hole using the hammer drill and the ½” masonry bit.
4. Hammer the Lag Bolt into place.
5. Place the lower tab of the Wall Mount Bracket on the Lag Bolt
and finger-tighten a washer and nut to loosely hold it in place.
To Next Page
