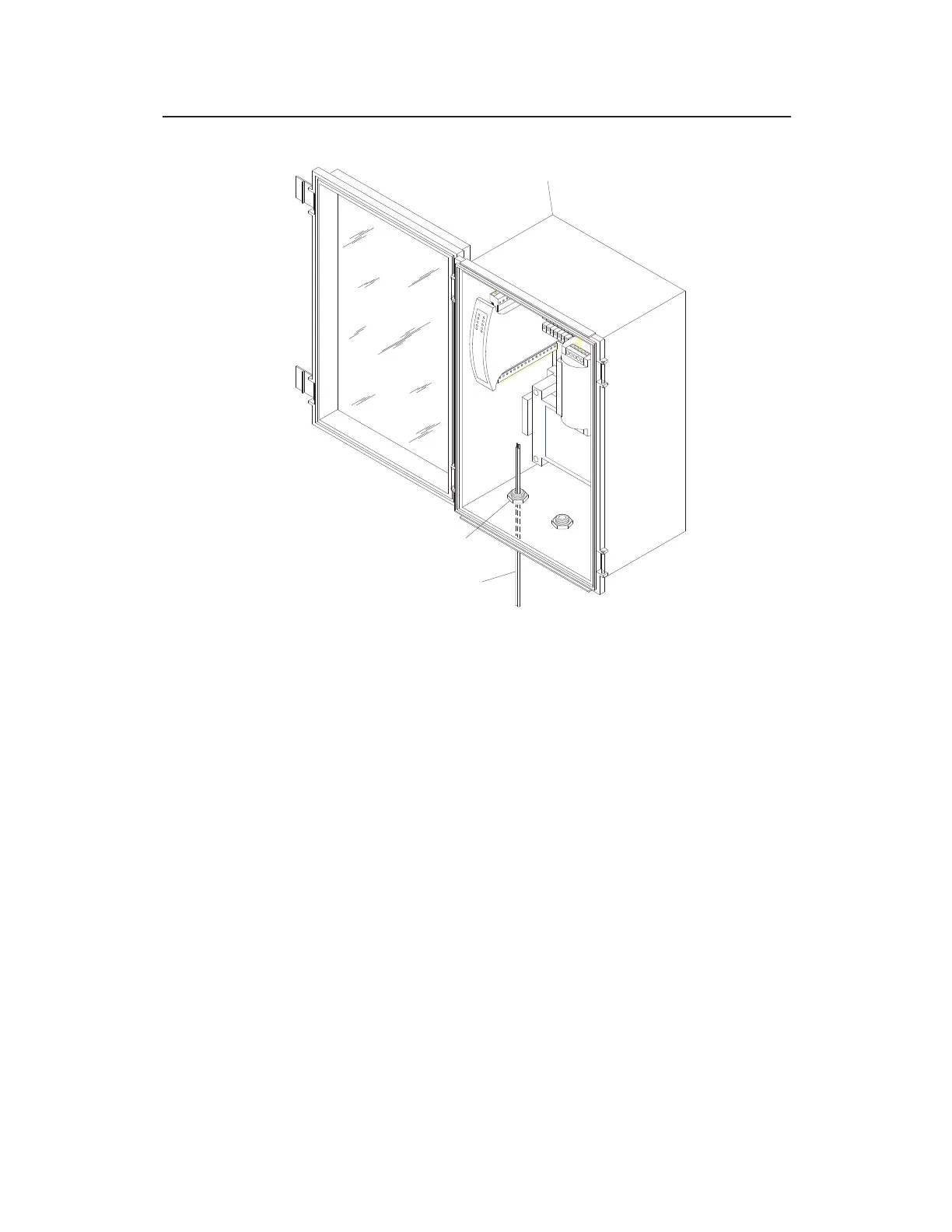

Feeding wires up through left cable gland in XIO
 Insert one of the stripped ends of the positive wire into the
hole corresponding to terminal 5 (or 7) on the I/O terminal
block in the XIO.
 Insert one of the stripped ends of the negative wire into the
hole corresponding to terminal 6 (or 8) on the I/O terminal
block in the XIO.
XIO MODULE
CABLE GLAND
2 WIRES
