Hybrid Standalone NVR User Guide 3 Local Menu Operations

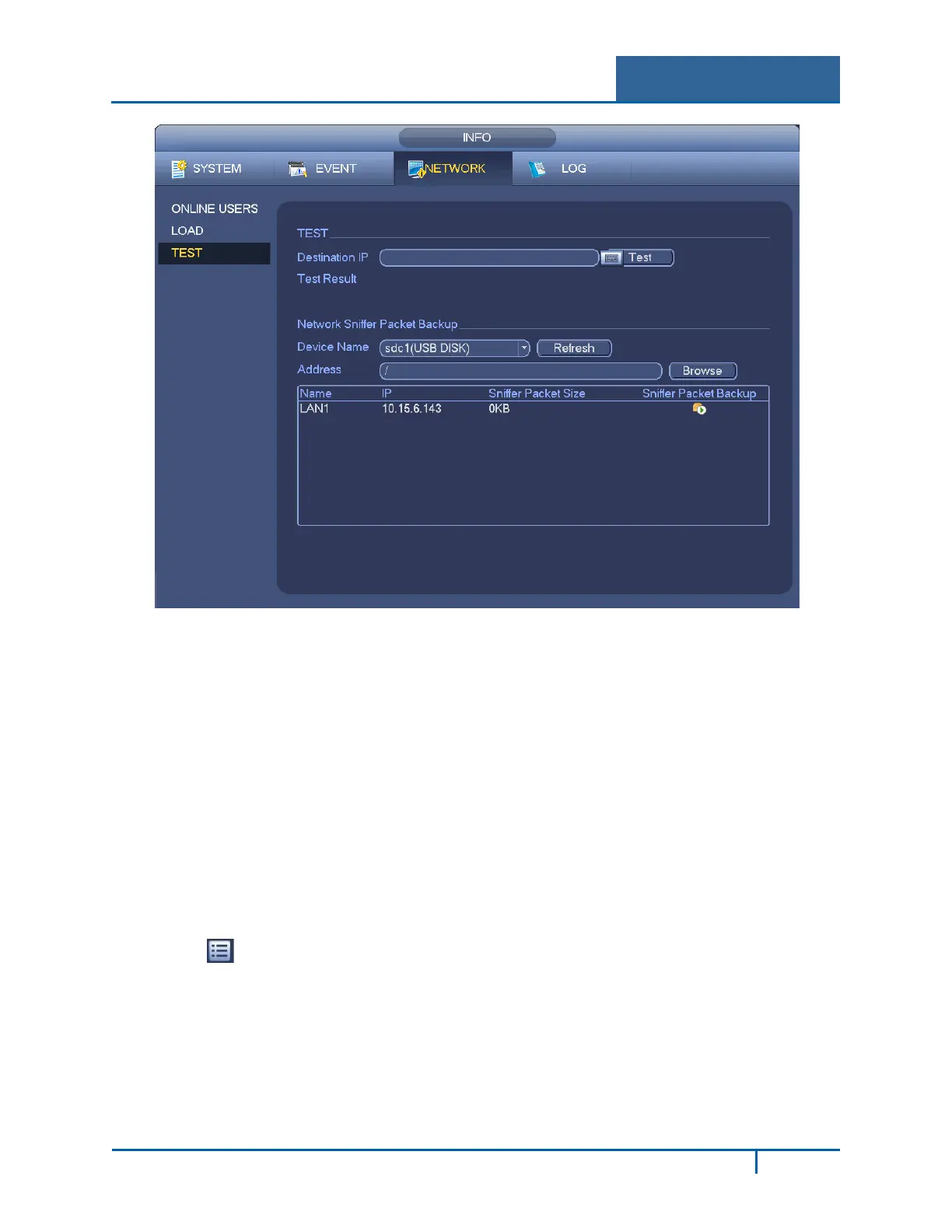

Figure 3-89
3.7.8 Log
The Log screen enables you to view system log files. Log types include system operation, system
configuration, data management, alarm event, record operation, log clear and file operation.
1. In the main menu, select Log from the Info screen to open.
2. Select the Log Type and then set the Start Time and End Time.
3. Click the Search button to view log time and event information.
The log files are displayed in a list. The system displays a maximum of 100 logs in one page
and can save a maximum of 1024 log files. Use the page up/down button in the dialog or on
the front panel to view more.
4. Click to view detailed log information.
5. Select the log items you want to save, and then click the Backup button.
6. Click Start to backup.
After the backup, a folder named Log_time appears in the backup path. Double click the
folder to view the log file.
NVR4200 Series User Guide
116
