1 NVR Overview
1 NVR Overview
This chapter provides information about front panel and rear panel.
1.1 Front Panel

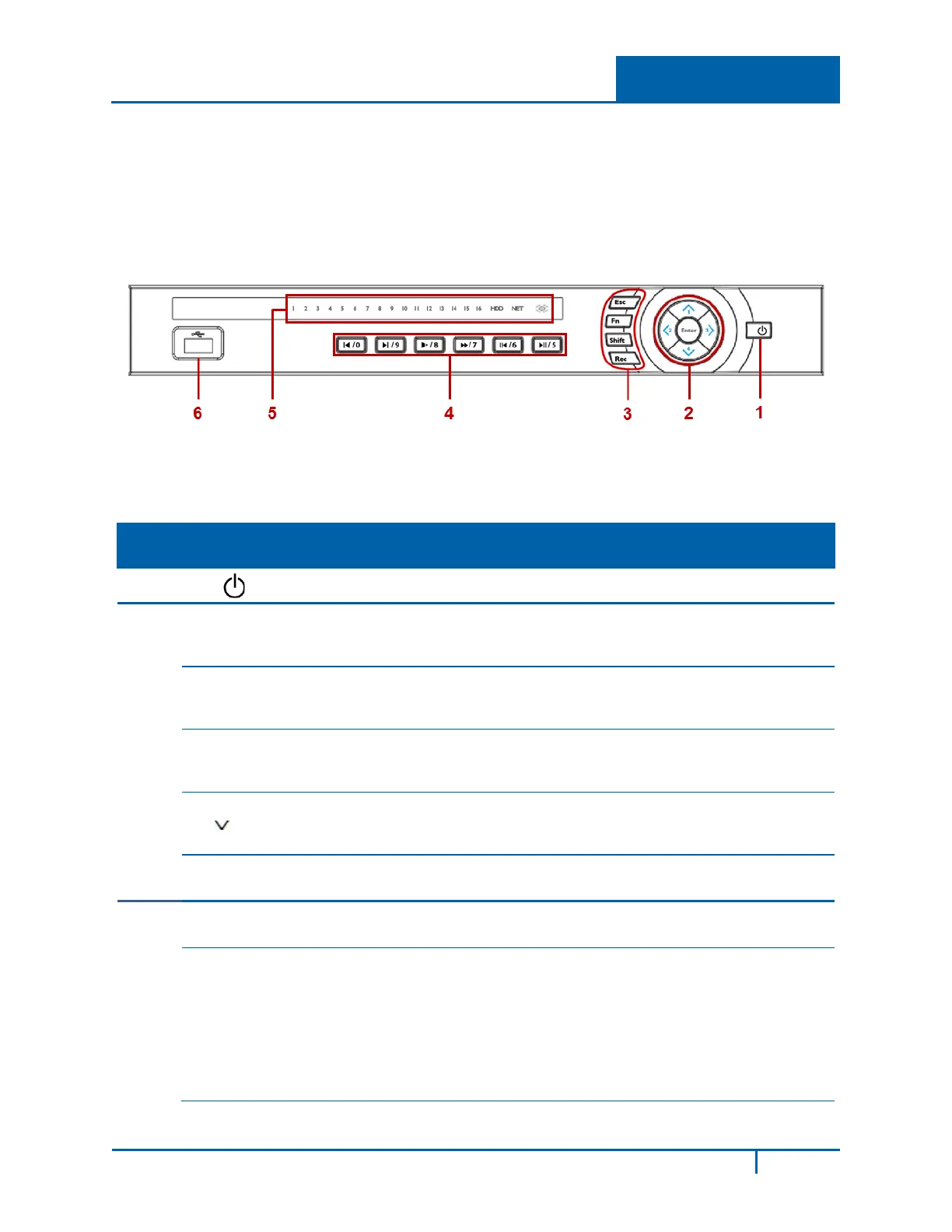

The front panel is shown in Figure 1-1.
Figure 1-1
Refer to the following table for detailed information.
Group
No.
Symbol Function
1
Power. Press and hold for three seconds to power up or shut down the NVR.
2
^
/ 1
Up arrow: Press to move the selection in the currently-active control up or to
increase the numeric value.
1: In text mode, press to enter the value 1.
<
/ 2
Left arrow: Press to move the selection in the currently-active control left.
During playback, click to control the playback bar.
2: In text mode, press to enter the value 2.
>
/ 3
Right arrow: Press to move the selection in the currently-active control right.
During playback, click to control the playback bar.
3: In text mode, press to enter the value 3.
/ 4
Down arrow: Press to move the selection in the currently-active control down
or to decrease the numeric value.
4: In text mode, press to enter the value 4.
Enter
Enter. Use to confirm the current operation, return to the default button or
select a menu item.
3
Esc
Escape. Return to the previous menu or cancel the current operation.
During playback mode, press to restore real-time monitor mode.
Fn
(Function)
In one-window monitor mode: displays the PTZ control and image color
functions.
In motion detection setup: use with the direction keys to complete setup.
In text mode: toggles between numeric and alpha characters (lower/upper
case). Also serves as the Backspace function to delete the previous character
(to the left of the cursor) when pressed for 1.5 seconds.
In HDD management screen: switches between HDD recordings and other
information (Menu prompt).
