ADT NVR4200 Series - Network Connection

1 NVR Overview
Relay Specifications
Model: JRC-27F
Contact Material Silver
Rating
(resistance load)
Rated switch capacity 30VDC 2A, 125VAC 1A
Maximum switch power 125VA 160W
Maximum switch voltage 250VAC, 220VDC
Maximum switch currency 1A
Insulation
Between touches with same
polarity
1000VAC 1minute
Between touches with
different polarity
1000VAC 1minute
Between touch and winding 1000VAC 1minute
Surge voltage
Between touches with same
polarity
1500V (10 x 160us)
Open time 3ms max
Close time 3ms max
Longevity
Mechanical 50 x 106 times (3Hz)
Electrical 200 x103 times (0.5Hz)
Temperature -40°C to +70°C
1.4 Network Connections

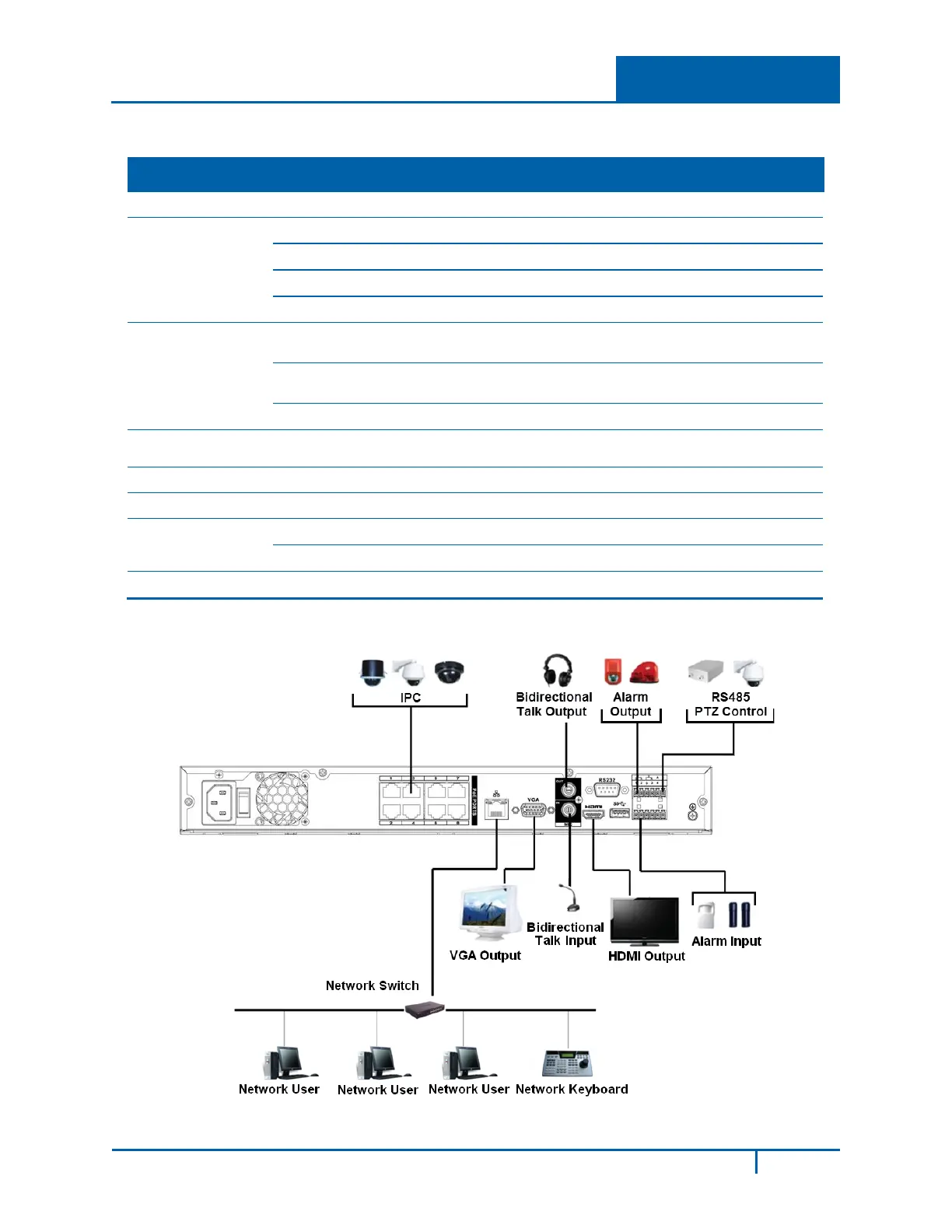

Figure 1-6
8 channel model shown
NVR4200 Series User Guide
7
