ADTECH9 Series CNC Maintenance Manual
- 192 -
12.2.2. Digital input interface
The digital input interface contains the hardware limit signal of every axis, and the definition is as follows:

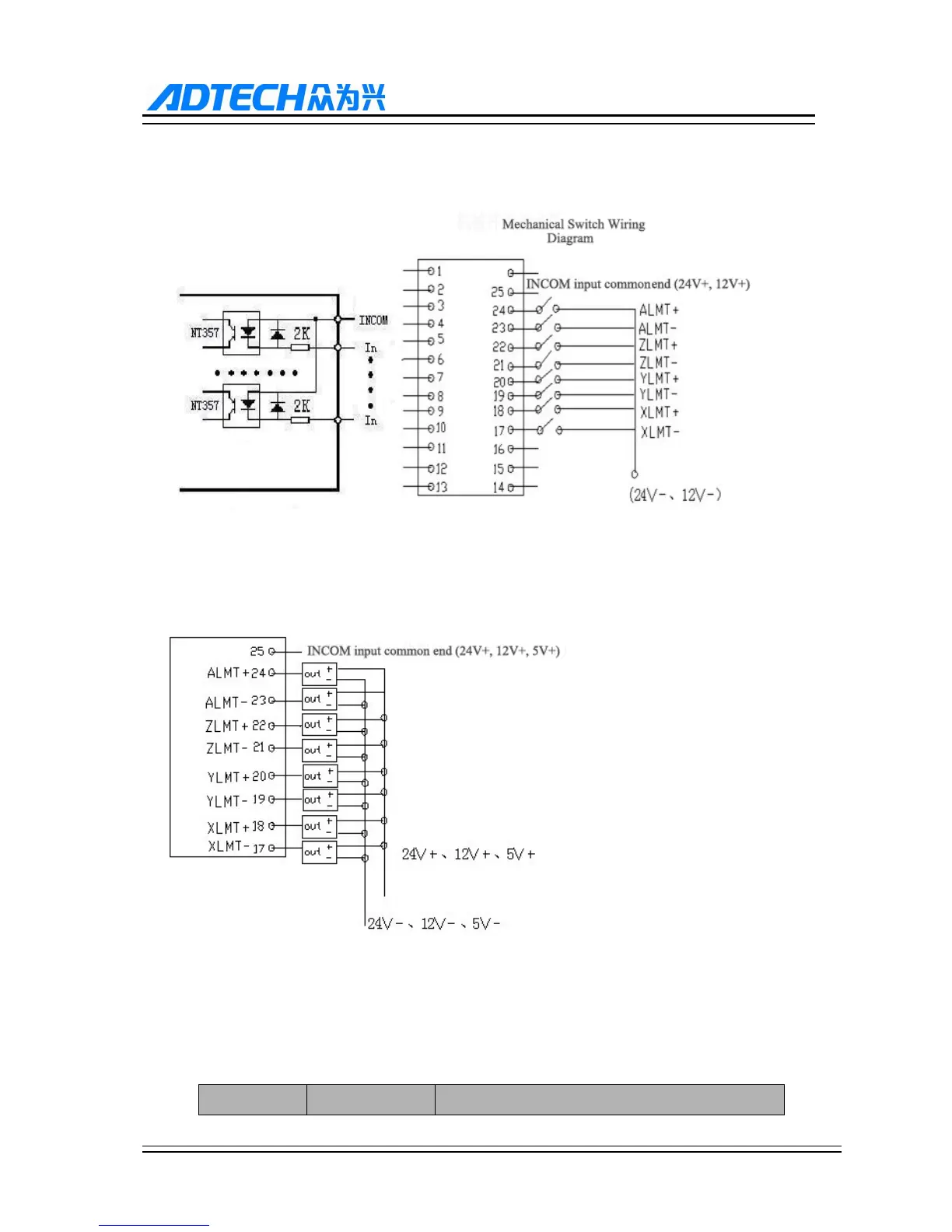

Simple Internal Output Diagram for Digital Input Photoelectric Switch Wiring Diagram
+ is the anode of approach switch, - is the earth wire, and OUT is output signal. For common approach switch,
please select 10-30V power supply and NPN output. Photoelectric switch is similar.
Default input port configuration of 96M series XS5 (CNC9640 milling machine)
Wire No. Port Definition Function
