Adtech CNC9640 User Manual

ADTECH9 Series CNC Maintenance Manual
- 202 -
25
OUTGND12V-, 24V- common power supply of
external output
12.2.4. Handheld box interface

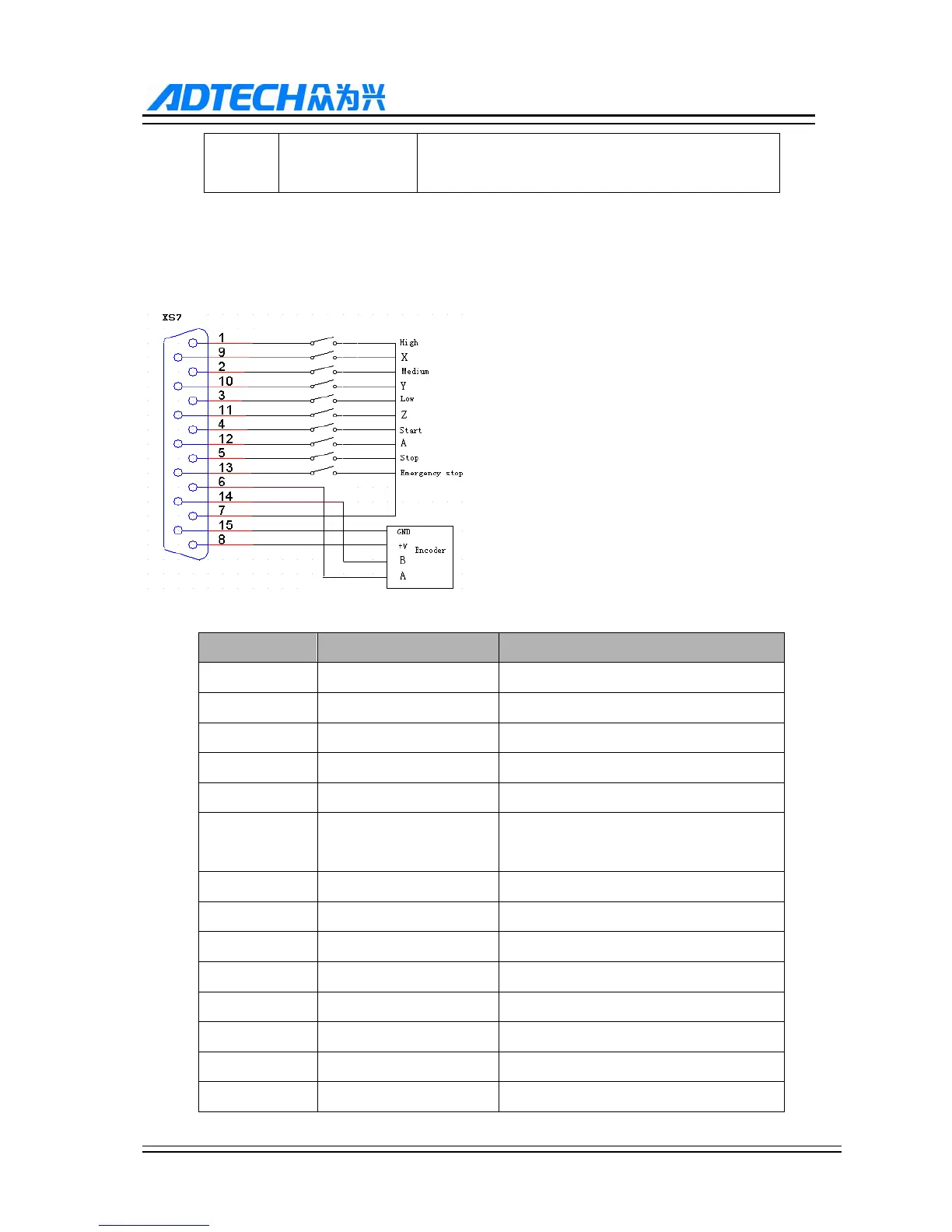

The definition of 9 series (CNC9640 XS7) is as follows:
Wire No. Definition Function
1 (IN56) gear switch 0.1 gear --- High speed
2 (IN58) gear switch 0.01 gear --- Medium speed
3 (IN60) gear switch 0.001 gear --- Low speed
4 (IN62) button Cycle start
5 (IN64) button Pause
7 24V-
Negative pole of internally provided 24V
power supply
9 (IN57) axis selection X axis
10 (IN59) axis selection Y axis
11 (IN61) axis selection Z axis
12 (IN63) axis selection A axis
13 (IN65) button Emergency stop
6 HA Hand encoder phase A input signal
14 HB Hand encoder phase B input signal
15 5V- Negative pole of internally provided 5V
