ADTECH9 Series CNC Maintenance Manual
- 217 -
11.3.6.

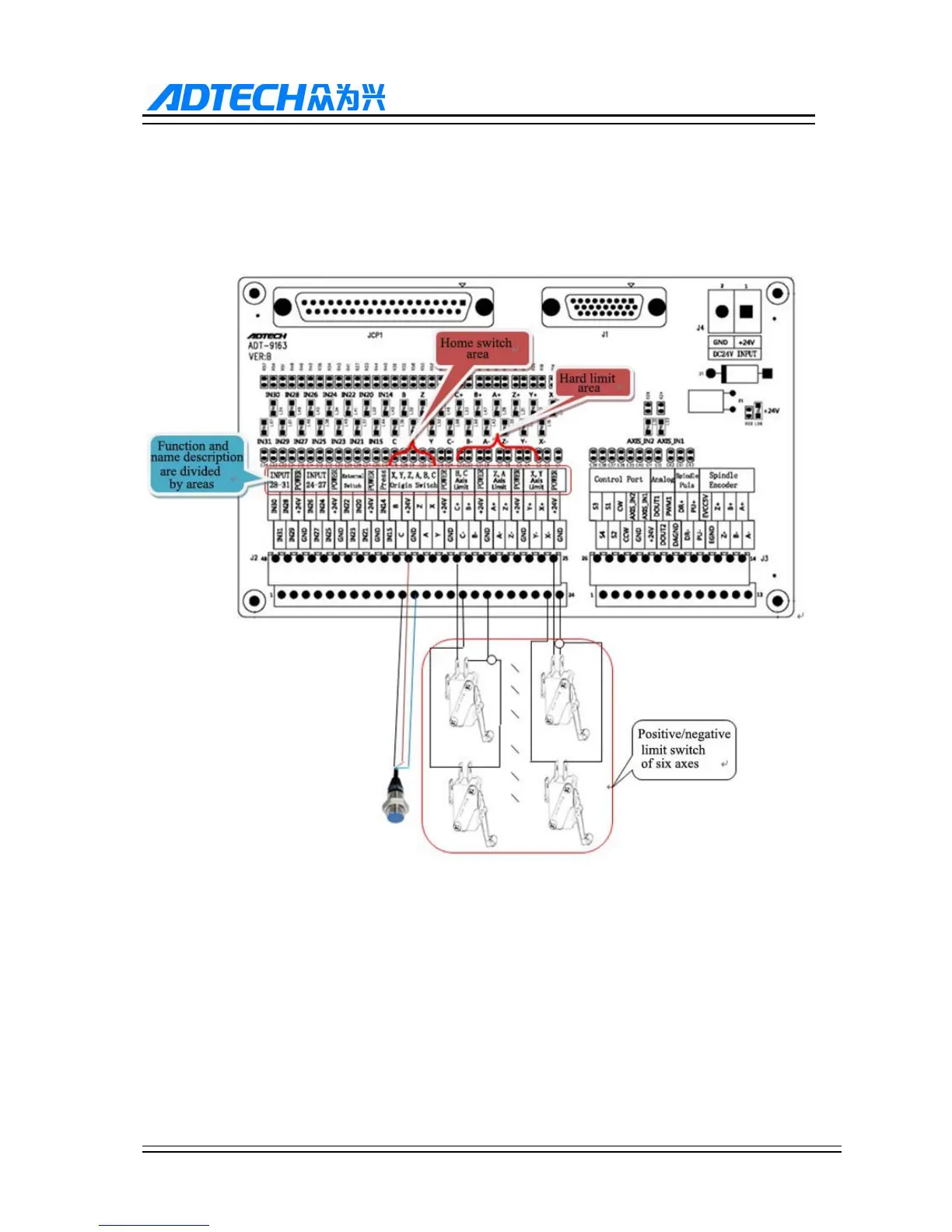

ADT9163 splitter wiring diagram
Note: The splitter terminal GND and +24V
are used for power
supply of external proximity sensor switch. Every
four input points sh
are a group, and the m
aximum operatin
g current of each gr
oup of power sup
ply terminals is
200MA.
The comm
on terminal of a
ll input points is
+24V
, and the stat
us of the input po
int inverts w
hen all input
terminals are connected to GND.
