ADTECH9 Series CNC Maintenance Manual
- 239 -
13.
Transmission of Computer NC Program Network to the
System
13.1. System IP Settings
Connect the controller to the router with a network cable.

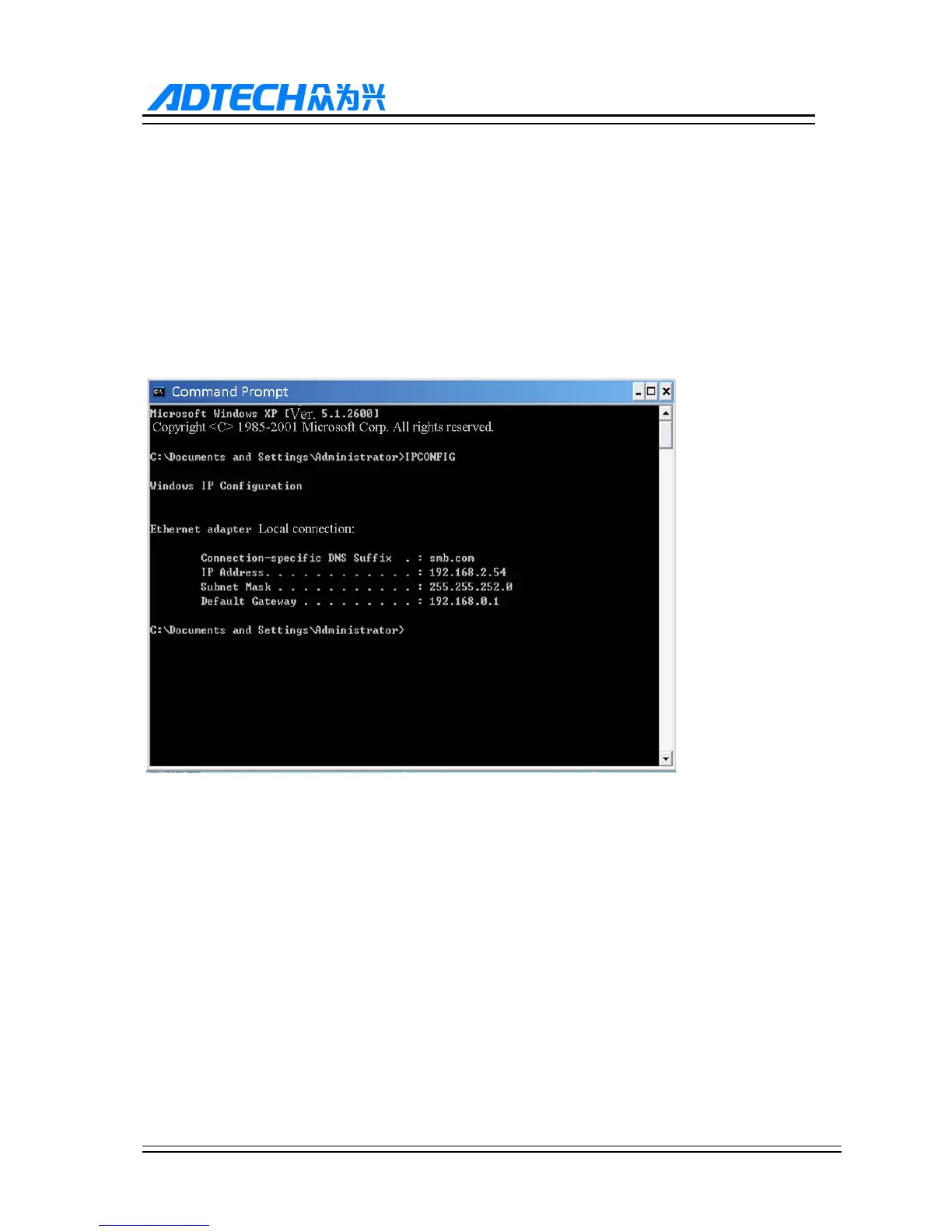

Through built-in command window, it is available to view the local computer ip address configuration using the
IPCONFIG command, as shown below:
Assign the controller the IP address 192.168.2.2 in the same network segment that is not used based on the IP
address of the host computer, for example, the IP address is 192.168.2.54.
To Next Page
