ADTECH9 Series CNC Maintenance Manual
- 236 -
J39
IN18 Standby IN118
J39 IN19 Standby IN119
J39
POWER
+24V 24V power supply output terminal
J39 GND 24V power supply output GND terminal
J39
IN23-IN20
IN20 Standby IN120
J39 IN21 Standby IN121
J39 IN22 Standby IN122
J39 IN23 Standby IN123

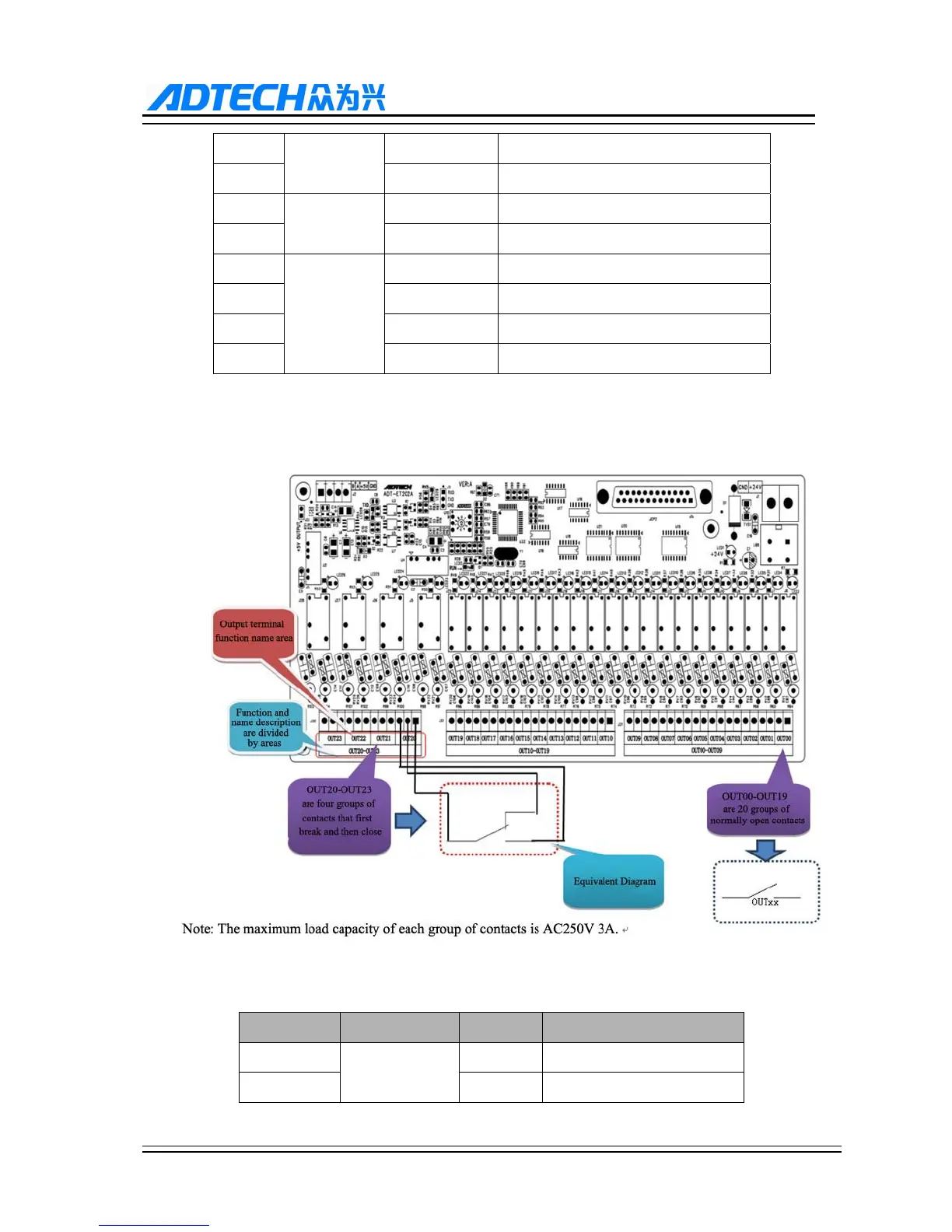

12.5. ET202A splitter wiring diagram
ET202A splitter function definition (Basic output)
Terminal No. Area Port Name Standard System function
J31
OUT00-OUT09
OUT00 OUT00 #1400
J31 OUT01 OUT01 #1401
