ADTECH9 Series CNC Programming Manual
6.3 Example

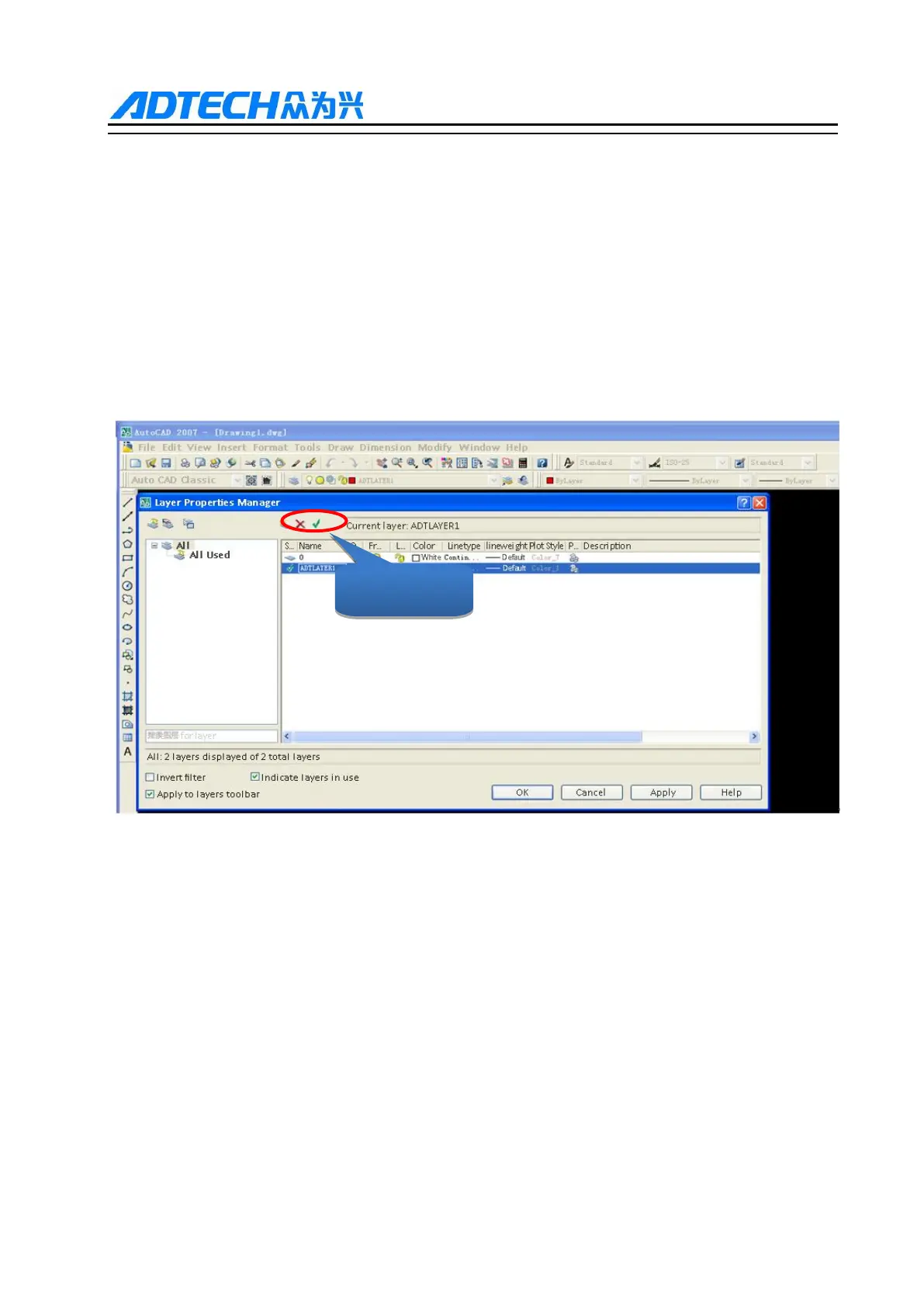

Here is an example of how to use CAD drawing and manual path editing with AUTOCAD2007. Open the
AUTOCAD2007 software, create a new file, create a new graphic conversion layer "ADTLAYER1" and set
the color to red, as shown below.
Select currently defined layer ADTLAYER1, and draw graphics such as point, line and arc. As shown in the
figure below. After drawing, save as DXF file and copy to the system.
ADTLAYER1
