ADTECH9 Ser
ies CNC
P
rogram
ming Ma
nual

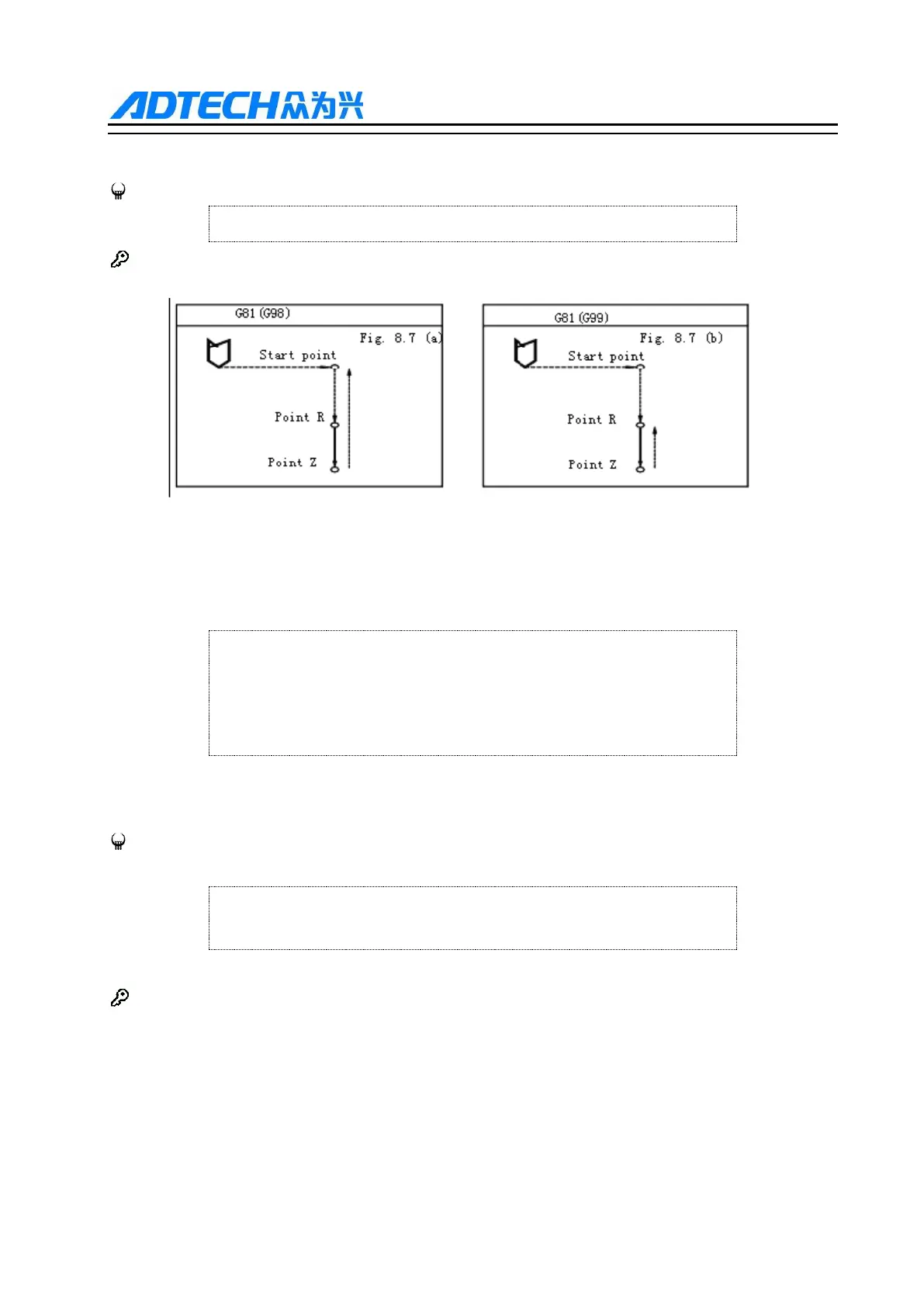

2.4.4.
Drilling cy
cl
e (G81)
Format:
Format G81 X_ Y_ Z_ R_ F_
Details:
Drilling Cycle Diagram
ļ
Note:
G81 is the sim
plest fixed cy
c
le, and its executi
on process
follows:
X, Y positioni
ng,
Z axis m
o
ves to point
R
quickly
, and feeds to point Z at F
speed,
Quickly
returns to the start point (
G98) or point R (
G99),
No hole bottom
action
2.4.5.
Drilling cy
cl
e, rough bor
ing cycle (
G82
)
Format:
G82 X_ Y_ Z
_ R_ P_ F_
Details:
75
77
Table of Contents
Default Chapter
5
Table of Contents
5
1 Overview
10
Specification
10
Basic Functions
10
Auxiliary Functions
11
Spindle Functions
11
Tool Functions
12
Gcodes List
12
Program Structure
14
Program Composition
14
Main Program and Subroutine
17
Modal and Non-Modal Function
18
Motion Direction Naming of Control Axes
19
2 System Programming
22
Preparation Functions (Gfunction )
22
G90 G91 Absolute and Relative Programming
22
Rapid Positioning (G00)
23
Linear Interpolation (G01)
24
Arc Interpolation (G02, G03)
25
Pause Instruction (G04)
29
Plane Selection (G17-G19)
29
Machine Tool Coordinate System (G53)
30
Programmable Workpiece Coordinate System (G92)
31
Gfunction Related to Reference Point
32
Auto Return to Reference Point (G28)
32
Auto Return from Reference Point (G29)
34
Reference Point Return Checking (G27)
35
Local Coordinate System (G52)
36
Tool Compensation Gfunction
38
Tool Length Compensation (G43, G44,G49)
38
Tool Radius Compensation (G40, G41, G42)
41
G41/G42Instruction and I, J, K Designation
55
Notes for Tool Radius Compensation
63
Hole Processing Function
67
High-Speed Deep-Hole Drilling Cycle (G73)
72
Left-Hand Thread Tapping Cycle (G74)
73
Fine Boring Cycle (G76)
74
Drilling Cycle (G81)
76
Drilling Cycle, Rough Boring Cycle (G82)
76
Deep-Hole Drilling Cycle (G83)
77
Tapping Cycle (G84)
78
Boring Cycle (G85)
80
Boring Cycle (G86)
81
Back Boring Cycle(G87)
83
Boring Cycle (G88)
84
Boring Cycle (G89)
84
Conversion of Gcommand
88
Program Coordinates Rotation G68 and G69
88
G51.1And G50.1 Mirroring
90
Probe Gcommand
94
G31.1
94
G31.2
94
G31.3
94
Machine Coordinate Positioning Commands
95
G53
95
G53.1
95
3 Auxiliaryfunction
96
Mcode List
96
M00 Program Pause
99
M03 Spindle Moves Clockwise (CW)
99
M04 Spindle Moves Counterclockwise (CCW)
99
M05 Spindle Stops
99
Mcommand for Input Signal Detection Output
99
M88 Input Port Signal Detection
99
M89 Specifies Output Port Control
99
Spindle Speed Functions
100
Tool Function
100
4 Category B Macro Function
101
Variable Instruction
101
Macro Program Call
103
Macro Program Calling Command
103
Variable
107
Types of Variables
109
Calculus Instruction
111
Control Instruction
115
Notes of Using Macro
119
Macro Variable User Parameters System Configuration
119
Extended Special Macro Functions
121
RCOOR Read Workpiece Coordinates
121
RMACPOS Read Machine Tool Coordinates
121
WMACPOS Write Machine Tool Coordinates
121
SPEEDS Set Interpolation Speed
121
SPEEDA Set Positioning Speed
122
MOVEABS Single Axis Moves to the Machine's Position
122
MOVEREL Relative Moved Position of Single Axis
122
MOVEASA Two Axes Move to the Machine's Position (Positioning or Interpolation)
122
MOVERSA Relative Moved Position of Two Axes (Positioning or Interpolation)
123
MOVEASB Three Axes Move to the Machine's Position (Positioning or Interpolation)
123
MOVERSB Relative Position of Motion of Three Axes
123
MOVEASC Absolute Position of Motion of Multiple Axes (Positioning or Interpolation)
124
MOVERSC Relative Position of Motion of Multiple Axes (Positioning or Interpolation)
124
WRITEOUT Write Physical Output
125
WRITELED Write Physical LED
125
READOUT Read Physical Output
125
READIN Read Physical Input
125
READLED Read Physical LED
125
MOVEWAITIN Search and Wait for the Input Signals in Motion
126
M2209
130
M2212
130
M2213
130
M2214
130
M2216
130
M2217
130
M2218
130
M2219
130
M2220
130
M2221
130
M Code Segment Activated by External Input Point
131
Auxiliary Channel Grun 4, 5, 6 and 7
131
Instruction on Custom Cam
132
Overview
132
Introduction of Cam Instruction Interface
132
Cam Instruction Menu Functions
133
Cam Instruction Configuration File
134
Schematic Diagram of Cam Instruction
141
Generation of Processing Programs
145
Cad Dxf Conversion
149
Function
149
Keywords Description
150
Example
151
Dxf File Manual Path Processing
154
Automatic Tool Change (Atc)
157
Spindle
157
Spindle Cabinet
157
