ADTECH9 Series CNC Programming Manual

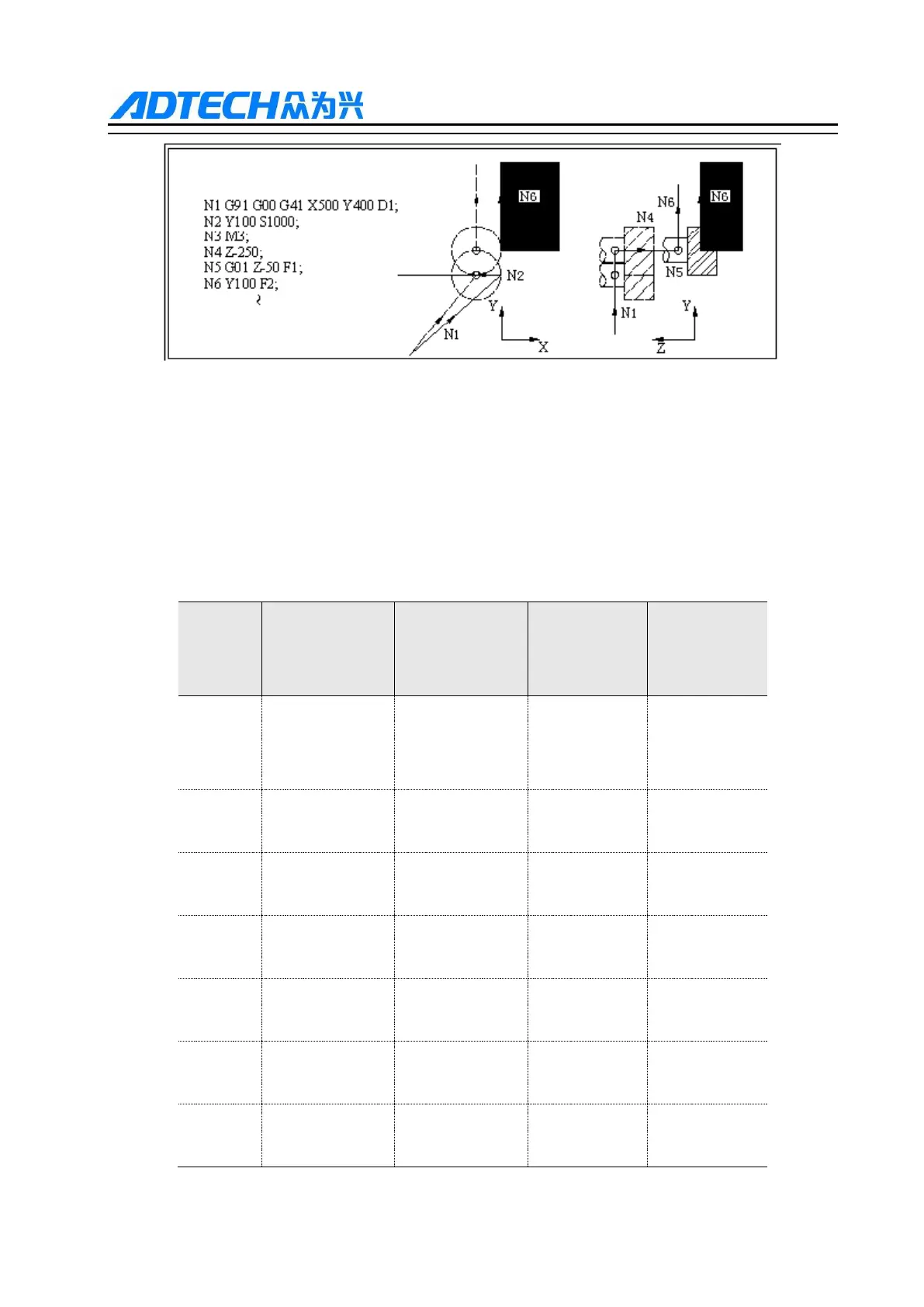

N2 and N6 have same direction, and thus the compensation can be executed properly.
2.4 Hole processing function
Standard fixed cycle
With hole processing fixed cycle, the functions that require several segments in other method can be finished
in one segment. Table 10.1 lists all hole processing fixed cycles.
Table 10.1: Hole Processing Fixed Cycle
G code
Processing
motion
(Z axis negative)
Hole bottom
action
Return motion
(Z axis
positive)
Application
G73
Sub, cutting
feeding
－
Quick
positioning
feeding
High speed
deep hole
drilling
G74
Cutting feeding
Pause-Spindle
CW
Cutting feeding
Left-hand
tapping cycle
G76
Cutting feeding
Spindle
orientation stops
Rapid
traverse
Fine boring
cycle
G80
－
－
－
Cancel ficed
cycle
G81
Cutting feeding
－
Rapid traverse
Common
drilling cycle
G82
Cutting feeding
Pause
Rapid traverse
Drilling to
rough boring
G83
Sub, cutting
feeding
－
Rapid traverse
Deep hole
drilling cycle
