ADTECH9 Series CNC Programming Manual

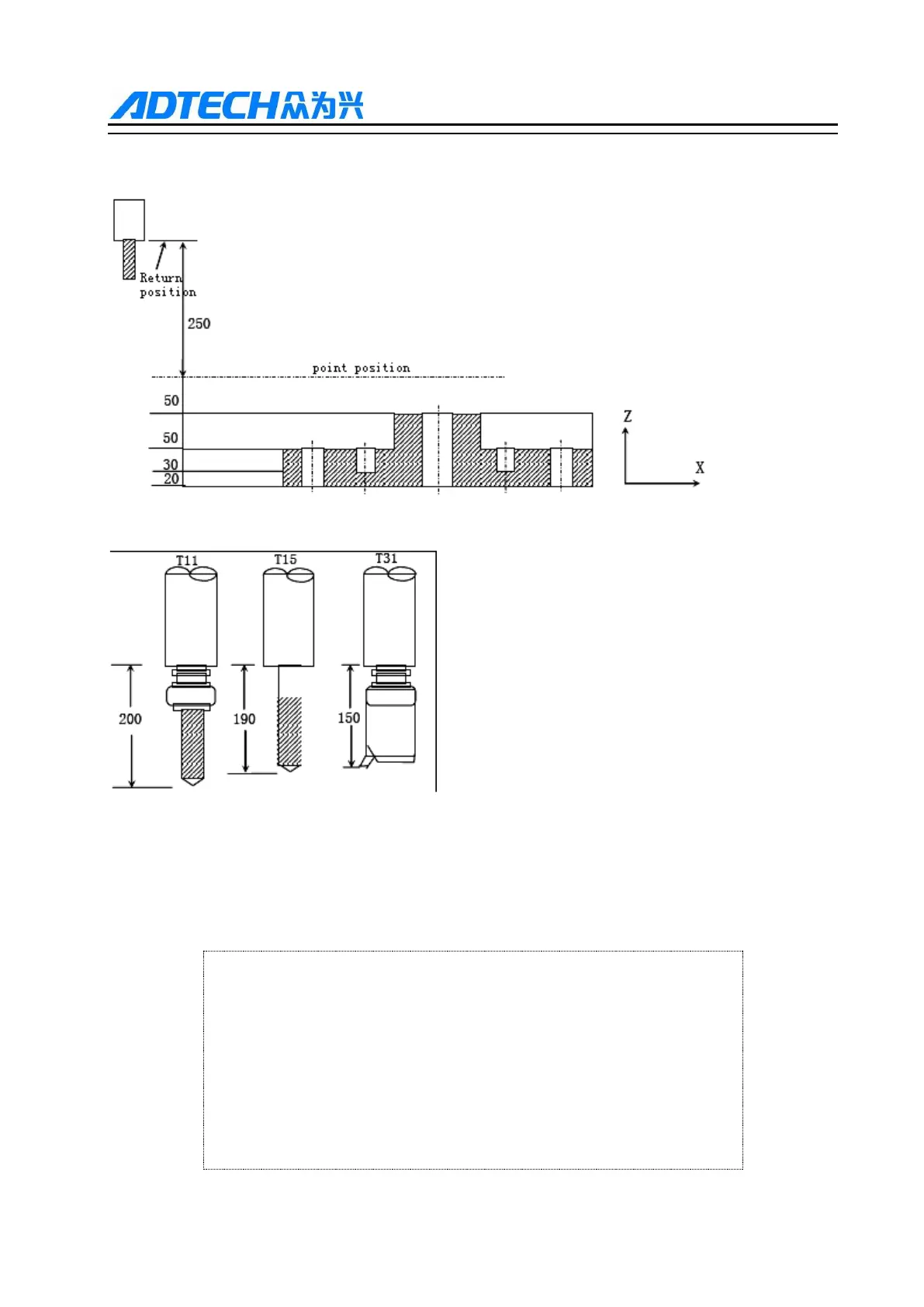

The value of offset No. 11 is 200.0,
The value of offset No. 15 is 190.0,
The value of offset No. 31 is 150.0,
The offsets are set separately. The program follows:
N001 G92 X0 Y0 Z0 ; the coordinate system is set at reference point
N002 G90 G00 Z250.0 T11 M6; change tool
N003 G43 Z0 H11 ; execute plane tool length compensation at the start point
N004 S30 M3 ; spindle starts
N005 G99 G81 X400.0 Y-350.0
Z-153.0 R-97.0 F120.0 ; process #1 hole after positioning
N006 Y-550.0 ; process #2 hole after positioning, return to point R plane
