AIMB-584 User Manual 102

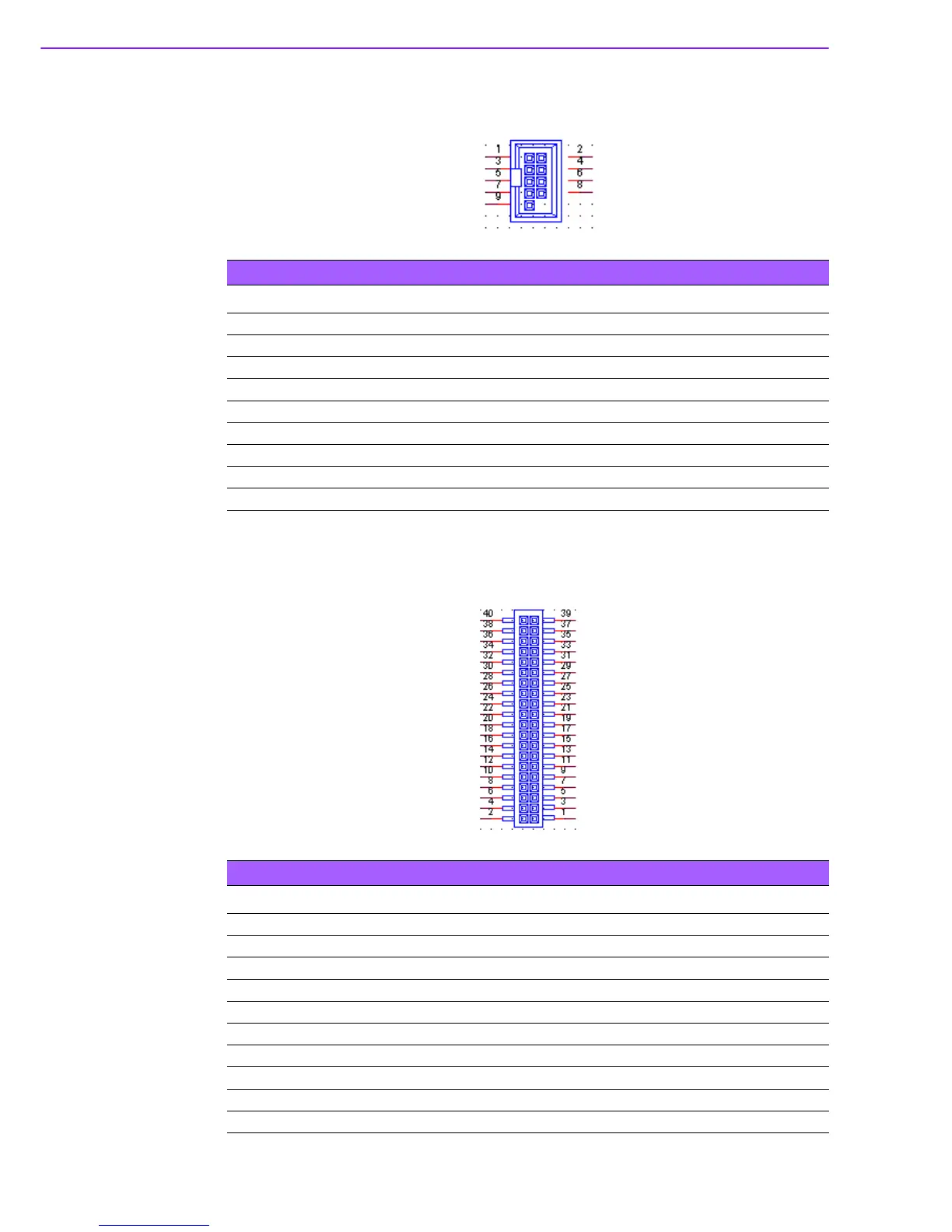

B.1 RS-232 Serial Port (COM2)
B.2 Serial Port: COM3/4/5/6 Connector (COM3456)
Table B.1: RS-232 Connector (2 x 5P Connector)
Pin Pin Name
1 COM2_DCD#
2COM2_DSR#
3COM2_SIN
4COM2_RTS#
5COM2_SOUT
6 COM2_CTS#
7 COM2_DTR#
8 COM2_RI#
10 GND
Table B.2: COM3456 Connector (2 x 20 Pin Header)
Pin Pin Name Pin Pin Name
1 COM3_DCD# 2 COM3_DSR#
3COM3_SIN4COM3_RTS#
5 COM3_SOUT 6 COM3_CTS#
7 COM3_DTR# 8 COM3_RI#
9GND10GND
11 COM4_DCD# 12 COM4_DSR#
13 COM4_SIN 14 COM4_RTS#
15 COM4_SOUT 16 COM4_CTS#
17 COM4_DTR# 18 COM4_RI#
19 GND 20 GND
