AIMB-584 User Manual 106

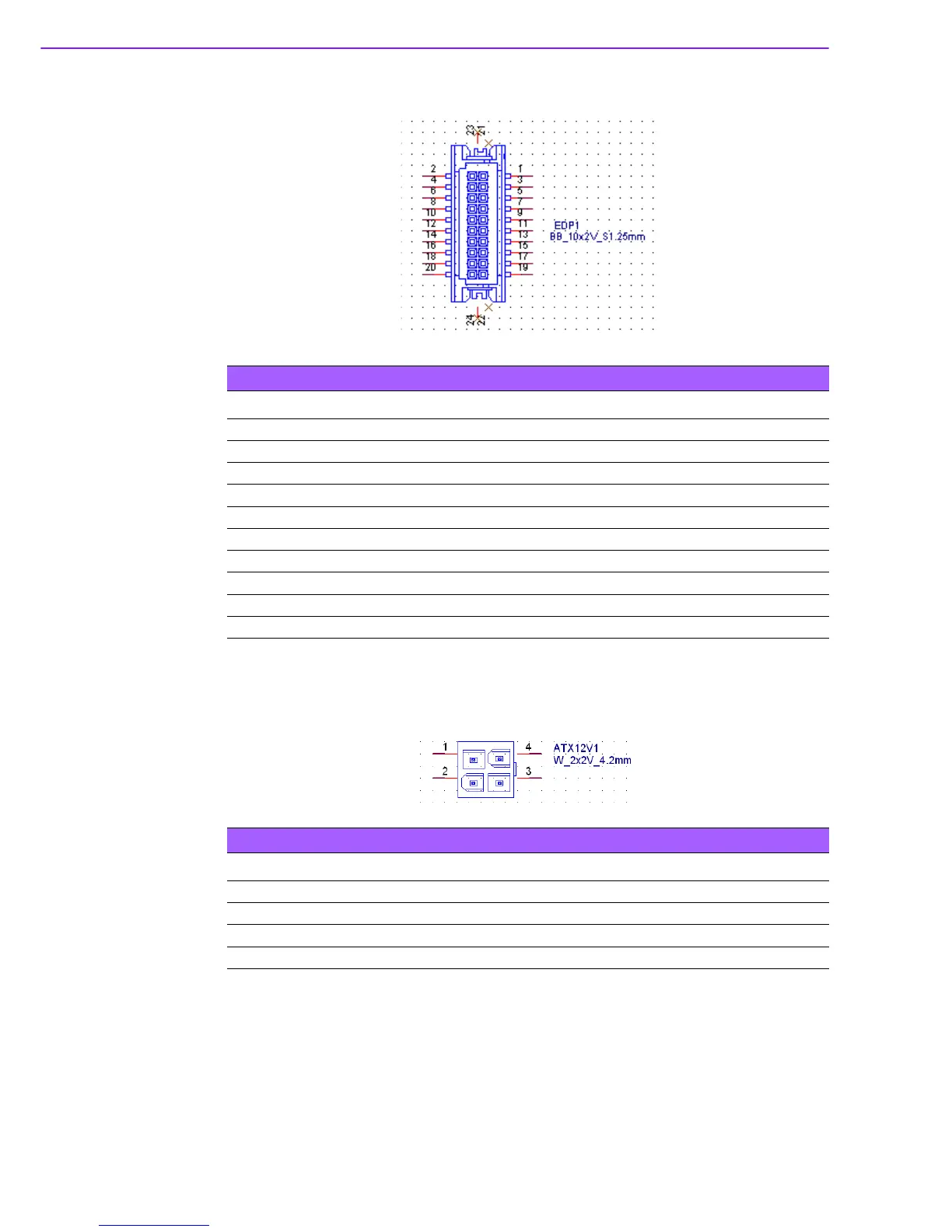

B.8 eDP Connector (eDP) (Optional)
Note: (*) Voltage depends on setting of JLVDS1.
B.9 ATX 12 V Connector (ATX12V1)
Table B.8: eDP Connector (Optional)
Pin Pin Name Pin Pin Name
1 GND 2 GND
3EDP0-4EDP3-
5EDP0+6EDP3+
7GND8NC
9 EDP1- 10 GND
11 EDP1+ 12 EAUX-
13 GND 14 EAUX+
15 EDP2- 16 GND
17 EDP2+ 18 HPD
19 VDD_LVDS1 (*) 20 VDD_LVDS1 (*)
Table B.9: ATX 4 Pin Main Power Connector (ATX12V1)
Pin Pin Name
1GND
2GND
3 +12V
4 +12V
