117 AIMB-584 User Manual
Appendix B Pin Assignments
Not: Normal operation (1-2 short) as default/ Reset the manageability register bits in
the RTC well when the RTC battery is removed. (2-3 short).

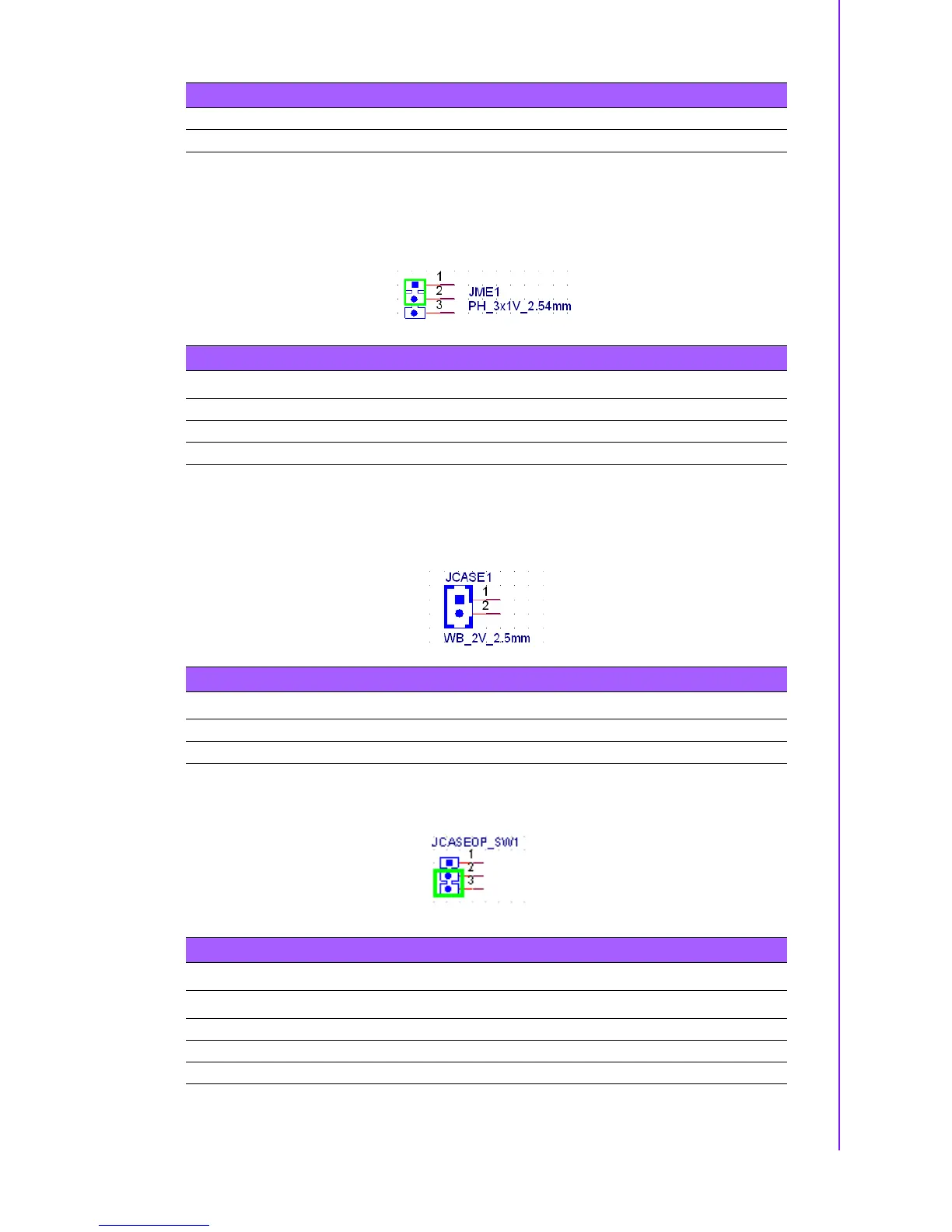

B.35 Flash Descriptor Security Override (JMECLR1)
Note: (1-2): ENABLE / (2-3): DISABLE.
B.36 CASE OPEN Connector (JCASE1)
B.37 CASE OPEN Switch (JCASEOP_SW1)
Note: Setting Case Open w/ Normal Close or Open Switch. (2-3) is default.
2 SRTCRST#
3GND
Table B.34: ME Clear
Table B.35: Flash Descriptor Security Override
Pin Pin Name
1NC
2 Flash Descriptor Security Override
3 +3.3V Standby
Table B.36: JCASE OPEN Connector
Pin Pin Name
1 CASEOP or CASEOP# (Depends on JCASEOP_SW1)
2GND
Table B.37: JCASE OPEN Switch
Description
Pin Pin Name
1 CASEOP# w/ normal close switch
2 CASE OPEN Setting
3 CASEOP w/ normal open switch
