21 AIMB-584 User Manual
Chapter 2 Connecting Peripherals

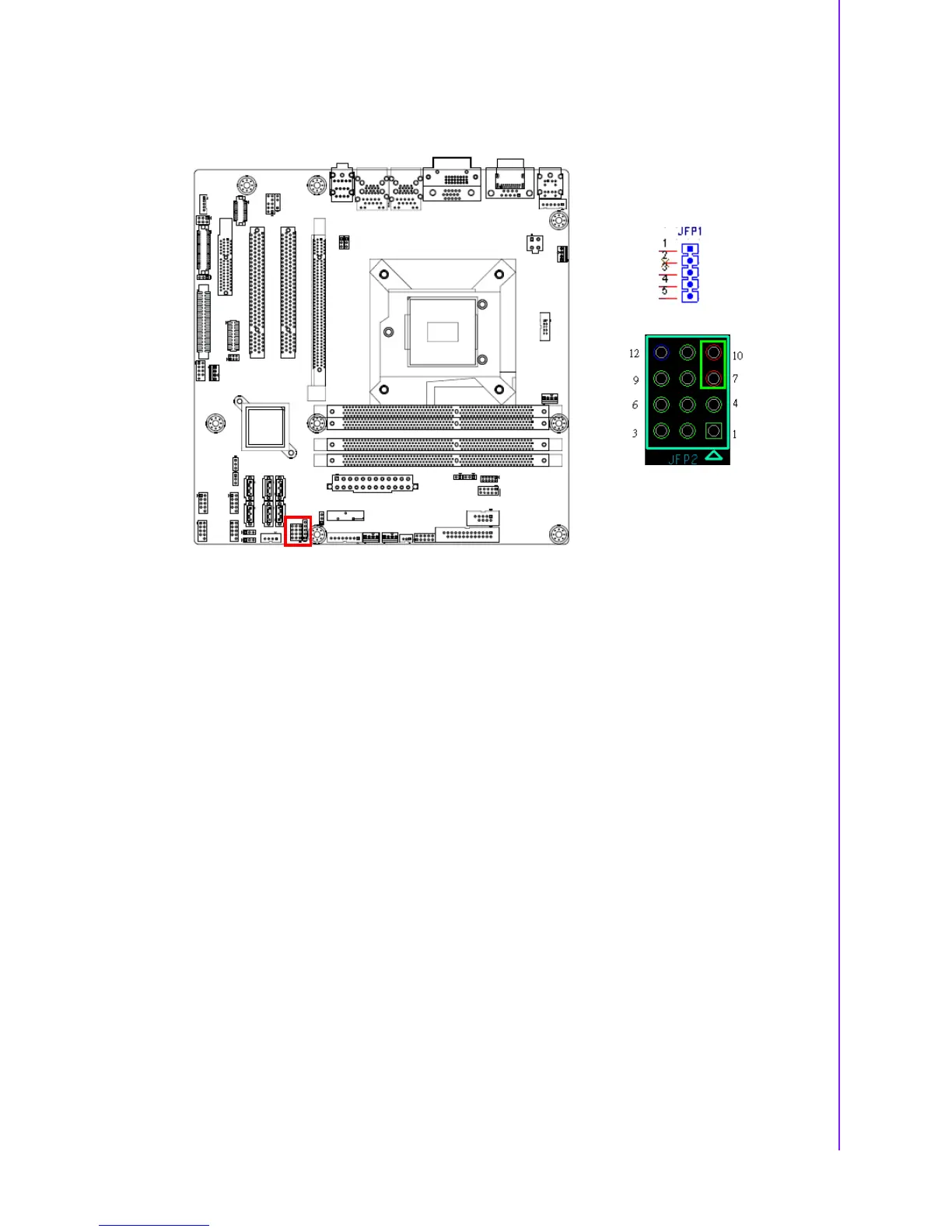

2.10 Front Panel Connectors (JFP1/JFP2/JFP3)
There are several headers for monitoring and controlling the AIMB-584.
2.10.1 ATX soft power switch (JFP2/PWR_SW)
If your computer case is equipped with an ATX power supply, you should connect the
power on/off button on your computer case to (JFP2/ PWR_SW), for convenient
power on and off.
2.10.2 Reset (JFP2/RESET)
Many computer cases offer the convenience of a reset button. Connect the wire for
the reset button.
2.10.3 HDD LED (JFP2/HDDLED)
You can connect an LED to connector (JFP2/HDDLED) to indicate when the HDD is
active.
2.10.4 External speaker (JFP2/SPEAKER)
JFP2/SPEAKER is a 4-pin connector for an external speaker. If there is no external
speaker, the AIMB-584 provides an onboard buzzer as an alternative. To enable the
buzzer, set pins 7 & 10 as closed.
