Advantech AIMB-584 - USB POWER Selection for USB910, USB1112 Connector (JUSBPWR9101112); Keyboard; Mouse Connector (KBMS2); Printer Port Connector (LPT1); Table B.18:USB Header Power Switch for USB910, USB1112 Ports

AIMB-584 User Manual 110

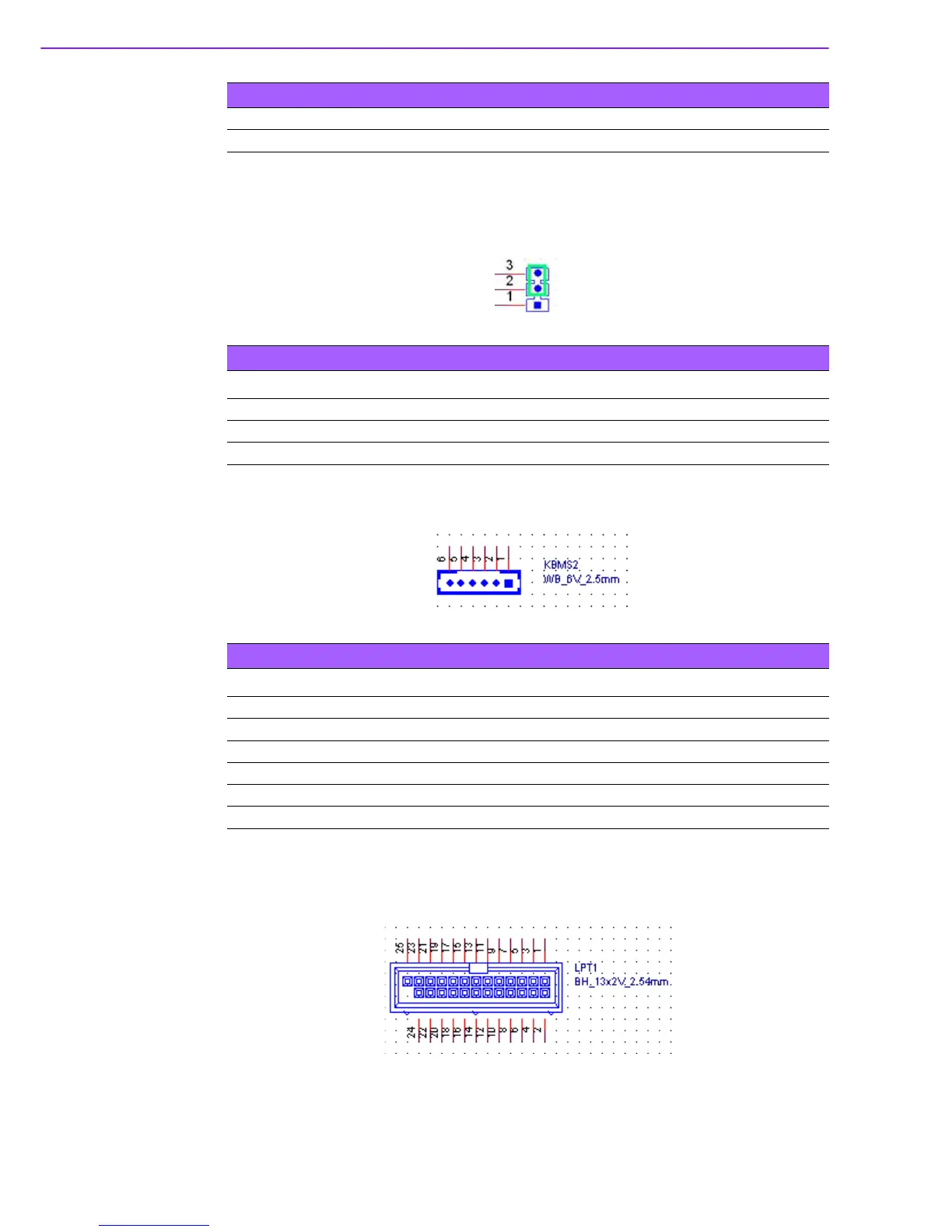

B.18 USB POWER Selection for USB910, USB1112
Connector (JUSBPWR9101112)
B.19 Keyboard / Mouse Connector (KBMS2)
Note: (*) Depends on Setting of JUSBPWR12.
B.20 Printer Port Connector (LPT1)
2 USB5678 5V Power Input
3+5V
Table B.17: USB Header Power Switch for USB56, USB78 Ports
Table B.18: USB Header Power Switch for USB910, USB1112 Ports
Pin Pin Name
1 +5V_DUAL
2 USB9101112 5V Power Input
3+5V
Table B.19: Keyboard/ Mouse Connector ( 1 x 6 Pin Header)
Pin Pin Name
1 KB_CLK#
2 KB_DAT#
3MS_DAT#
4GND
5 KBMS1_VCC (*)
6MS_CLK#
