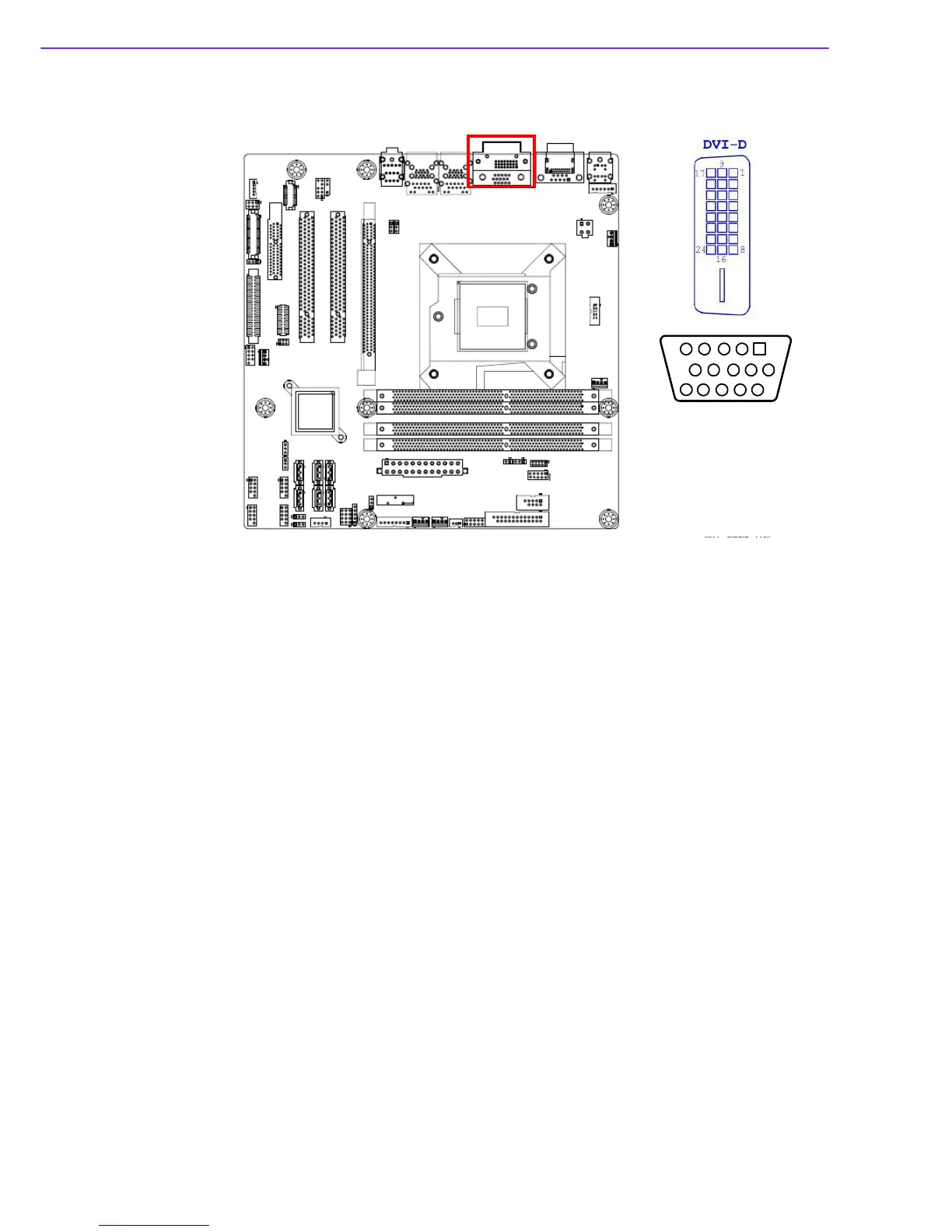

2.4 VGA/DVI-D Connector (VGA1+DVI 1) Connector
AIMB-584 includes VGA and DVI interfaces that can drive conventional VGA and DVI
displays. VGA is a standard 15-pin D-SUB connector commonly used for VGA. Pin
assignments for VGA and DVI connectors are detailed in Appendix B.
5
15
1
11
10 6
