Advantech AIMB-584 - BIOS IC Socket (SPI1); BIOS Update;Debug Connector (SPI_CN1); Lan Led (Lanled1)

113 AIMB-584 User Manual

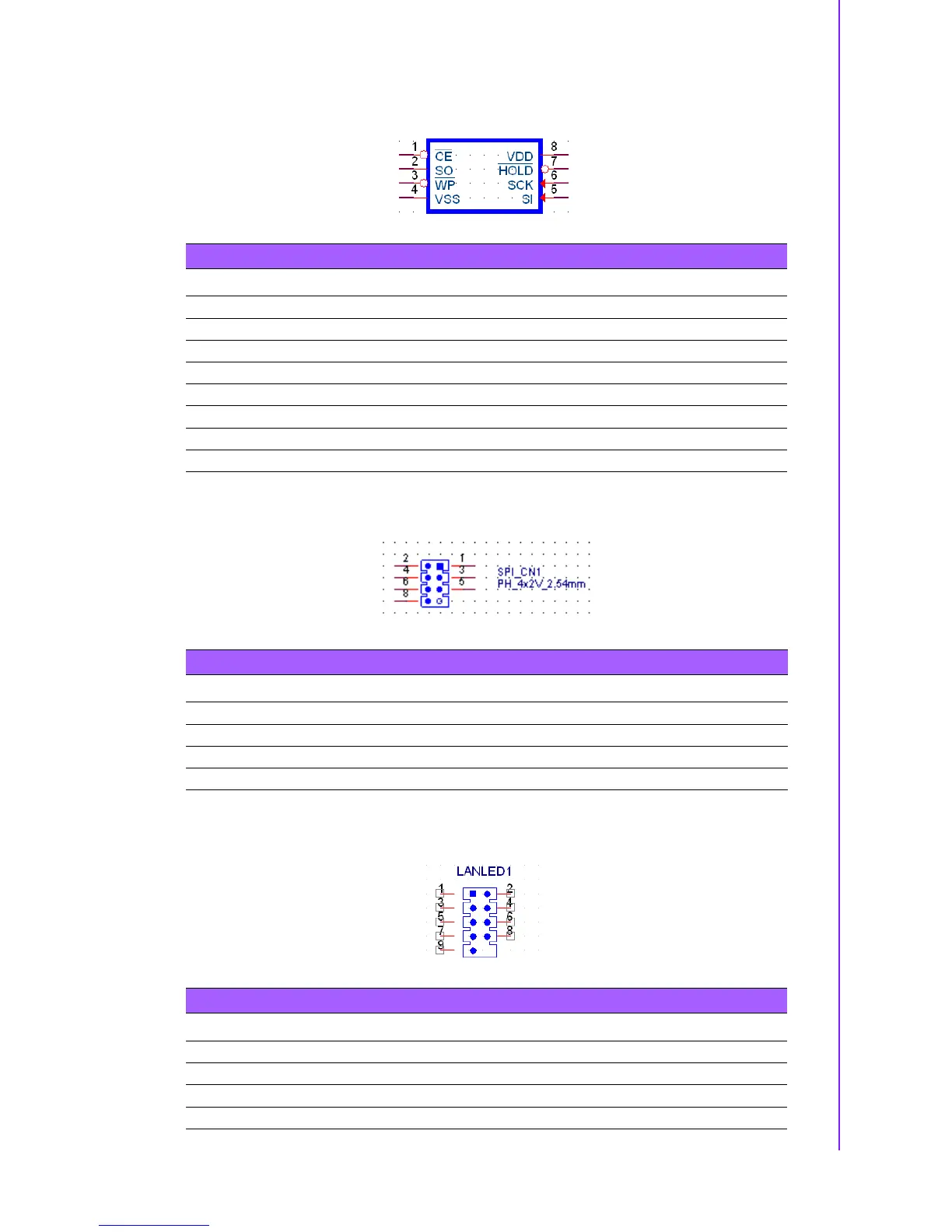

Appendix B Pin Assignments
B.25 BIOS IC Socket (SPI1)
B.26 BIOS Update/Debug Connector (SPI_CN1)
B.27 LAN LED (LANLED1)
Table B.25: BIOS IC Socket
Pin Pin Name
1 SPI_CS#
2 SPI_MISO
3 SPI_WP#
4GND
5 SPI_MOSI
6 SPI_CLK
7HOLD
8 +3.3V
Table B.26: BIOS Update/Debug Connector
Pin Pin Name Pin Pin Name
1 +3.3V_SPI 2 GND
3 SPI_CS# 4 SPI_CLK
5 SPI_SO_R1 6 SPI_SI
8 NC
Table B.27: LAN LED
Pin Pin Name
1 LAN1LED0 (ACTIVE)
2 LAN2LED1 (ACTIVE)
3 LAN1_LED_Power (+3.3V)
4 LAN2_LED_Power (+3.3V)
