Advantech AIMB-584 - Smbus Connector from PCH (SMBUS1); Audio Front Panel Connector (FPAUD1); SPDIF Connector (SPDIF_OUT1)

AIMB-584 User Manual 112

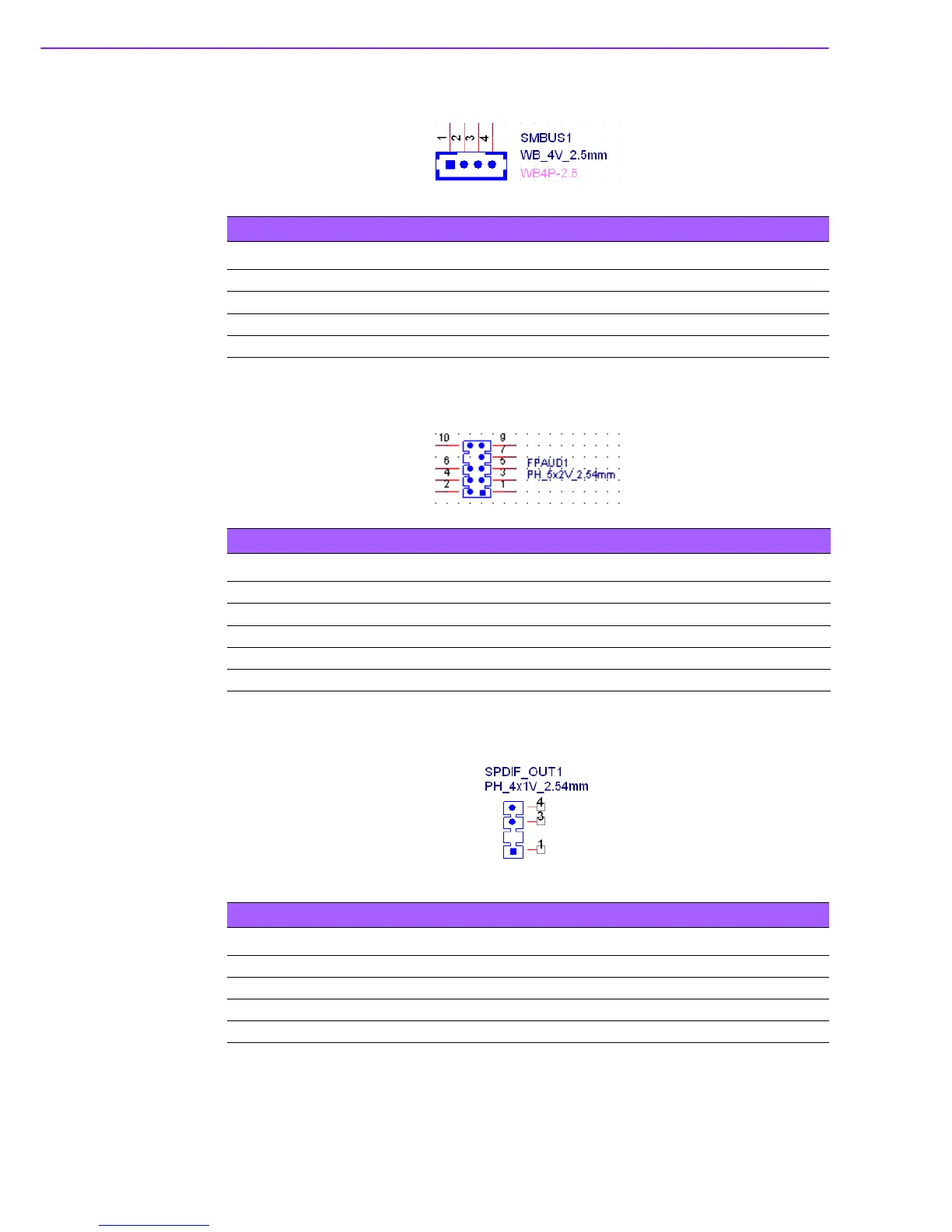

B.22 SMBus Connector from PCH (SMBUS1)
B.23 Audio Front Panel Connector (FPAUD1)
B.24 SPDIF Connector (SPDIF_OUT1)
Table B.22: SMBus Connector from PCH
Pin Pin Name
1+5V
2CLK
3DATA
4 GND
Table B.23: Audio Front Panel Connector
Pin Pin Name Pin Pin Name
1 MIC2_L 2 GND
3 MIC2_R 4 Front Panel PRESENCE#
5 LINE2_R 6 MIC2-Jack Detection Return
7 Jack Detection Sense 8
9 LINE2_L 10 LINE2-Jack Detection Return
Table B.24: SPDIF Connector
Pin Pin Name
1+5V
2NC
3 SPDIF-OUT
4GND
