Advantech AIMB-584 - Irda; OBS; Watch Dog Connector (JIR1+JOBS1+JWDT1); RTC;CMOS Clear (JCMOS1); ME Clear (JMECLR1)

AIMB-584 User Manual 116

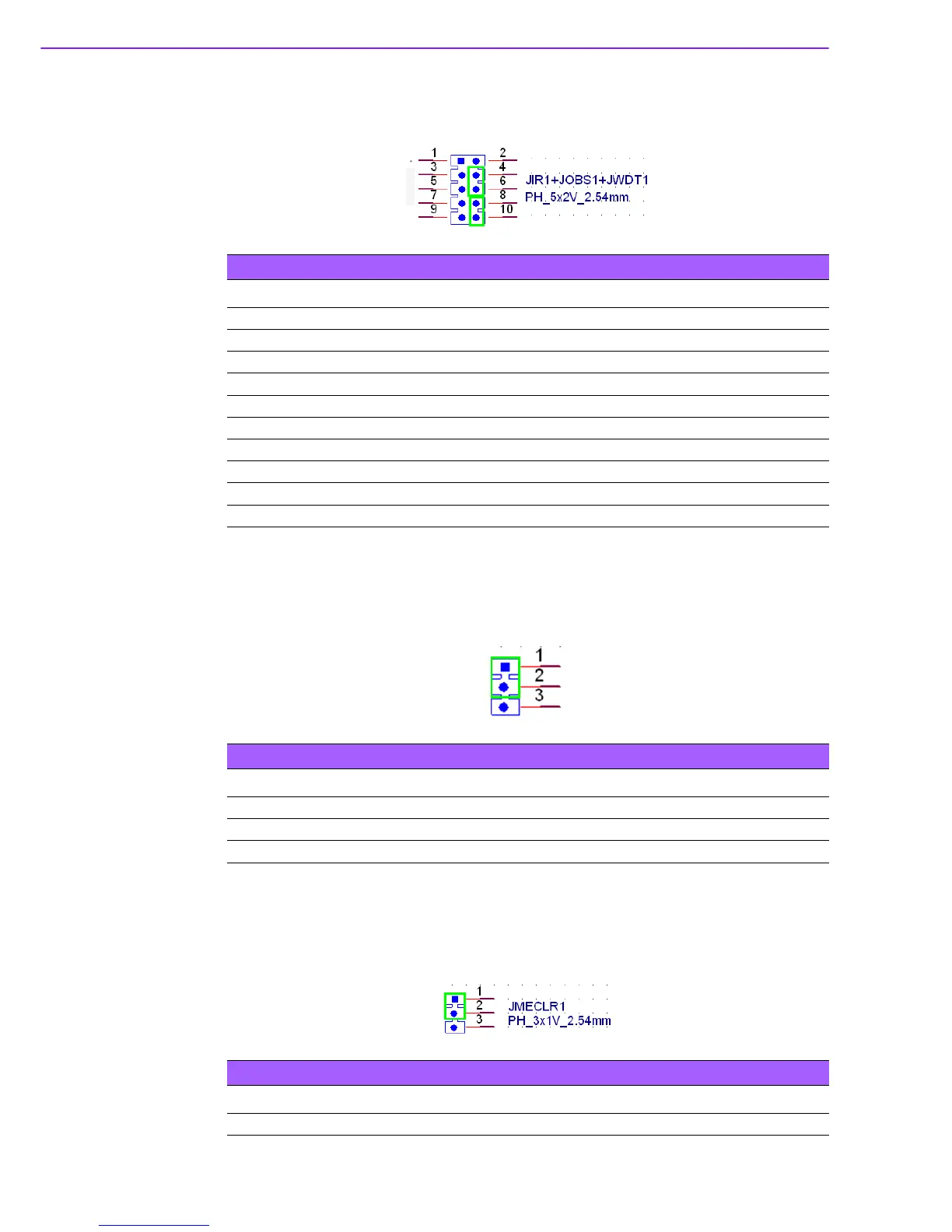

B.32 IrDA / OBS / Watch Dog Connector
(JIR1+JOBS1+JWDT1)
Note: IrDA (1-9) / Watch dog time-out reset# (4-6 short) / SIO Warning Beep enable
(8-10 short).
B.33 RTC/CMOS Clear (JCMOS1)
Note: Normal operation (1-2 short) as default / Resets register bits in the RTC well.
(2-3 short).
B.34 ME Clear (JMECLR1)
Table B.32: IrDA / OBS / Watch Dog Connector
Pin Pin Name
1+V5
2NC
3NC
4 Watch dog reset# output
5 IRRX
6 System reset input#
7 GND
8 SIO Warning Beep output
9 IRTX
10 SP1 Buzzer Beep input
Table B.33: RTC/CMOS Clear
Pin Pin Name
1NC
2 RTCRST#
3GND
Table B.34: ME Clear
Pin Pin Name
1NC
