15 AIMB-584 User Manual
Chapter 2 Connecting Peripherals

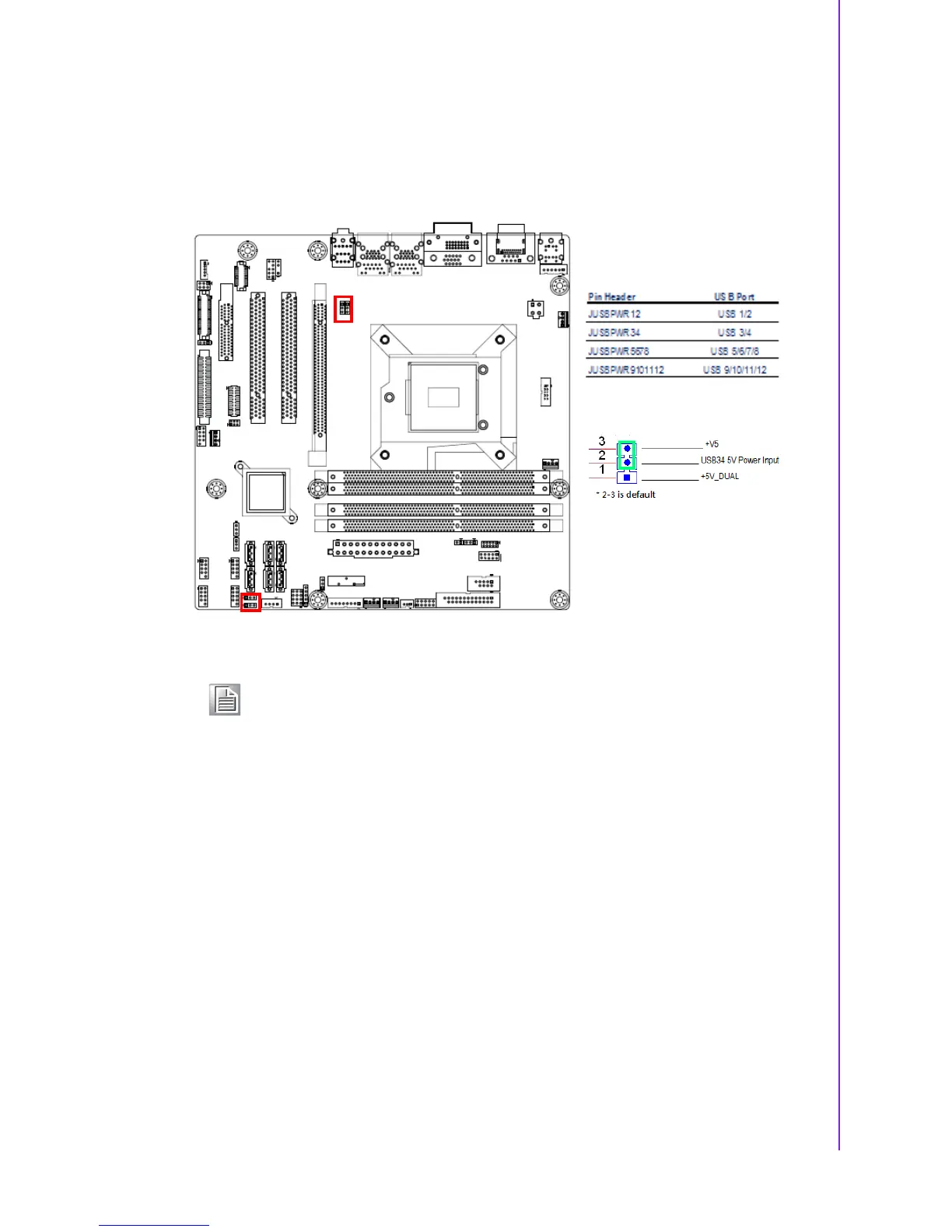

2.3 USB Power Switch
AIMB-584 allows users to set USB power between +5 VSB and +5 V. When the
jumper is set as +5 V (default 2-3 pin), the board doesn't support wake from S3 via
keyboard or mouse. If need to set as +5 Vsb, need to modify the jumper (1-2 pin)
and ask for to modify the customized BIOS at the same time.
Note! When USB power is switched to +5V, it can't be connected with power
KVM.
