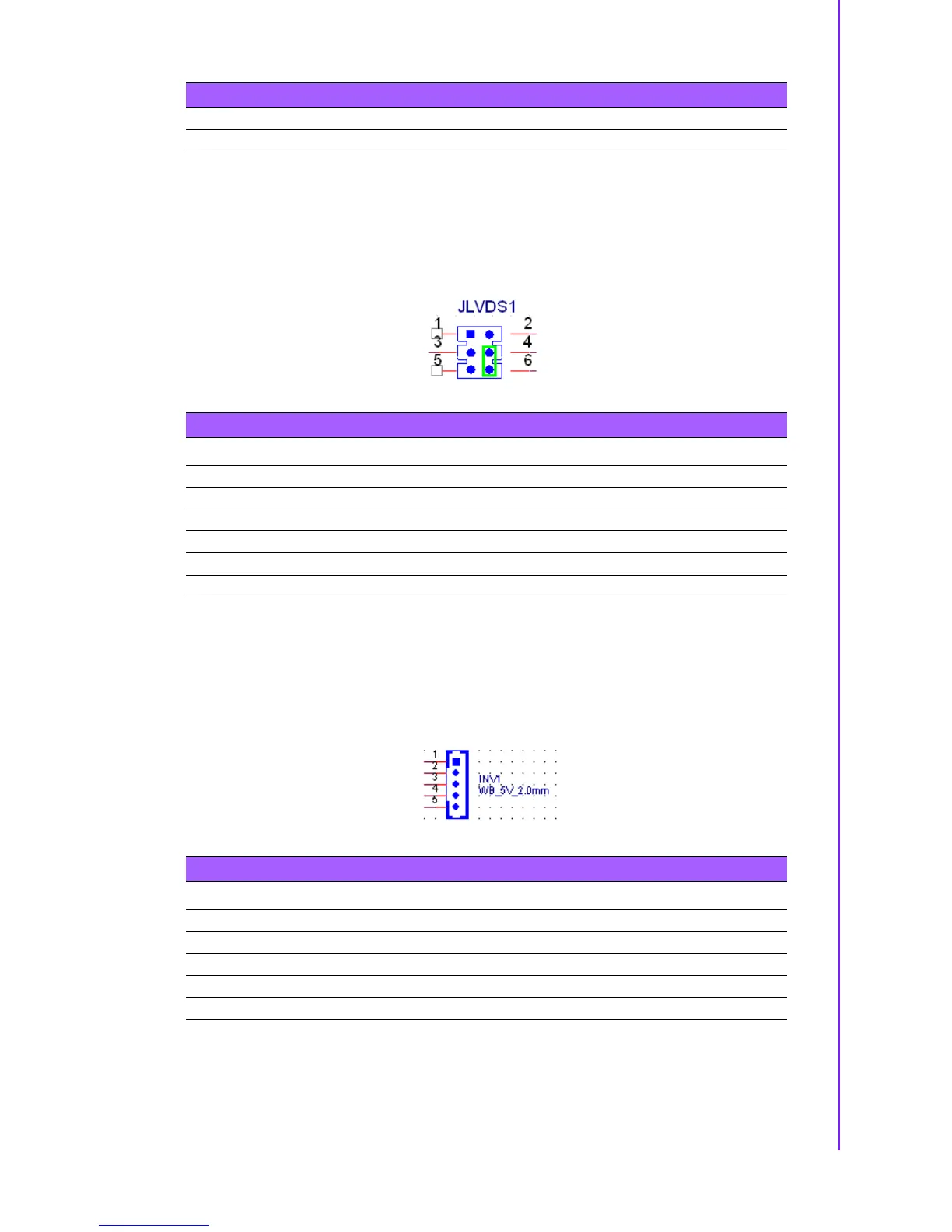

B.6 LVDS Panel Voltage Selection for LVDS1
Connector (JLVDS1)
Note: +3.3V (JLVDS1, 4-6 short)
+5V (JLVDS1, 2-4 short)
+12V (JLVDS1 3-4 short)
B.7 Inverter Connector for LVDS1 (INV1)
13 LA_DATAN1 27 LA_CLKP
14 LB_DATAN1 28 LB_CLKP
Table B.5: LVDS Connector
Table B.6: LVDS P)anel Voltage Selection for LVDS1 Connector
Pin Name
1NC
2+5V
3 +12V
4 LVDS panel power input
5 NC
6 +3.3V
Table B.7: Inverter connector for LVDS1 ( 1x 5 Pin Header)
Pin Name
1+12V
2GND
3 LVDS1_Backlight Enable
4 LVDS1_Brightness PWM Control
5+5V
