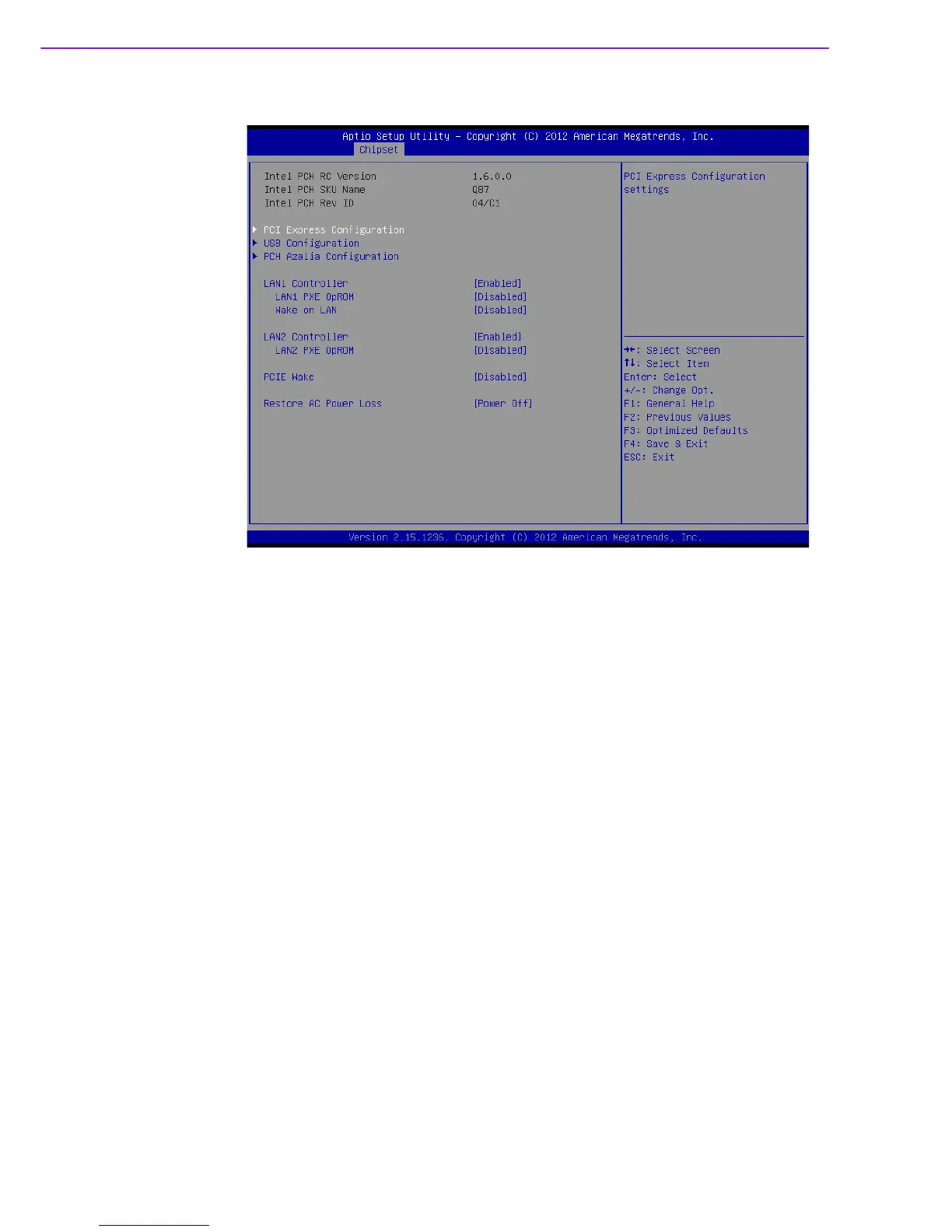

3.3.1 PCH-IO Configuration
 PCI Express Configuration
Details of PCI Express items. (See 3.3.1.1)
 USB Configuration
Details of USB items. (See 3.3.1.2)
 PCH Azalia Configuration
Details of PCH azalia items. (See 3.3.1.3)
 LAN 1controller [ Enabled ]
Enable or disable the LAN 1 controller.
– LAN 1 PXE OpROM [ Disabled ]
Enable or disable the LAN 1 option-ROM.
– Wake on LAN [ Disabled ]
Enable or disable integrated LAN to wake the system. (The Wake On LAN
cannot be disabled if ME is on at Sx state)
 LAN 2 controller [ Enabled ]
 Enable or disable the LAN 2 controller.
– LAN 2 PXE OpROM [ Disabled ]
Enable or disable the LAN 2 option-ROM.
 PCIE Wake [ Disabled ]
Enable or disable PCIE to wake the system from S5.
 DeepSx Power Policies
Enable or Disable Deep Sleep mode.
 Restore AC Power Loss [ Power Off ]
This item allows users to select off, on and last state.
