Advantech AIMB-584 - LVDS Connector (LVDS1)

AIMB-584 User Manual 104

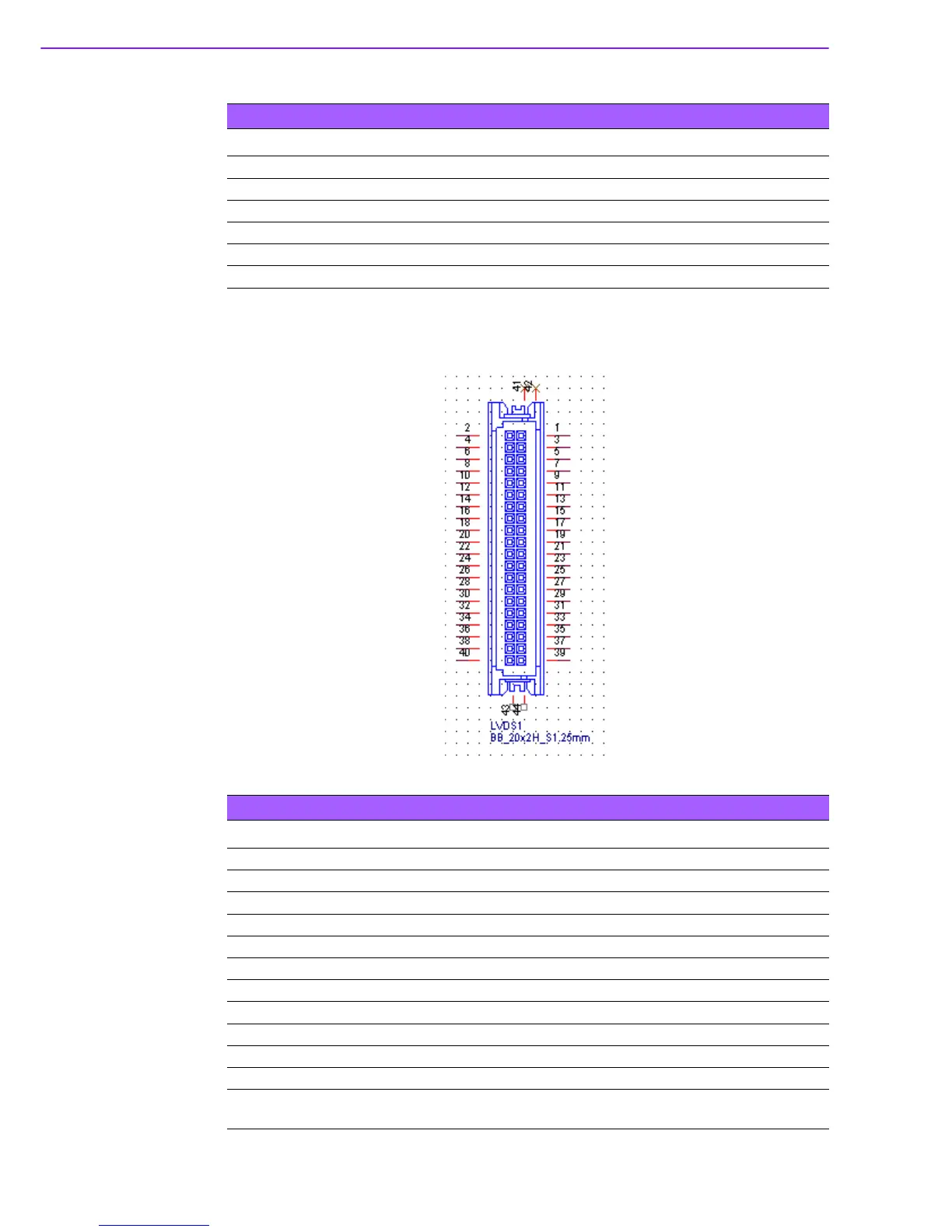

B.5 LVDS Connector (LVDS1)
Table B.4: COM3_RI selection Jumper Setting ( 2 x 3 Pin Header)
Pin Pin Name
1 COM3_RI# to chipset
2 COM3_RI# from COM3456
3 COM3_RI# from COM3456
4+5 V
5 +12 V
6 COM3_RI# from COM3456
Table B.5: LVDS Connector
Pin Pin Name Pin Pin Name Pin Pin Name
1 VDD_LVDS1 (*) 15 LA_DATAP1 29 GND
2 VDD_LVDS1 (*) 16 LB_DATAP1 30 GND
3 LVDS1_Detect# 17 GND 31 LVDS_DDC_CLK
4 GND 18 GND 32 LVDS_DDC_DAT
5 VDD_LVDS1 (*) 19 LA_DATAN2 33 GND
6 VDD_LVDS1 (*) 20 LB_DATAN2 34 GND
7 LA_DATAN0 21 LA_DATAP2 35 LA_DATAN3
8 LB_DATAN0 22 LB_DATAP2 36 LB_DATAN3
9 LA_DATAP0 23 GND 37 LA_DATAP3
10 LB_DATAP0 24 GND 38 LB_DATAP3
11 GND 25 LA_CLKN 39 L_BKLTEN
12 GND 26 LB_CLKN 40
VCON (VESA / JEIDA
select)
