25 AIMB-584 User Manual
Chapter 2 Connecting Peripherals

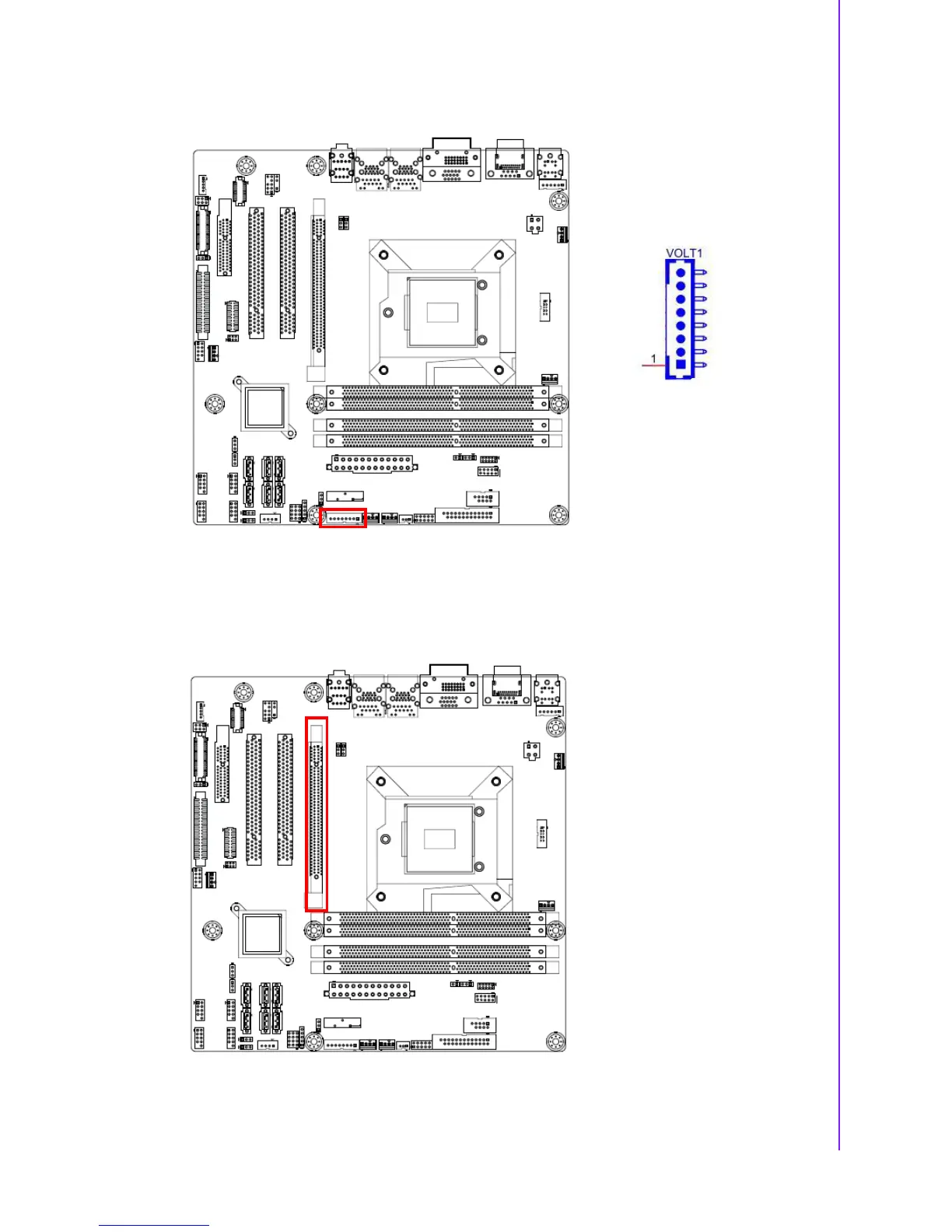

2.14 8-pin Alarm Board Connector (VOLT1)
VOLT1 connects to the alarm board on the chassis. These alarm boards give warn-
ings if a power supply or fan fails, or if the chassis overheats.
2.15 PCI express x16 slot
AIMB-584 provides a PCIe x16 slot for users to install add-on cards when their appli-
cations require higher graphic performance than the CPU embedded graphics con-
troller can provide.
