AIMB-584 User Manual 108

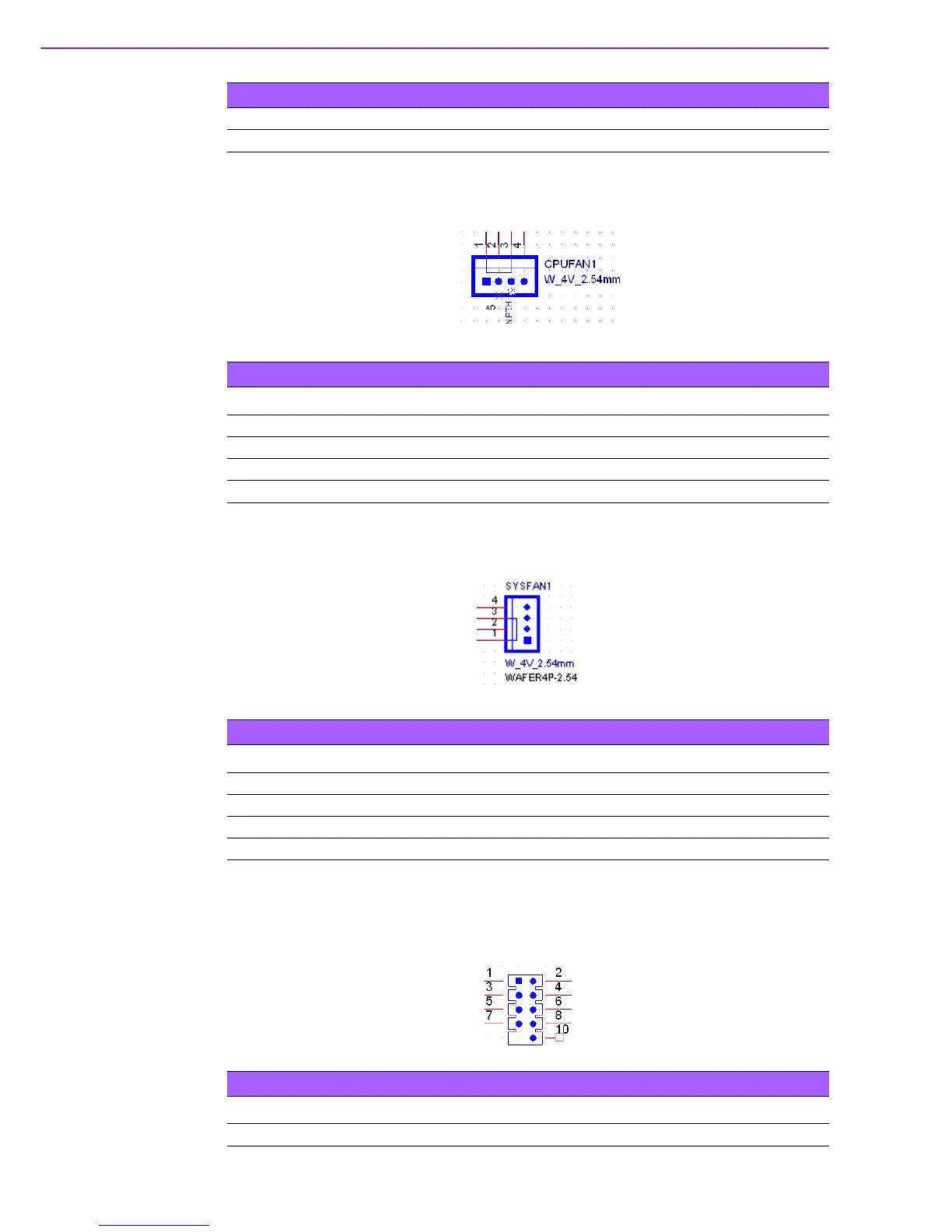

B.12 CPU FAN Connector (CPUFAN1)
B.13 SYS FAN Connector (SYSFAN1~4)
B.14 USB 2.0 Pin Header (USB56, USB78, USB910,
USB1112)
6RX+
7GND
Table B.11: SATA Connector
Table B.12: CPU FAN Pin Header
Pin Pin Name
1GND
2 CPU_FAN_POWER (+12V)
3 CPU_FAN_SPEED
4NC
Table B.13: System Fan Connector (1 x 4 Pin Header)
Pin Pin Name
1GND
2 SYS_FAN_POWER (+12V)
3 SYS_FAN_SPEED
4 NC
Table B.14: Two-port USB 2.0 Header (2 x 5 Pin Header)
Pin Pin Name Pin Pin Name
1 +5V or +5V_DUAL (*) 2 +5V or +5V_DUAL (*)
