19 AIMB-584 User Manual
Chapter 2 Connecting Peripherals
2.7 PS/2 Keyboard and Mouse Connector (KBMS1)/
External PS/2 Keyboard and Mouse Connector
(KBMS2)

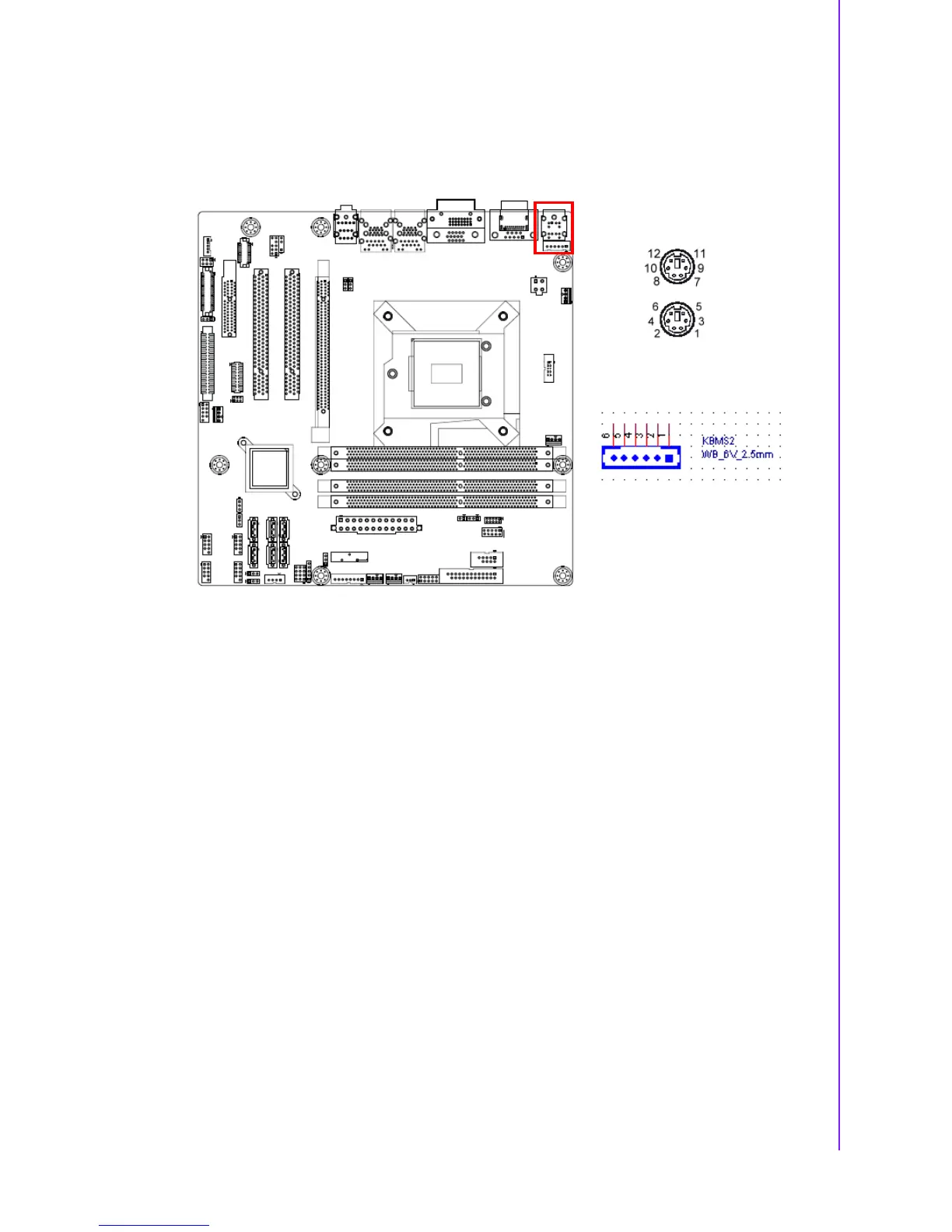

Two 6-pin mini-DIN connectors (KBMS1) on the motherboard provide connection to a
PS/2 keyboard and a PS/2 mouse, respectively. KBMS2 is for supporting the 2nd PS/
2 keyboard and PS/2 mouse by a cable P/N 1700018699.
