1.5 Board layout: Jumper and Connector Locations

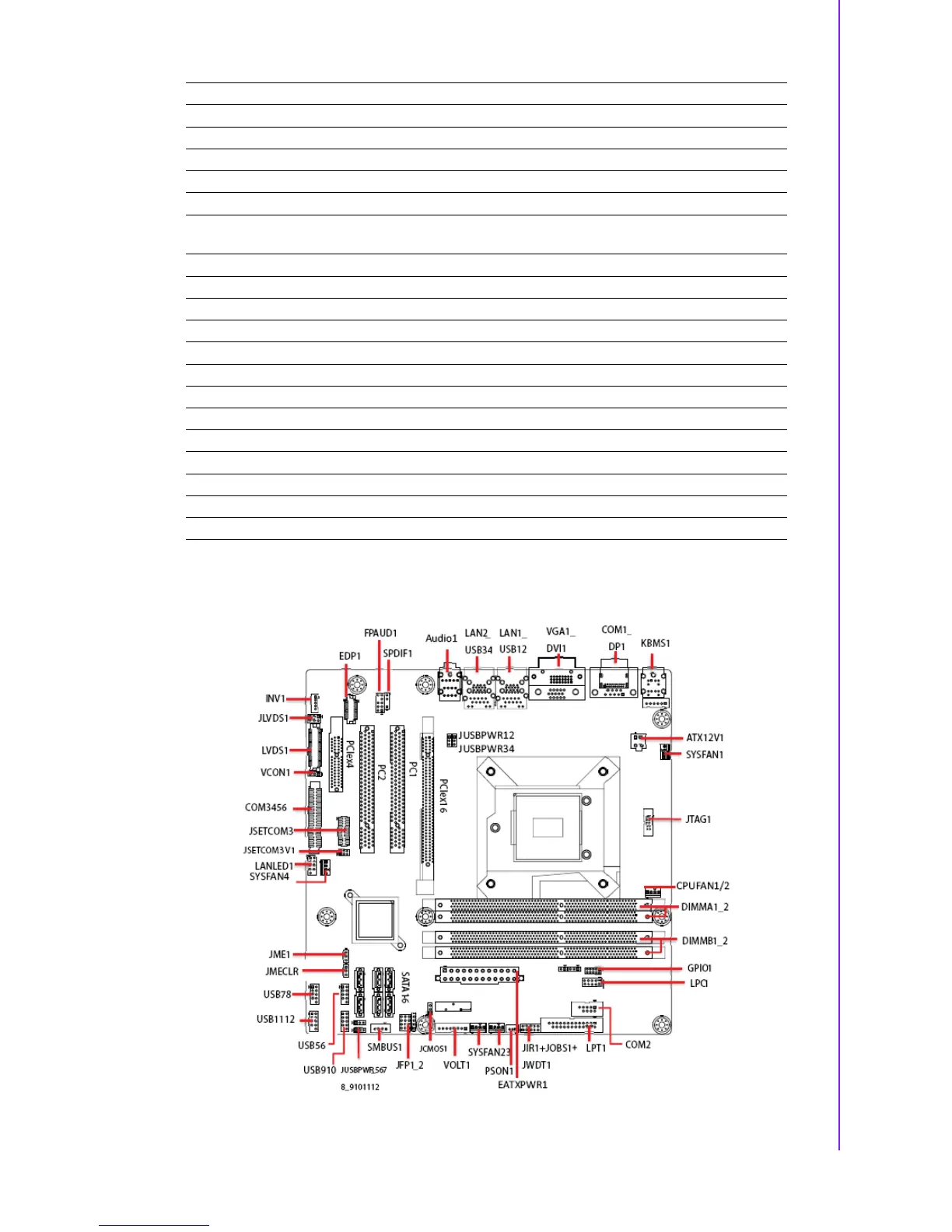

Figure 1.1 Jumper and Connector Location
SATA1-6 Serial III ATA connector
CPUFAN1 CPU FAN connector (4 pin)
SYS-FAN1/2/3/4 System FAN Power Connector (4 pin)
eDP1 eDP connector (2 x 10 pin header) (Optional)
LVDS1 LVDS connector
LPT1 Parallel port
KBMS1
PS/2 keyboard and Mouse connector; Cable length: 20
meter
KBMS2 On board external keyboard and Mouse connector
AUDIO1 Line Out, Mic IN connector
FPAUDIO1 Front Panel audio connector (FP_AU-DIO)
PSON1 AT(1-2) / ATX(2-3) (Default 2-3)
SPI_CN1 SPI flash programming connector
GPIO1 GPIO pin header (SMD pitch=2.0 mm)
SMBUS1 SMBUS expansion pin header 1 x 4 p
ATX12V1 ATX 12V Auxiliary power connector
EATXPWR1 ATX power connector
INV1 LVDS inverter
VOLT1 Voltage Display connector
SPDIF1 Digital Audio connector 4 x 1 header pitch = 2.54 mm
LPC1 Low pin count interface (2 x 7 pin header)
