Advantech AIMB-584 - Digital IO Connector (GPIO1); Table B.20:Printer Port Connectors

111 AIMB-584 User Manual
Appendix B Pin Assignments
T

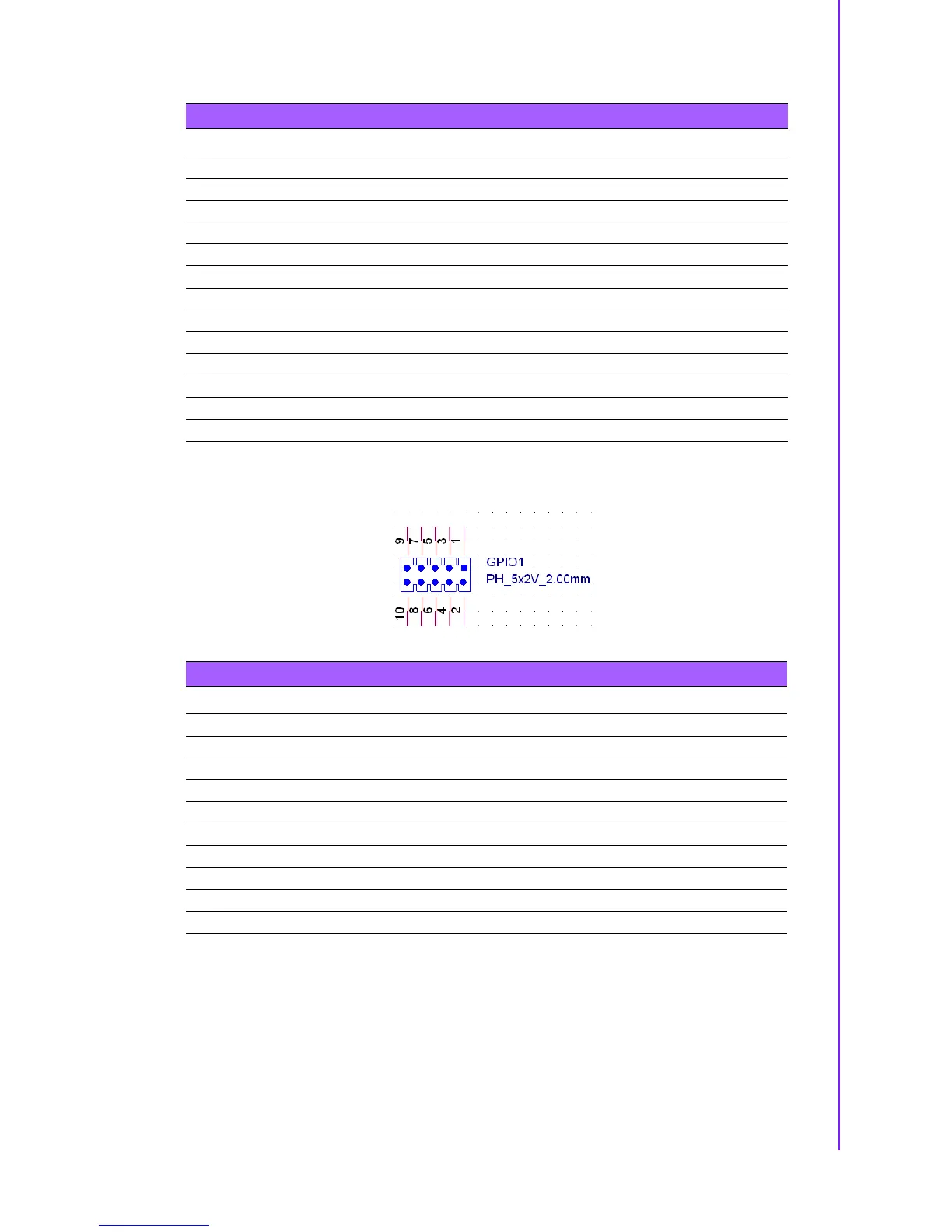

B.21 Digital IO Connector (GPIO1)
Table B.20: Printer Port Connectors
Pin Pin Name Pin Pin Name
1 LPT1_STB# 2 LPT1_AFD#
3 LPT1_PD0 4 LPT1_ERR#
5 LPT1_PD1 6 LPT1_INIT#
7 LPT1_PD2 8 LPT1_SLIN#
9 LPT1_PD3 10 GND
11 LPT1_PD4 12 GND
13 LPT1_PD5 14 GND
15 LPT1_PD6 16 GND
17 LPT1_PD7 18 GND
19 LPT1_ACK# 20 GND
21 LPT1_BUSY 22 GND
23 LPT1_PE 24 GND
25 LPT1_SLCT
Table B.21: Digital IO Connector (2 x 5 Pin Header)
Pin Pin Name
1 GPIO0 from GP70 of SIO
2 GPIO4 from GP74 of SIO
3 GPIO1 from GP71 of SIO
4 GPIO5 from GP75 of SIO
5 GPIO2 from GP72 of SIO
6 GPIO6 from GP76 of SIO
7 GPIO3 from GP73 of SIO
8 GPIO7 from GP77 of SIO
9 +5V_DUAL
10 GND
