Appendix B Pin Assignments

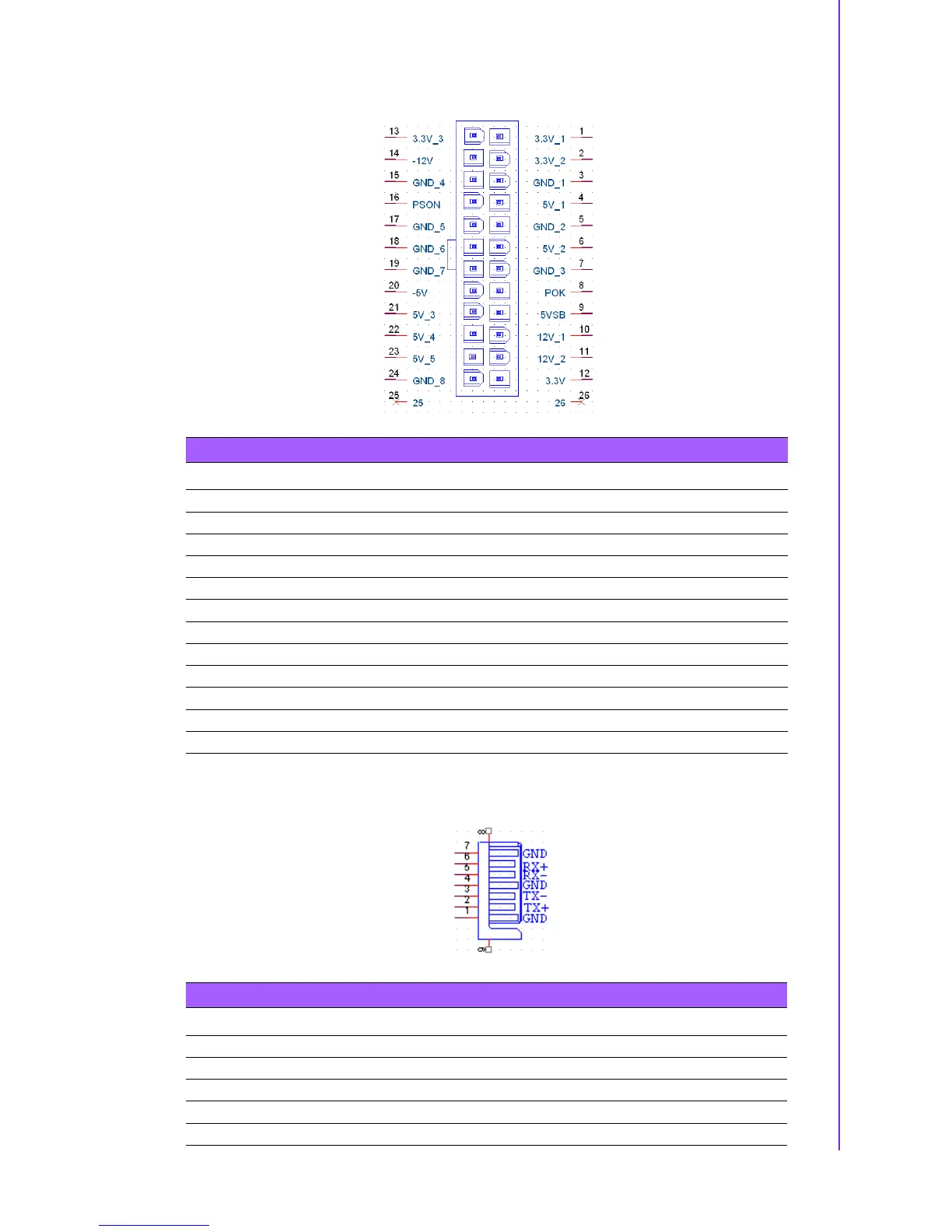

B.10 ATX 24 Pin Main Power Connector (ATXPWR1)
B.11 Serial ATA III (SATA 1 ~ 6)
Table B.10: ATX 20 Pin Main Power Connector
Pin Pin Name Pin Pin Name
1 +3.3V 13 +3.3V
2 +3.3V 14 - 12V
3 GND 15 GND
4 +5V 16 PS_ON#
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 ATXPG 20 -5V
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5
12 +3.3V 24 GND
Table B.11: SATA Connector
Pin Pin Name
1GND
2TX+
3TX-
4GND
5RX-
