AIMB-584 User Manual 20

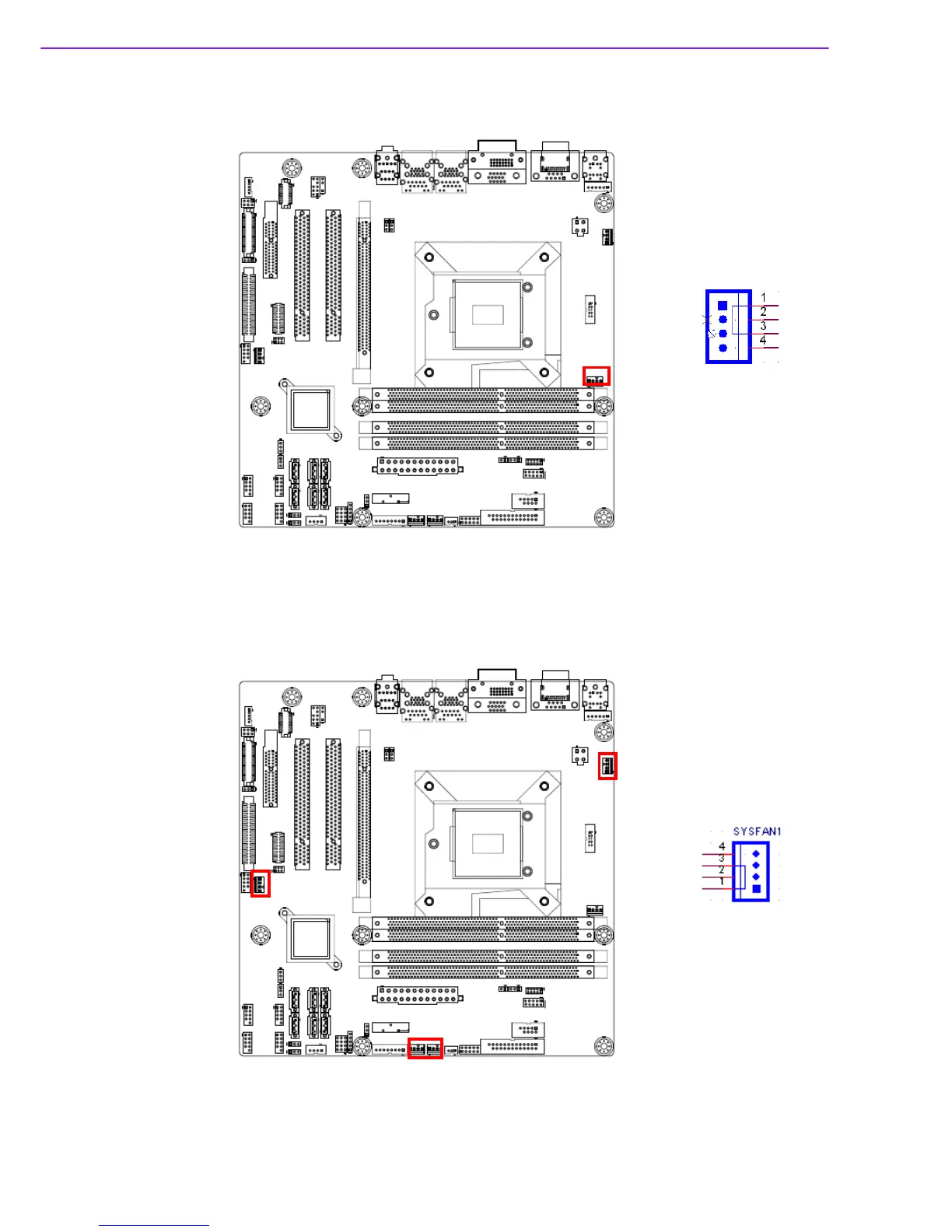

2.8 CPU Fan Connector (CPU_FAN1)
If a fan is used, this connector supports cooling fans of 500 mA (6 W) or less.
2.9 System FAN Connector (SYSFAN1/2/3/4)
If a fan is used, this connector supports cooling fans of 500 mA (6 W) or less.
