Advantech AIMB-584 - Connector (JUSBPWR12); USB POWER Selection for LAN1_USB34 Connector (JUSBPWR34); USB POWER Selection for USB56, USB78 Connector (JUSBPWR5678)

109 AIMB-584 User Manual
Appendix B Pin Assignments
Note: (*) Depends on Setting of JUSBPWR5678~JUSBPWR9101112

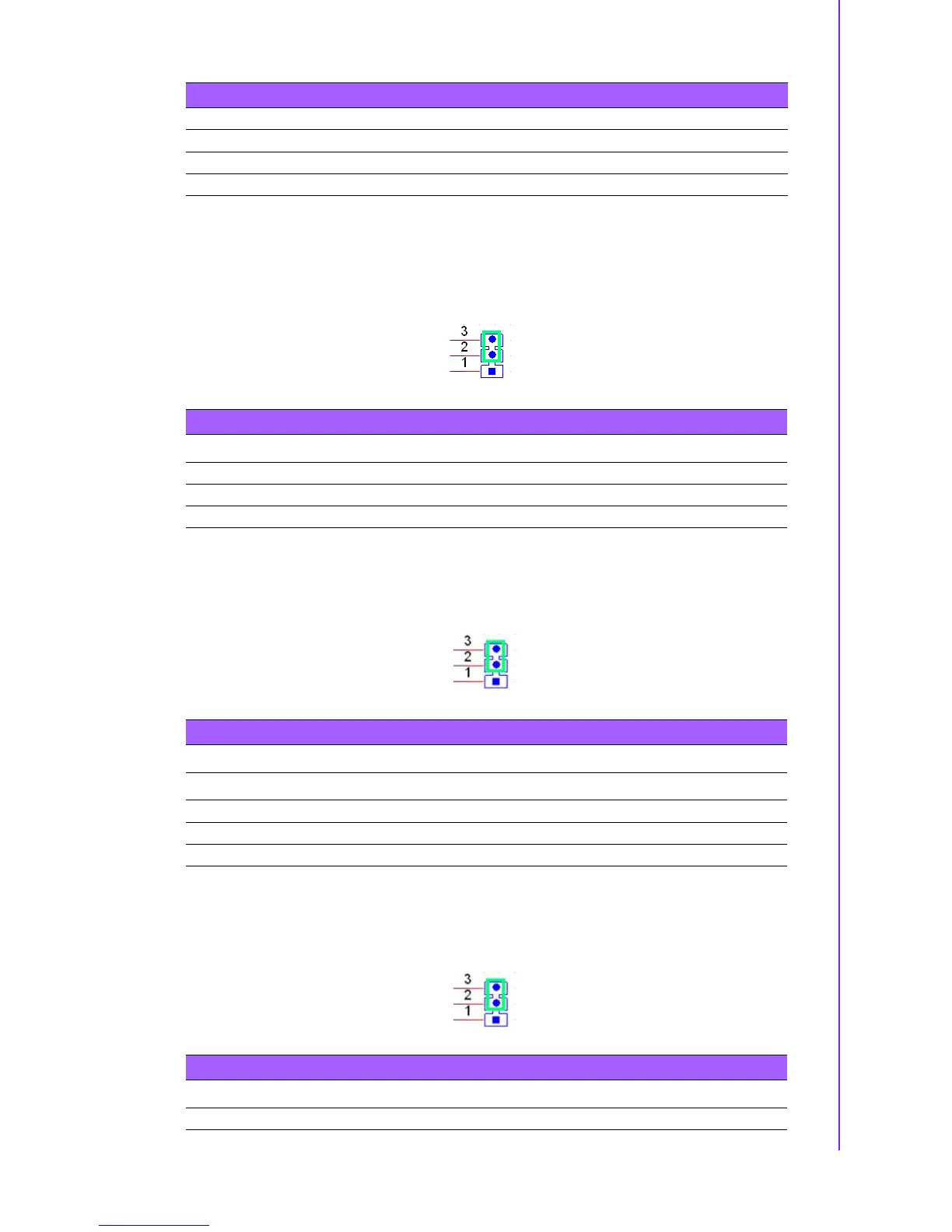

B.15 USB POWER Selection for LAN1_USB12
Connector and KBMS Connector (JUSBPWR12)
B.16 USB POWER Selection for LAN1_USB34
Connector (JUSBPWR34)
B.17 USB POWER Selection for USB56, USB78
Connector (JUSBPWR5678)
3 USB- 4 USB-
5 USB+ 6 USB+
7 GND 8 GND
10 NC
Table B.14: Two-port USB 2.0 Header (2 x 5 Pin Header)
Table B.15: USB Header Power Switch for LAN1_USB12 Ports
Pin Pin Name
1 +5V_DUAL
2 USB12/KBMS 5VPower Input
3+5V
Table B.16: USB Header Power Switch for LAN1_USB34 Ports
Description USB POWER selection for LAN2_USB34
Pin Pin Name
1 +5V_DUAL
2 USB34 5V Power Input
3+V5
Table B.17: USB Header Power Switch for USB56, USB78 Ports
Pin Pin Name
1 +5V_DUAL
