AIMB-584 User Manual 50
– Serial Port [ Enabled ]
– Device Settings: IO=3F8h; IRQ =4
– Change Settings [ Auto ]
To select an optimal setting for serial port 1.

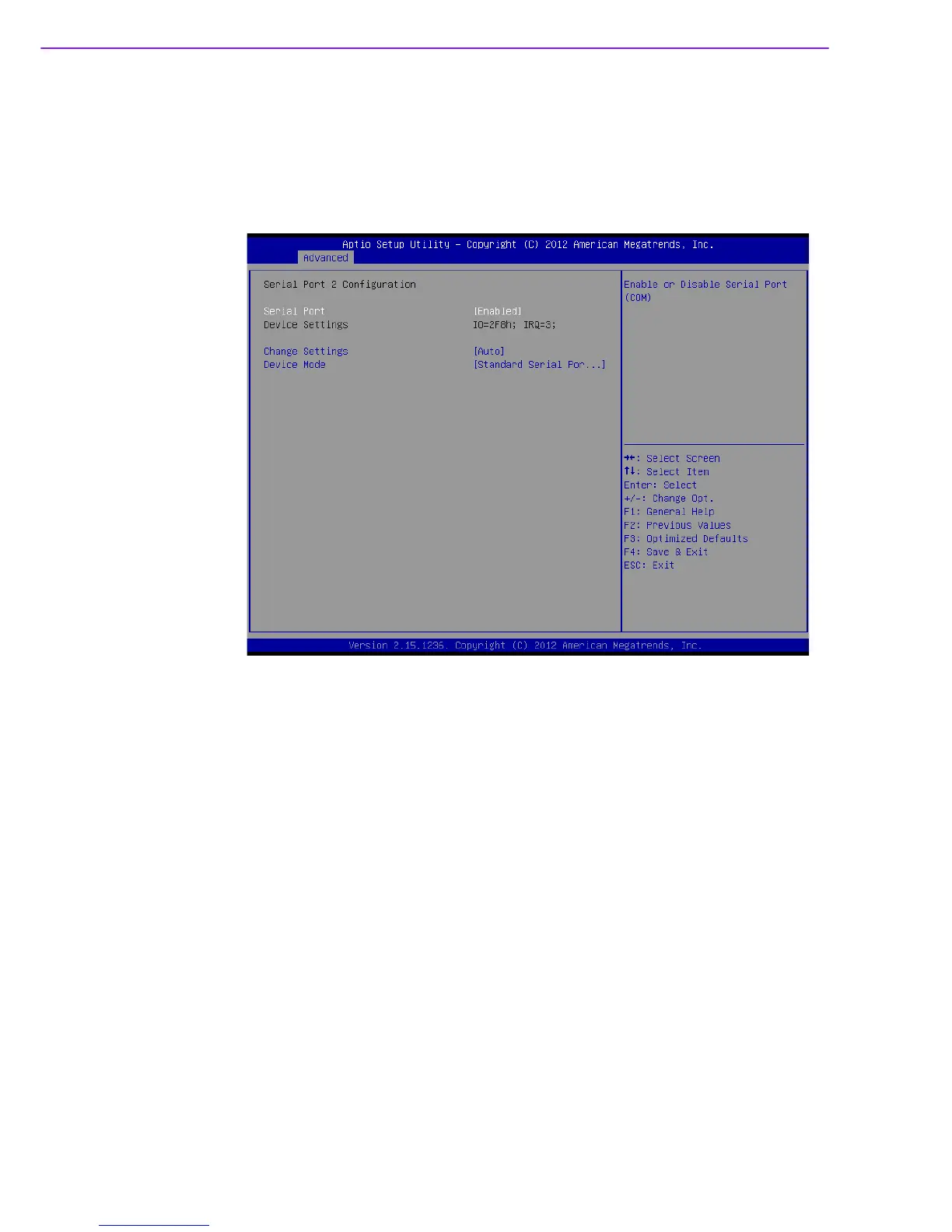

Serial Port 2 Configuration
– Serial Port [ Enabled ]
– Device Settings: IO=378h; IRQ =3
– Change Setting [ Auto ]
To select an optimal setting for serial port 2.
– Device Mode
Serial port 2 could be selected as “Standard serial port mode”, “IrDA 1.0 (HP
SIR) mode”, or “ASKIR mode”.
