53 AIMB-584 User Manual
Chapter 3 BIOS Operation
CPU FAN Mode [ SMART FAN IV Mode ]
The item shows you CPU temperature and fan speed (PWM) information.
SYSFAN Mode [ SMART FAN IV Mode ]
The item shows you system temperature and fan speed (PWM) information.

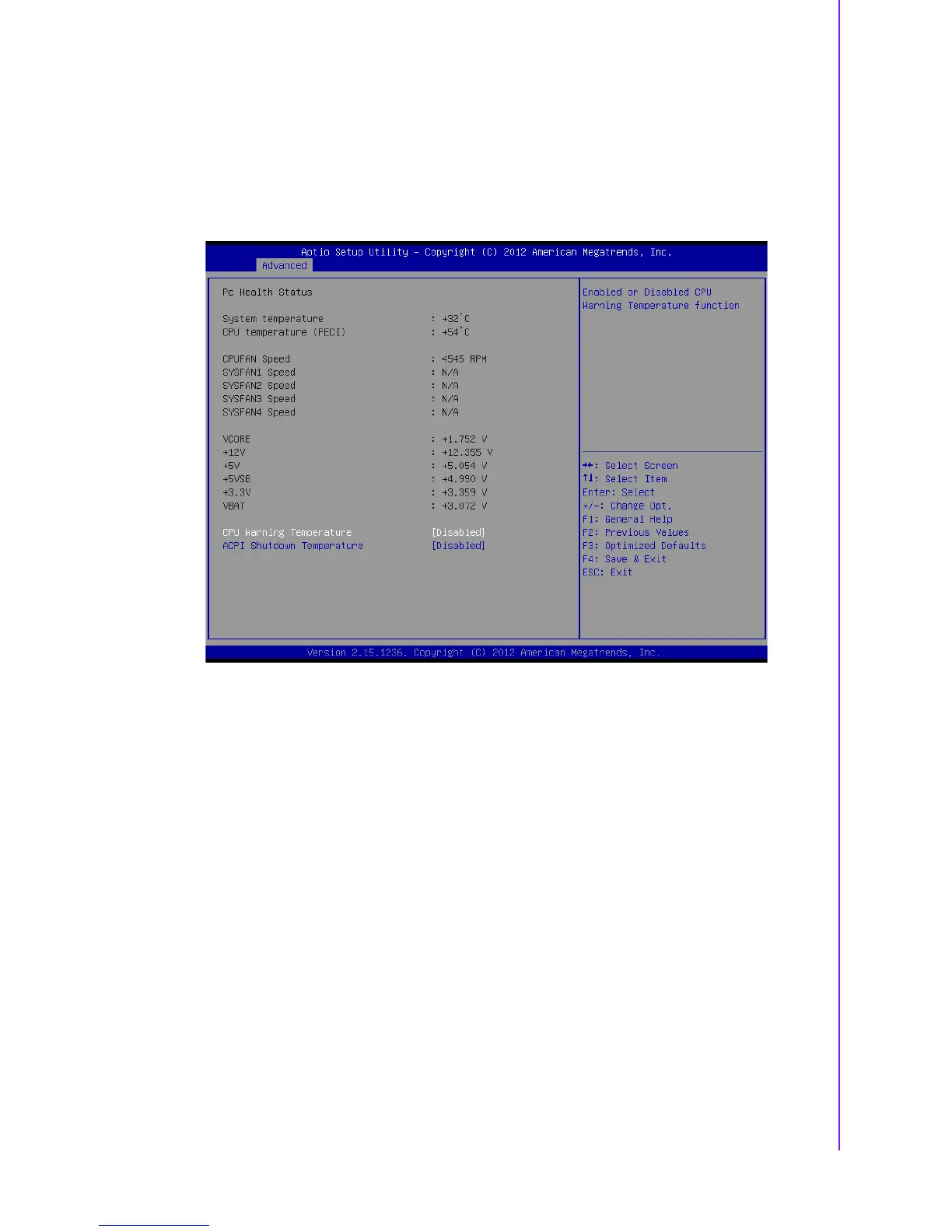

PC Health Status
– CPU Warning Temperature [ Disabled ]
Use this to set the CPU warning temperature threshold. When the system
reaches the warning temperature, the speaker will beep.
– ACPI Shutdown Temperature [ Disabled ]
Use this to set the ACPI shutdown temperature threshold. When the system
reaches the shutdown temperature, it will be automatically shut down by
ACPI OS to protect the system from overheating damage.
