AES 7707 RF Subscriber 10
Part No. 40-7707 Rev. 3a 10/23/2017
Exposing the subscriber to temperatures below 32°F (0°C) or above 122°F (49°C) can damage the backup Gel-Cell
battery. Exposure to extreme temperatures can cause unexpected operation of the subscriber electronics.
Exposing the subscriber electronics to water or moisture environments (rain, shower, bath, pool, sauna, etc.) can
cause damage and unexpected operation.
Electrical Supply
For power supplied to the subscriber from an outlet, connect to an outlet on a dedicated branch circuit that is not
controlled by a switch. Refer to the Power Options section.
Wiring Specifications
The plug-in transformer must be placed in Transformer Enclosure AES P/N 1640-ENCL (available separately).
The wiring from the low-voltage output of the plug-in transformer enclosure to the subscriber enclosure must be
enclosed in conduit.
Power Options

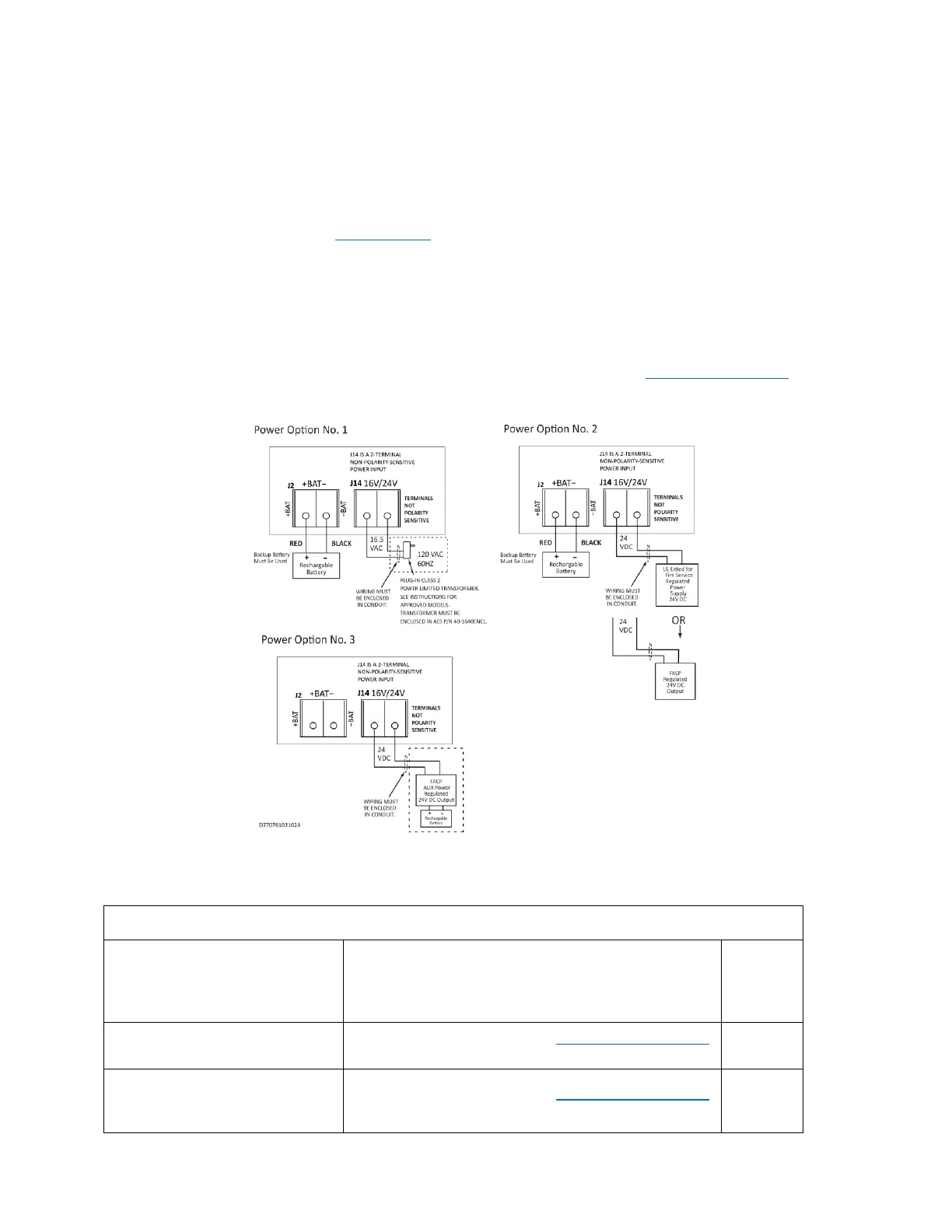

The following diagram shows three options to supply the subscriber with power. The Flexible Power Option section
on page 40 provides instructions on how to configure the Subscriber software for the power option used.
Battery Size
Battery size requirements are listed in the following table:
See Current Consumption under Technical Specifications
on page 8 and 7711 Installation and Operation Manual
See Current Consumption under Technical Specifications
on page 8 and 7712 Installation and Operation Manual
