AES 7707 - 7 System Configuration; Compatible Device List; Compatible Device Installation and Field Wiring Connections; Digital Dialer Interface

AES 7707 RF Subscriber 19
Part No. 40-7707 Rev. 3a 10/23/2017
7. System Configuration
7.1 Compatible Device List
Zone Input
 7711 8 zone conventional EOL input
 7712 8 zone (four EOL input and four reverse polarity input)

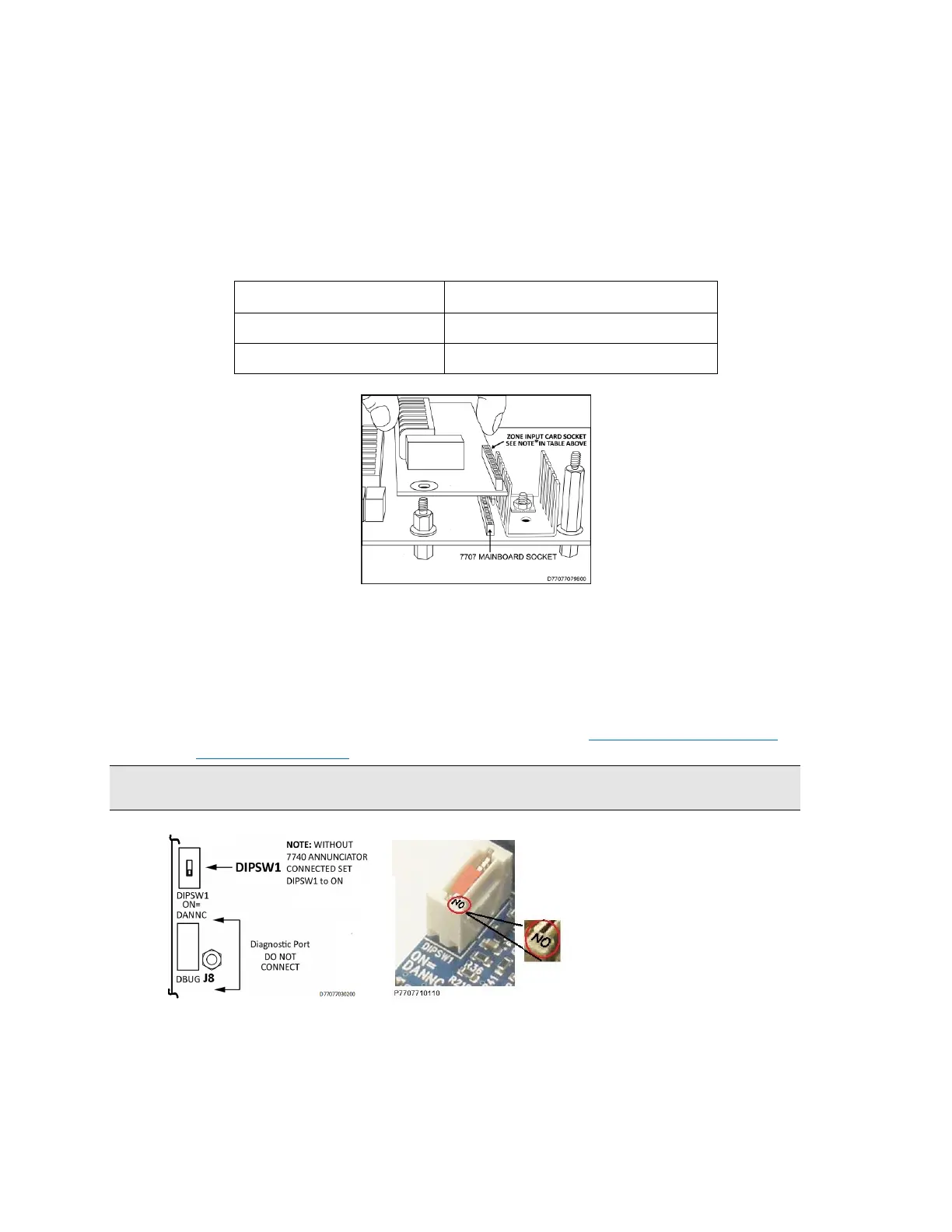

The 7707 will accept a single zone input card mounted in the Mainboard socket or stacked zone input cards using
the 7707 Mainboard Socket and Zone Input Card Socket. The table below shows input card and whether a Zone
Input Card Socket is present on the card.
7707 Mainboard Socket
*Zone Input Card Socket Present
7711
No
7712
No
Digital Dialer Interface
 A single 7794A IntelliPro
Compatible Device Installation and Field Wiring Connections
 7711 8 zone conventional EOL input: Refer to 7711 Install Manual AES, Part No. 40-7711
 7712 8 zone input (four EOL input and four reverse polarity input): Refer to 7712 Install Manual
AES, Part No. 40-7712
 7740 Remote Annunciator: Refer to page 44 of this document AES Model 7740 Annunciator
Installation Instructions.
IMPORTANT! : When no 7740 Remote Annunciator is installed, set DIPSW1 to “ON”. The ON side switch
position is shown in the photo below.
1.
